网络交换机

MSN4600-CS2RC

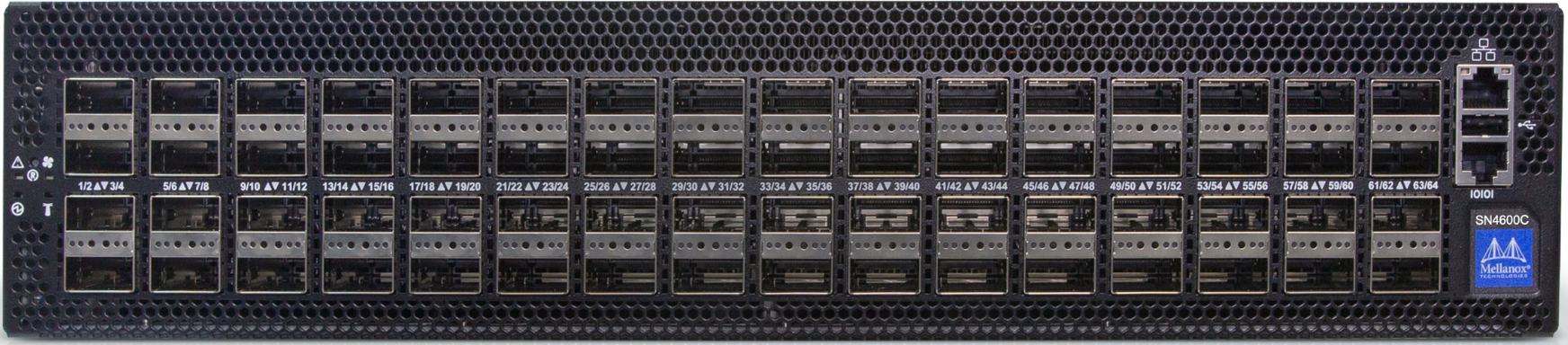

NVIDIA MSN4600-CS2RC 100GbE 2U Ethernet Switch

P/N:MSN4600-CS2RCSKU: 920-9N302-00R7-0C0SwitchInfra item:7582品牌: NVIDIA
规格参数

MSN4600-CS2RC specifications

速率：100GbE; Connector: QSFP28; Form Factor: 2U; Airflow: C2P.
端口64x 100G QSFP28
Power supplies2 × AC
重量14.64 kg
封装类型2U / 2U, standard depth
imageNoteManufacturer reference image. Included components and condition follow the selected item.
品牌NVIDIA
型号MSN4600-CS2RC
AirflowC2P (connector to power)
ProtocolEthernet
Rack kitIncluded in ordering description
成色全新
接口QSFP28
速率100GbE
料号MSN4600-CS2RC
Switch ASICNVIDIA Spectrum-3
Uplink portsPorts assigned by topology; no separate fixed uplink bank
产品系列SN4600C
Access/data ports64 × QSFP28, 100GbE
Operating humidity10–85%, non-condensing
工作温度0–40°C
Manufacturer lifecycleMP (Mass Production)
Dimensions (H × W × D)88 × 428 × 566.4 mm
Network operating systemCumulus Linux
Typical power with passive cables (ATIS)466 W

下单前确认

  • 确认准确的 SKU、料号、规格选项与数量。
  • 确认主机平台、端口、电气接口与固件兼容要求。
  • 付款前确认库存、交期、目的地与适用售后条款。
产品描述

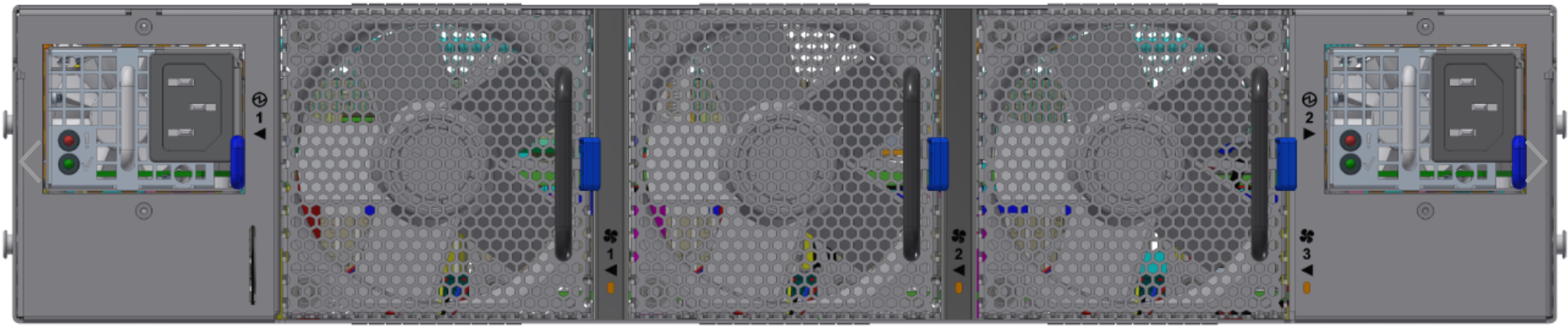

A 2U, 64-port 100GbE Cumulus Linux switch built on Spectrum-3. The CS2RC configuration uses QSFP28 cages, dual AC power supplies and connector-to-power airflow. NVIDIA documents the SN4600C family in DGX BasePOD 管理 and Ethernet-storage designs.

产品问答

What airflow and power configuration does CS2RC specify?

The exact ordering row specifies C2P airflow and two AC power supplies. The forward-airflow CS2FC is a different order code. Match fans and supplies to the chassis and airflow requirement.

How is SN4600C used in NVIDIA’s DGX BasePOD guide?

The H200/H100 guide uses a pair of SN4600C switches for in-band management and provisioning, with bonded host connections and MLAG. The guide identifies the model family, not the CS2RC airflow suffix.

Is the typical 466 W figure a rack-power maximum?

No. The SN4600C figure is typical power measured with passive cables under the stated ATIS condition. Facilities sizing must account for the intended configuration, optics, power feeds and redundancy rather than treating that typical figure as a maximum.

What software and lifecycle does NVIDIA list for CS2RC?

The ordering table specifies Cumulus Linux and marks CS2RC MP (Mass Production). This does not establish the supplied unit’s installed release, software entitlement, stock or warranty. Preserve those as separate commercial and deployment checks.

Can SN4600C have a documented storage-network role?

NVIDIA’s BasePOD hardware overview lists SN4600C for Ethernet-attached storage and QM9700 for the alternative InfiniBand storage fabric. This establishes a design option, not a guarantee for every storage array or workload. Validate the storage vendor’s networking requirements.

Is MSN4600-CS2RC the 200GbE SN4600 model?

No. CS2RC is the 100GbE SN4600C configuration with 64 QSFP28 cages. The 200GbE VS2RC model is a separate order code with QSFP56 and is listed in the legacy EOL section.
