A quotation can include every high-speed switch and still leave the installation team unable to complete the rack. The missing item may be inexpensive—a cord, rail or console adapter—but its absence can block acceptance just as effectively as a missing switch.
The solution is not to add a generic accessories bundle. It is to connect each supporting item to an installation or recovery task.
1. Management access that survives the intended outage
Count management and console interfaces separately from production links. Include the required management switch ports, approved cables and authorized access path. Decide what must remain reachable when a production switch, fabric or service network is unavailable.
A management VLAN may be appropriate for some requirements, but it does not by itself demonstrate an independent recovery path. Test access from the location used by administrators, including the agreed failure scenario.
2. Power delivery, not just power-supply count
Record the device input, approved supply variant, cord and PDU outlet. Map each input to its intended feed and calculate the required operating state after a defined failure. Two supplies connected to the same failed source do not provide independent source resilience.
Specify who verifies the rack’s electrical installation. Equipment documentation and qualified site review take precedence over a generic accessory description.
3. The correct thermal variant
Fans, power supplies and optical modules can have installation-specific thermal requirements. Preserve full ordering identifiers and airflow markings instead of shortening them to a product-family name. NVIDIA’s documentation distinguishes interconnect cooling forms and provides model-specific replacement procedures; visually similar parts are not automatically interchangeable. R01R09
Receiving inspection should compare the actual labels with the approved list before equipment enters a maintenance window.
4. Rails, retention and service space
A chassis that fits the rack width may still lack its approved rail kit, retention hardware, blanking parts or sufficient cable service space. Check the actual cabinet depth and installation method. Include room to remove modules and disconnect cables without disturbing unrelated links.
The relevant hardware manual is the reference for the installation, not a photograph of a fully populated rack. R52
5. Software and control-plane ownership
Separate physical appliances from the licenses, subscriptions or supported software required for their intended role. In an InfiniBand design, for example, record who operates subnet management and what management functionality is included. Do not assume an appliance purchase includes every software entitlement or a ready-to-run configuration. R52
Retain the agreed version baseline, configuration archive and support responsibility alongside the hardware inventory.
6. Spares matched to installed equipment
A spare is useful only when its record identifies what it can replace. Link each spare to an installed configuration, approved replacement procedure and any required software or airflow conditions.
| Completion question | Document that answers it |
|---|---|
| Can technicians install it? | Rack, power, cooling and mounting schedule |
| Can administrators recover it? | Management map and configuration archive |
| Can operations maintain it? | Installed-to-spare compatibility record |
| Can the customer accept it? | Requirement-based test and handover record |
The best final BOM is therefore a compact model of the working system. Every line should explain what it connects, supports or restores. Before requesting a quote, provide the rack environment and recovery requirements as well as the production port count.

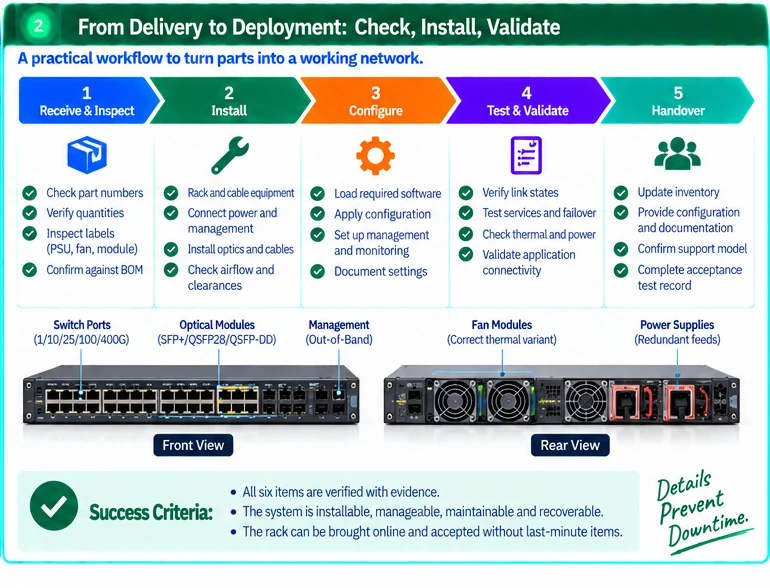

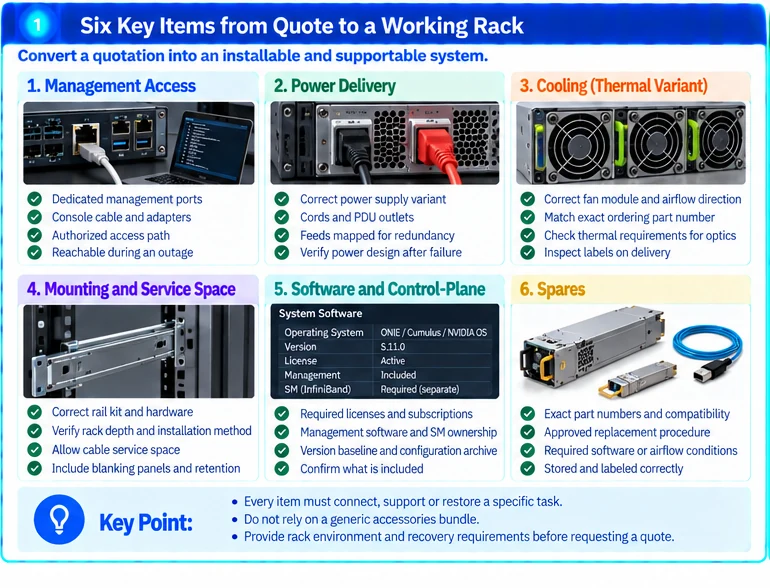

Engineering illustrations
These figures illustrate the design concepts discussed here. They are not measured results, certified configurations or a supplied-equipment list.
