MCX623106AN-CDAT

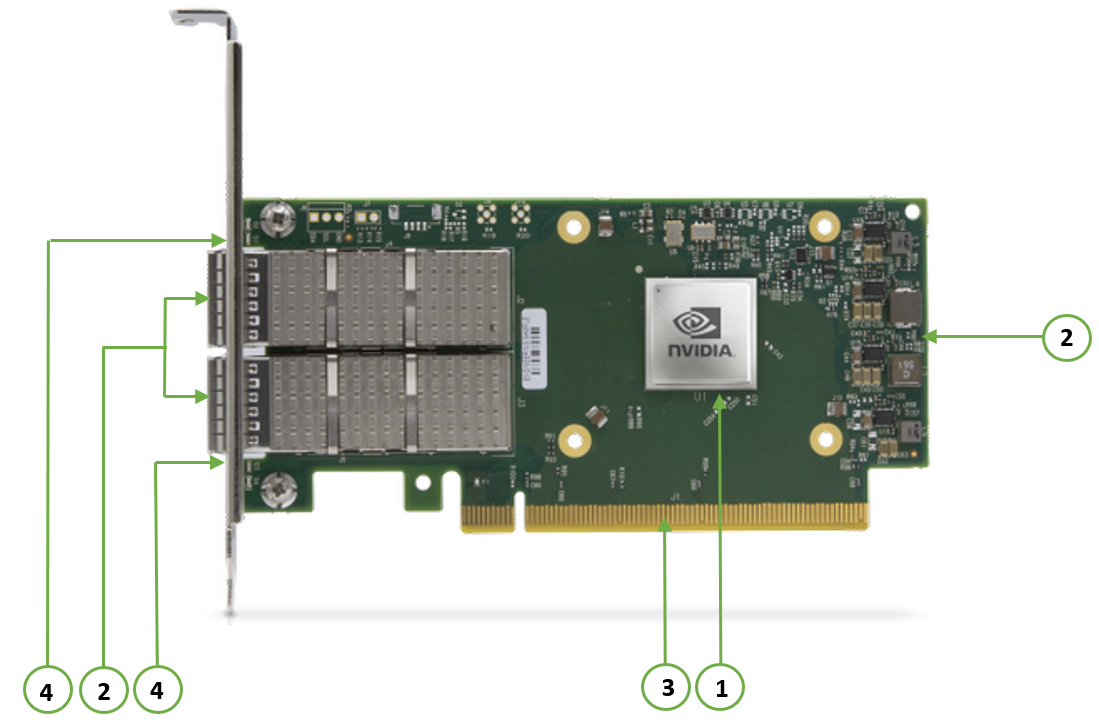

NVIDIA MCX623106AN-CDAT 100GbE Network Adapter

P/N:MCX623106AN-CDATNVIDIA OPN: 900-9X6AG-0056-ST1SwitchInfra item:7550品牌: NVIDIA
规格参数

MCX623106AN-CDAT specifications

速率：100GbE; Connector: QSFP56; PCIe Interface: PCIe 4.0 x16; Ports: Dual-port.
料号MCX623106AN-CDAT
Host interfacePCIe 4.0 x16
Port count2
接口QSFP56
封装类型HHHL PCIe card
imageNoteManufacturer reference image. Included components and condition follow the selected item.
品牌NVIDIA
型号MCX623106AN-CDAT
端口Dual-port
cryptoNo
familyConnectX-6 Dx
categoryethernet_nic
成色全新
速率100GbE
protocolsEthernet
Secure bootNo
PCIe InterfacePCIe 4.0 x16
Speed or compute100 GbE
Airflow directionHeatsink to port
Lifecycle literalAvailable ordering table; no explicit phase
Ports or connector2 QSFP56
Canonical order code900-9X6AG-0056-ST1
Card dimensions (mm)142.0 x 68.9
Airflow lfm at 55c passive550
Maximum power w gen4 passive26.64
Typical power w gen4 passive19.52
Ethernet supported rates (Gb/s)1, 10, 25, 40, 50, 100
Operating temperature (degrees C)0 to 55

下单前确认

  • 确认准确的 SKU、料号、规格选项与数量。
  • 确认主机平台、端口、电气接口与固件兼容要求。
  • 付款前确认库存、交期、目的地与适用售后条款。
产品描述
MCX623106AN-CDAT is a ConnectX-6 Dx Ethernet adapter with two QSFP56 ports and a PCIe 4 x16 host interface. Its exact specification supports Ethernet rates through 100 Gb/s and explicitly disables both hardware crypto and secure boot. The HHHL board measures 142.0 by 68.9 mm. Select this AN variant when its security configuration matches the platform requirement; do not substitute an AS, AC, AE or single-port 105 model based on the ConnectX-6 Dx family name alone.

产品问答

Does the AN variant include secure boot or hardware crypto?

No. The exact model-specific section explicitly disables both. AS enables secure boot without crypto; AC and AE have other security combinations.

Is it the single-port 100 GbE card?

No. MCX623106AN-CDAT has two QSFP56 ports. MCX623105 variants are a separate single-port design.

How should the power figures be interpreted?

The exact table gives 19.52 W typical and 26.64 W maximum at PCIe Gen 4 with passive cables. Active-module consumption is additional under the documented formula; these are not universal host-system power figures.

What cooling condition is documented?

At55°C the table specifies 550 LFM from heatsink to port with passive cables and 700 LFM for its listed 2.5 W active-module condition. Confirm the actual optic thermal design and server airflow.

Does QSFP56 establish 200 GbE support for this code?

No. This exact dual-port 106 CDAT model lists Ethernet rates up to 100 Gb/s. Connector family alone does not establish an enabled rate.

Can a 5G video-pipeline case prove this exact SKU’s performance?

No. The cited Mavenir/NVIDIA integration is a ConnectX-6 Dx family validation with its own software and workload. It informs offload evaluation but does not identify this exact ordering code or guarantee its application throughput.
