1 / 2

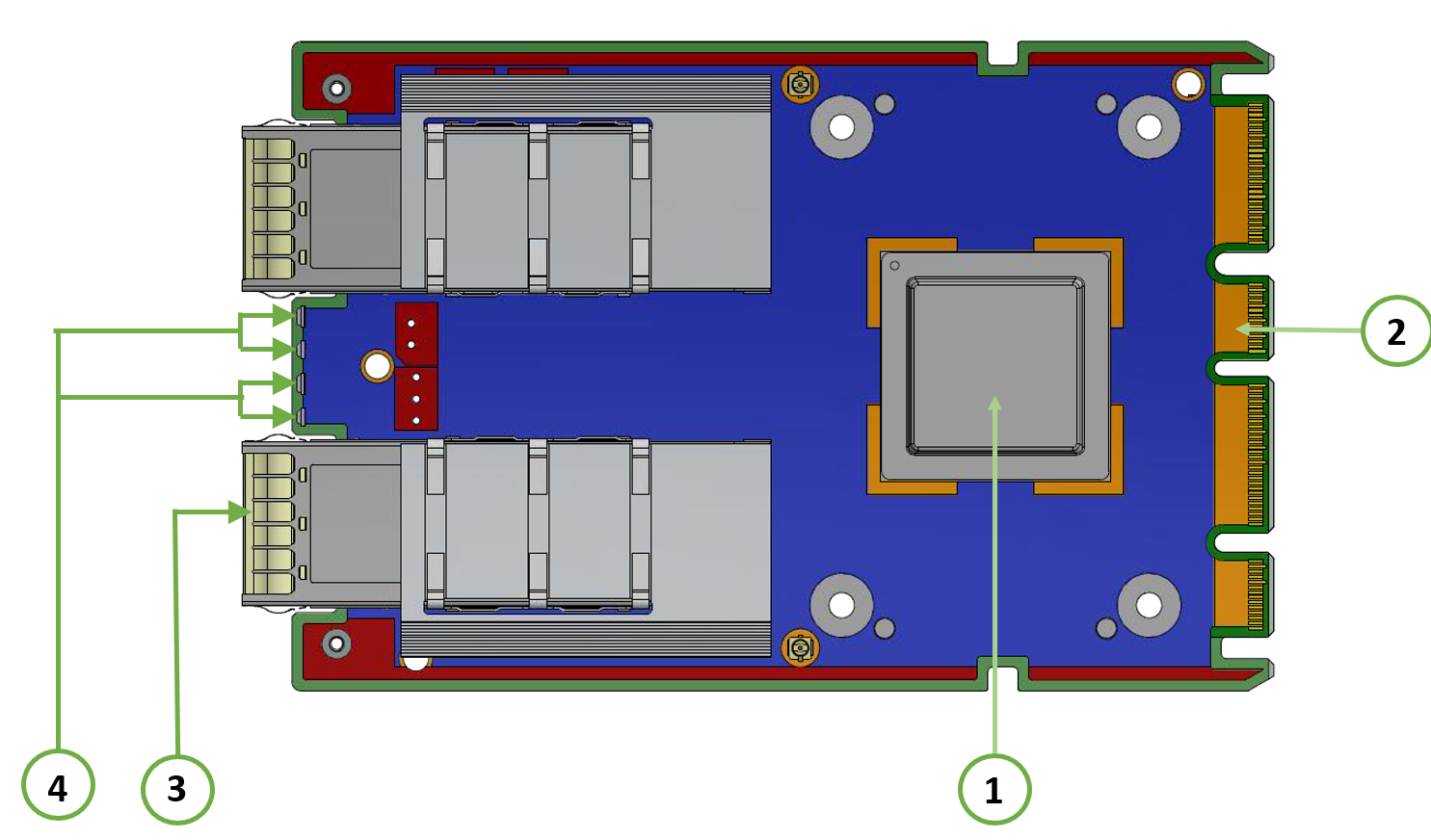

Manufacturer reference image. Included components and condition follow the selected item.

网络适配器

MCX753436MS-HEAB

NVIDIA MCX753436MS-HEAB 200GbE OCP3.0 Network Adapter

P/N:MCX753436MS-HEABNVIDIA OPN: 900-9X760-0078-MB0SwitchInfra item:7554品牌: NVIDIA
规格参数

MCX753436MS-HEAB specifications

速率：200GbE; Connector: QSFP112; PCIe Interface: PCIe 5.0 x16; Form Factor: OCP3.0.
料号MCX753436MS-HEAB
Host interfacePCIe 5.0 x16
接口QSFP112
封装类型OCP3.0 / OCP 3.0 SFF
Typical power (W)24.5
imageNoteManufacturer reference image. Included components and condition follow the selected item.
品牌NVIDIA
型号MCX753436MS-HEAB
端口Dual-port
cryptoNo
familyConnectX-7 OCP 3.0
bracketThumbscrew / pull tab
categoryvpi_nic
成色全新
速率200GbE
protocolsInfiniBand, Ethernet
Secure bootYes
PCIe InterfacePCIe 5.0 x16
Reference PSIDMT_0000000833
Card height (mm)15.1
Default protocolEthernet
Speed or computeNDR200/HDR / 200 GbE
Lifecycle literalMass Production
Ports or connector2 QSFP112
Canonical order code900-9X760-0078-MB0
Card dimensions (mm)115 x 76
Typical power conditionPassive cables, PCIe Gen 5 x16
Ethernet supported rates (Gb/s)10, 25, 50, 100, 200
Operating temperature (degrees C)0 to 55
Multi host and socket direct capabilityYes

下单前确认

  • 确认准确的 SKU、料号、规格选项与数量。
  • 确认主机平台、端口、电气接口与固件兼容要求。
  • 付款前确认库存、交期、目的地与适用售后条款。
产品描述
MCX753436MS-HEAB is an OCP 3.0 SFF ConnectX-7 adapter with two QSFP112 ports, PCIe 5.0 x16 connectivity and thumbscrew/pull-tab retention. It supports 200 GbE and NDR200/HDR InfiniBand, with Ethernet as the documented default. Multi-Host and Socket Direct are listed capabilities subject to the server implementation. Hardware crypto is disabled and secure boot is enabled. Its HEAB mechanical and port configuration should be kept distinct from the HEBB port-split variant.

产品问答

Can this replace a stand-up HHHL card?

It uses an OCP3 SFF connector and thumbscrew/pull-tab retention. It requires the corresponding OCP server interface rather than an ordinary stand-up PCIe installation.

How does HEAB differ from HEBB?

The opened ordering table identifies HEBB as a port-split-capable variant; HEAB is a separate dual-QSFP112 OCP configuration. Do not transfer HEBB port-splitting claims to HEAB.

Which security variant is MS?

MCX753436MS-HEAB enables secure boot and disables hardware crypto. MCX753436MC-HEAB is the crypto-enabled counterpart.

Will Multi-Host work in any OCP slot?

No automatic compatibility is established. Baseboard lane routing, server firmware and supported adapter configuration determine whether the advertised Multi-Host/Socket Direct capabilities can be used.

Which typical-power condition is documented?

24.5 W with passive cables and PCIe Gen 5 x16. The document’s connector power ceiling is marked not thermally supported; it must not be used as an optics thermal qualification.

Which network mode should be checked at installation?

The ordering row specifies Ethernet by default, with 200 GbE and NDR200/HDR InfiniBand support. Record the actual firmware, PSID and configured protocol before link testing.
