1 / 2

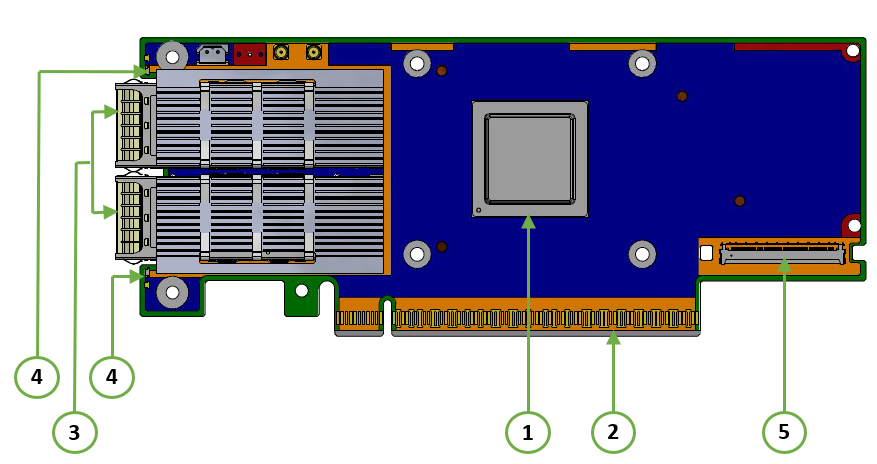

Product reference illustration, not a photograph of the offered stock. Connector, cooling and length variants are defined by the exact part number.

网络适配器

MCX755106AS-HEAT

NVIDIA MCX755106AS-HEAT 200GbE HHHL Network Adapter

P/N:MCX755106AS-HEATNVIDIA OPN: 900-9X7AH-0078-DTZSwitchInfra item:7556品牌: NVIDIA
规格参数

MCX755106AS-HEAT specifications

速率：200GbE; Connector: QSFP112; PCIe Interface: PCIe 5.0 x16; Form Factor: HHHL.
料号MCX755106AS-HEAT
Host interfacePCIe 5.0 x16; optional x16 Gen 4 extension
Port count2
接口QSFP112
封装类型HHHL / HHHL PCIe card
Typical power (W)24.9
品牌NVIDIA
型号MCX755106AS-HEAT
端口Dual-port
cryptoNo
familyConnectX-7
categoryvpi_nic
成色全新
速率200GbE
protocolsInfiniBand, Ethernet
Secure bootYes
PCIe InterfacePCIe 5.0 x16
Reference PSIDMT_0000000834
Default protocolEthernet
Speed or computeNDR200 / 200 GbE
Lifecycle literalMass Production
Ports or connector2 QSFP112
Canonical order code900-9X7AH-0078-DTZ
Card dimensions (mm)68.9 x 167.65
Auxiliary kit includedNo
Typical power conditionPassive cables, PCIe Gen 5 x16
Ethernet supported rates (Gb/s)10, 25, 50, 100, 200
Operating temperature (degrees C)0 to 55

下单前确认

  • 确认准确的 SKU、料号、规格选项与数量。
  • 确认主机平台、端口、电气接口与固件兼容要求。
  • 付款前确认库存、交期、目的地与适用售后条款。
产品描述
MCX755106AS-HEAT is a half-height, half-length ConnectX-7 adapter with two QSFP112 network ports for 200 GbE or NDR200 InfiniBand. Ethernet is the default mode. The primary host connection is PCIe 5.0 x16, with an additional x16 Gen 4 connection available through a separately selected Socket Direct auxiliary assembly. This AS variant enables secure boot and disables hardware crypto. Select the exact primary card, server topology and extension kit together.

产品问答

Is this the single-OSFP MCX75310AAS-HEAT?

No. MCX755106AS-HEAT has two QSFP112 ports and Socket Direct readiness. MCX75310AAS-HEAT is the single-OSFP configuration.

Which protocol is the default?

The exact specification lists Ethernet as the default and supports 200 GbE and NDR200 InfiniBand. Confirm the configured port mode before selecting the switch and interconnect.

Is the auxiliary card included?

No. NVIDIA explicitly excludes the passive auxiliary connection card and two harnesses from the Socket-Direct-ready primary-card kit. Select those components separately.

Does the optional path have the same interface as the primary slot?

The primary slot is PCIe 5 x16. The optional connection is described as an additional Gen 4 x16 path. The printed optional signal rate is inconsistent and remains a field-level qualification item.

Does secure boot mean this variant enables crypto?

No. The AS suffix is explicitly secure-boot-enabled and crypto-disabled; the AC variant has a different crypto configuration.

How should its power figure be used?

The published typical power is 24.9 W with passive cables in PCIe Gen 5 x16. It is not a maximum-system-power figure and does not establish the budget for an arbitrary active optic or auxiliary assembly.
