MFS1S00-H020V

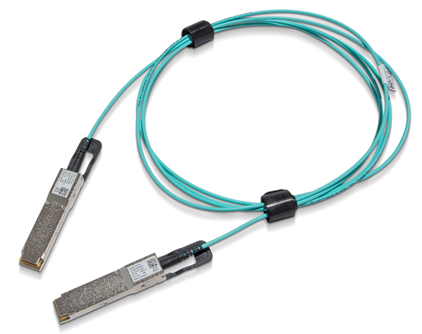

NVIDIA MFS1S00-H020V 200G QSFP56 AOC Cable 20 m
MFS1S00-H020V specifications
| 封装类型 | QSFP56 |
|---|---|
| 介质 | Integrated multimode optical fiber (VCSEL-based AOC); not passive copper or a separately pluggable 光模块 |
| Cable Length | 20 m |
| 速率 | 200G |
| imageNote | Manufacturer reference image. Included components and condition follow the selected item. |
| 品牌 | NVIDIA |
| 型号 | MFS1S00-H020V |
| 电源规格 | 5.0 W maximum per end with retiming |
| 成色 | 全新 |
| 接口 | QSFP56 to QSFP56 |
| Cable Type | Active optical cable (AOC) |
| Connectors | QSFP56 to QSFP56 |
| 料号 | MFS1S00-H020V |
| Branch count | 1 |
| Lane mapping | 4 x 50G-PAM4 |
| Thermal profile | standard QSFP56 cable-end shells |
| Breakout topology | Straight one-to-one cable; no splitter in this SKU |
| Interconnect type | AOC |
| Branch data rate (Gb/s) | 200 |
| Minimum bend radius (mm) | 30 |
| Nominal cable length (m) | 20 |
| Aggregate data rate (Gb/s) | 200 |
| Case temperature (degrees C) | 0 to 70 |
| Manufacturer lifecycle phase | MP |
下单前确认
- 确认准确的 SKU、料号、规格选项与数量。
- 确认主机平台、端口、电气接口与固件兼容要求。
- 付款前确认库存、交期、目的地与适用售后条款。
产品问答
What protocols are documented for MFS1S00-H020V?
The family specification and exact CX7 row support InfiniBand HDR and 200GbE. The assembly is 20 m long.
Is it a split cable?
No. It is a one-to-one QSFP56 AOC with four 50G-PAM4 lanes per end.
What power should be budgeted at each port?
The operational specification gives 5 W maximum per end with all lanes retimed. Check the host cage and thermal design.
Which Ethernet switch application is stated?
NVIDIA explicitly names 200GbE links between SN3700 and SN4600. Additional host combinations need their applicable support matrix.
Where does forward error correction take place?
The FAQ places FEC in the switch and network adapter. Match the supported endpoint configuration; a cable does not independently fix a FEC mismatch.
Why can a cable have two minimum bend radii?
The connector exit generally needs a larger bend radius than the cable body. Follow the exact assembly drawing and leave adequate space behind the rack door.
