MCP1600-E003E26

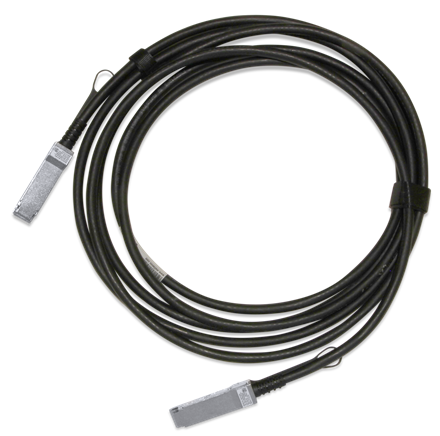

NVIDIA MCP1600-E003E26 100G QSFP28 DAC Cable 3 m
MCP1600-E003E26 specifications
| 封装类型 | QSFP28 |
|---|---|
| 介质 | copper; 26 AWG; LSZH; black |
| Cable Length | 3 m |
| 速率 | 100G |
| imageNote | Manufacturer reference image. Included components and condition follow the selected item. |
| 品牌 | NVIDIA |
| 型号 | MCP1600-E003E26 |
| 电源规格 | 0.1 W maximum per end |
| 成色 | 全新 |
| 接口 | QSFP28 to QSFP28 |
| Cable Type | Passive copper cable (DAC) |
| Connectors | QSFP28 to QSFP28 |
| 料号 | MCP1600-E003E26 |
| Branch count | 1 |
| Lane mapping | 4 x 25G-NRZ |
| Thermal profile | standard QSFP28 cable-end shells |
| Breakout topology | None; straight one-to-one |
| Interconnect type | DAC |
| Branch data rate (Gb/s) | 100 |
| Nominal cable length (m) | 3 |
| Aggregate data rate (Gb/s) | 100 |
| Case temperature (degrees C) | 0 to 70 |
| Manufacturer lifecycle phase | HVM |
下单前确认
- 确认准确的 SKU、料号、规格选项与数量。
- 确认主机平台、端口、电气接口与固件兼容要求。
- 付款前确认库存、交期、目的地与适用售后条款。
产品问答
What protocol is established for these exact suffixes?
The exact MCP1600-E001E30 and MCP1600-E003E26 rows establish 100G InfiniBand EDR. Their current Ethernet column says NA; this package does not transfer Ethernet claims from other MCP1600 variants.
How do the two offered versions differ?
E001E30 is 1 m with 30 AWG copper. E003E26 is 3 m with 26 AWG copper. Both use QSFP28 and four 25G-NRZ lanes.
Does an EEPROM make this active copper?
No. The signal path is passive; the end includes identification memory for the host. NVIDIA specifies 0.1 W maximum for the cable end.
May an unsuffixed or -C cable be substituted?
Not automatically. Preserve the exact E-series length and gauge suffix, then compare the receiving port, protocol and release table for the proposed replacement.
Where does forward error correction take place?
The FAQ places FEC in the switch and network adapter. Match the supported endpoint configuration; a cable does not independently fix a FEC mismatch.
Why can a cable have two minimum bend radii?
The connector exit generally needs a larger bend radius than the cable body. Follow the exact assembly drawing and leave adequate space behind the rack door.
