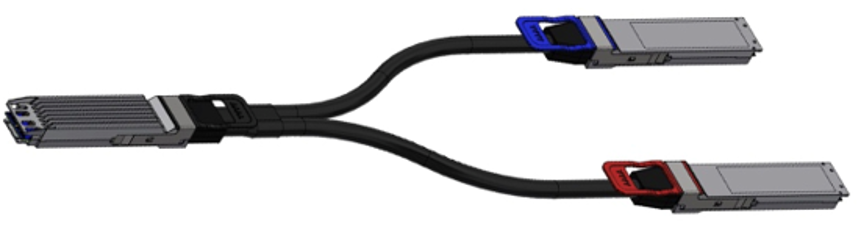

Manufacturer reference image. Included components and condition follow the selected item.
网络线缆
MCP7Y00-N002
NVIDIA MCP7Y00-N002 800G OSFP to 2x400G OSFP DAC Cable 2 m
MCP7Y00-N002 specifications
| 封装类型 | OSFP |
|---|---|
| 介质 | 26 AWG passive twinax copper; LSZH jacket |
| Cable Length | 2 m |
| 速率 | 800G aggregate (2x400G) |
| imageNote | Manufacturer reference image. Included components and condition follow the selected item. |
| 品牌 | NVIDIA |
| 型号 | MCP7Y00-N002 |
| 电源规格 | 0.1 W maximum per OSFP end |
| Cooling | fin to flat |
| 成色 | 全新 |
| 接口 | OSFP to 2xOSFP |
| Cable Type | Passive copper cable (DAC) |
| Connectors | twin-port OSFP to 2 x single-port OSFP |
| 料号 | MCP7Y00-N002 |
| Branch count | 2 |
| Lane mapping | eight 100G-PAM4 lanes at the head; four lanes per branch |
| Thermal profile | finned head to two flat tails |
| Breakout topology | 1:2 electrical breakout; OSFP to 2 x OSFP |
| Interconnect type | DAC_splitter |
| Branch data rate (Gb/s) | 400 |
| Nominal cable length (m) | 2 |
| Aggregate data rate (Gb/s) | 800 |
| Case temperature (degrees C) | 0 to 70 |
| Manufacturer lifecycle phase | P-Rel |
下单前确认
- 确认准确的 SKU、料号、规格选项与数量。
- 确认主机平台、端口、电气接口与固件兼容要求。
- 付款前确认库存、交期、目的地与适用售后条款。
产品问答
What rate does each MCP7Y00-N002 tail provide?
Each of the two OSFP tails carries 400G using four 100G-PAM4 lanes. The head carries 800G in aggregate.
What is its thermal construction?
It has a finned twin-port OSFP head and flat single-port OSFP tails. It is not the -FLT version.
Can the tails plug into BlueField-3 QSFP112 cages?
No. NVIDIA’s use-case guidance distinguishes OSFP ConnectX-7 tails from QSFP112 endpoints. Choose the cable ending in the actual host form factor.
What does P-Rel mean in this record?
The cited manufacturer lifecycle legend defines P-Rel as GA level. It does not provide an inventory, delivery or offered-batch test guarantee.
Where does forward error correction take place?
The FAQ places FEC in the switch and network adapter. Match the supported endpoint configuration; a cable does not independently fix a FEC mismatch.
Why can a cable have two minimum bend radii?
The connector exit generally needs a larger bend radius than the cable body. Follow the exact assembly drawing and leave adequate space behind the rack door.
