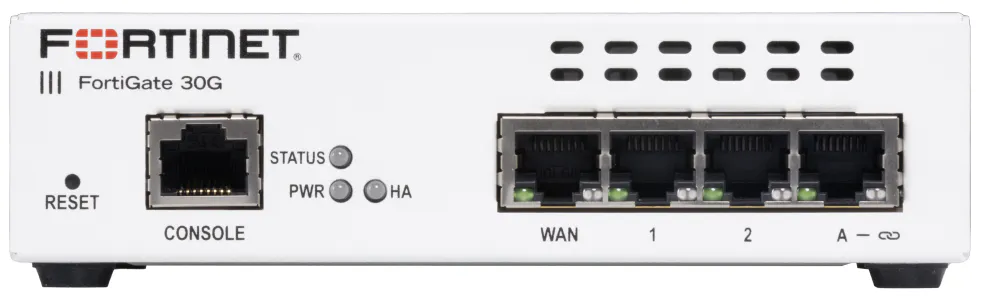

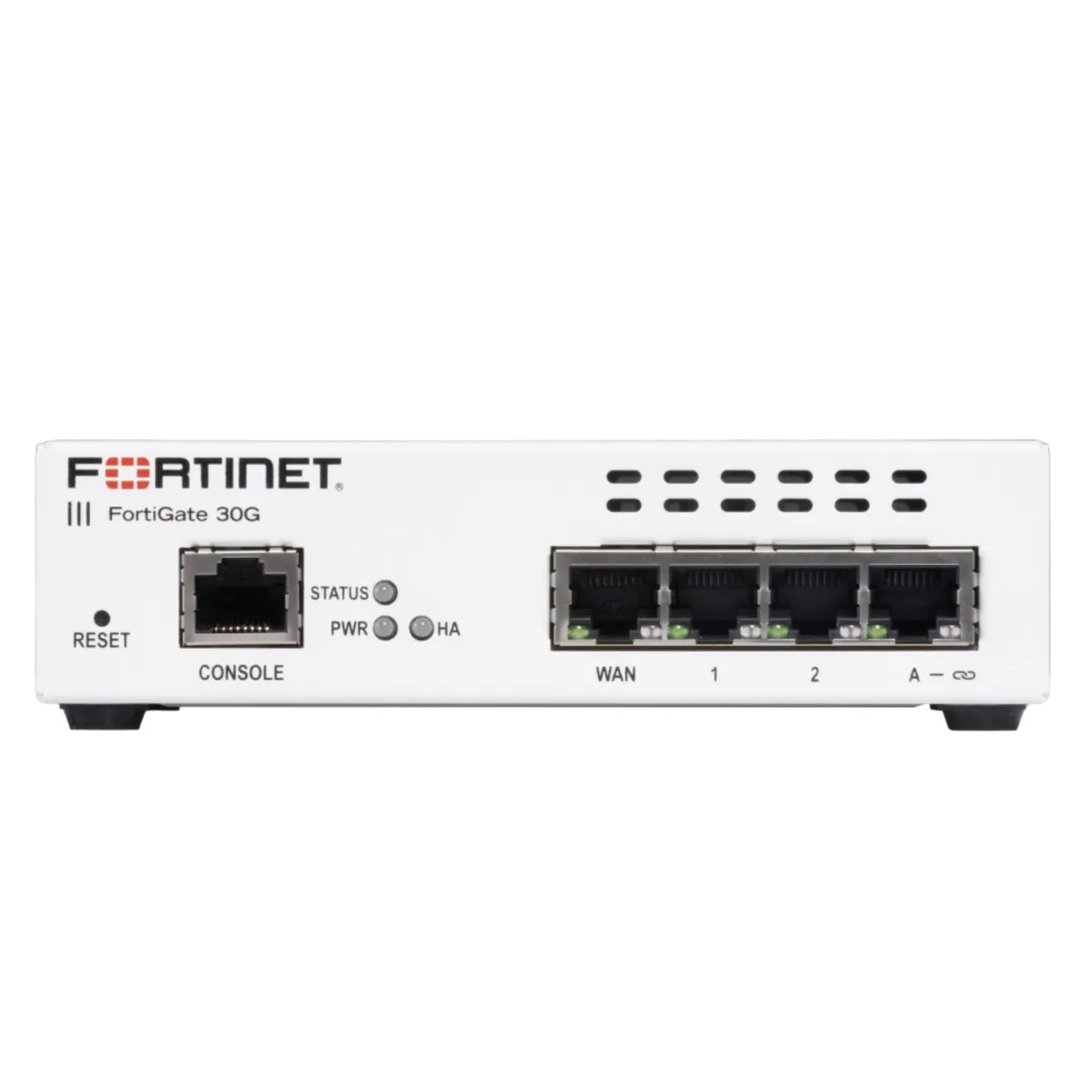

Fortinet FortiGate 30G Hardware Only

P/N: FG-30GSKU: FG-30GBrand: Fortinet
$81
! Limited StockStock: 5 pcs
Delivery confirmed per order
Warranty confirmed per item
30-Day Returns
DesktopFG-30G

Features

  • Published Fortinet specifications
  • Licensing and support boundary
  • Interfaces and form factor
$81Stock: 5 pcs

Product selection summary

network infrastructure product Sourcing context

Fortinet FortiGate 30G Hardware Only is listed on SwitchInfra as a network infrastructure product for Firewalls. Buyers can evaluate specifications, deployment fit, availability, and quote readiness before procurement.

Best for

technical buyers comparing specifications, compatibility, lifecycle needs, and quote readiness.

Common use cases

Network infrastructure sourcing and deployment planning.

Key comparison points

  • Model: FG-30G
  • Brand: Fortinet
  • Form Factor: Desktop
  • Dimensions: 40.5 x 142 x 160 mm
  • Weight: 0.6 kg / 1.3 lb

RFQ guidance

Use the cart or quote flow to confirm quantity, availability, pricing, and project requirements before purchase.

Description
Fortinet FortiGate 30G Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
Specifications

FG-30G technical overview

Fortinet FortiGate 30G Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
ModelFG-30G
BrandFortinet
Form FactorDesktop
Dimensions40.5 x 142 x 160 mm
Weight0.6 kg / 1.3 lb
Operating Temperature0 to 40C
Power12VDC, 2A external adapter
ConditionUsed
ComplianceFCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA
Interfaces1x GE RJ45 WAN, 2x GE RJ45 LAN, 1x GE RJ45 FortiLink default, 1x RJ45 console
Max FortiAPs16 total / 8 tunnel mode
IPS Throughput800 Mbps
NGFW Throughput570 Mbps
Operating SystemFortiOS
Max FortiSwitches8
Concurrent Sessions600,000
Firewall Throughput4 / 4 / 3.9 Gbps IPv4/IPv6
IPsec VPN Throughput3.5 Gbps
New Sessions per Second30,000
SSL Inspection Throughput400 Mbps
Threat Protection Throughput500 Mbps
Features

Published Fortinet specifications

Interface and performance values are sourced from the official Fortinet series data sheet; actual results depend on configuration and enabled services.

Firewall Throughput: 4 / 4 / 3.9 Gbps IPv4/IPv6IPS Throughput: 800 MbpsThreat Protection Throughput: 500 Mbps
Published Fortinet specifications

Licensing and support boundary

FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement. Availability varies by model, FortiOS release, region, and subscription tier.

Active entitlement requiredFortiOS release check requiredRegion and contract check required
Licensing and support boundary

Interfaces and form factor

Published hardware characteristics from the same official series data sheet. Verify the exact model and active service entitlements before deployment.

  • Interfaces: 1x GE RJ45 WAN, 2x GE RJ45 LAN, 1x GE RJ45 FortiLink default, 1x RJ45 console
  • Form Factor: Desktop
  • Dimensions: 40.5 x 142 x 160 mm
Connectivity Solutions
Firewall deployment reference

Size FG-30G against the target interfaces, throughput, session scale, topology, FortiOS release, and active license entitlements before deployment.
