Manufacturer reference image. Included components and condition follow the selected item.
NETWORK ACCESSORY
NVIDIA C8180X PCIe auxiliary kit (930-9XAX6-0025-000)
- Type
- MCIO
Before you order
- Confirm the exact SKU, part number, specification option and quantity.
- Confirm the host platform, port, electrical interface and firmware requirements.
- Confirm availability, lead time, destination and applicable service terms before payment.
| model | C8180X |
|---|---|
| brackets | Tall, fitted, Short |
| Cable type | MCIO |
| Multi host | Yes |
| Cable count | 1 |
| Part Number | 930-9XAX6-0025-000 |
| Product type | PCIe auxiliary connection kit |
| Cable length (mm) | 250 |
| Auxiliary card count | 1 |
| Card dimensions (mm) | 144.75 x 66.4 |
Product questions & answers
Is this a ConnectX-8 SuperNIC?
No. C8180X is an auxiliary PCIe connection kit with a card, cable and brackets.
What cable is included?
The package lists one 250 mm MCIO cable.
Can it be described unconditionally as PCIe Gen 6?
No. The public ordering description, package-contents table and technical-specification table disagree. Keep generation and rate fields unset until confirmed.
Does it include a primary networking card?
The listed package includes the auxiliary connection card, not a primary ConnectX network adapter.
Is there an official product image?

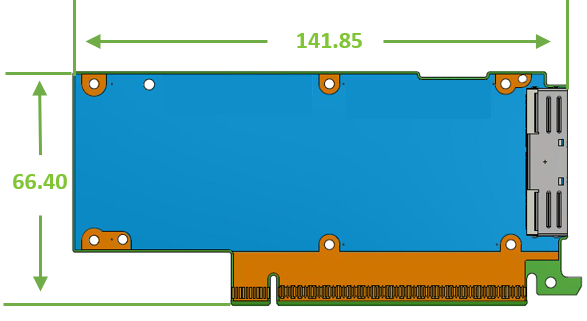

A manufacturer mechanical drawing of the auxiliary board is available. It is not a photograph of the complete packaged kit and commercial reuse permission is unconfirmed.
What should be provided to qualify the kit?
Provide the primary card order code, server PCIe topology, intended mode, available slot and cable route. Obtain the exact auxiliary generation/rate confirmation from NVIDIA.
