1 / 2

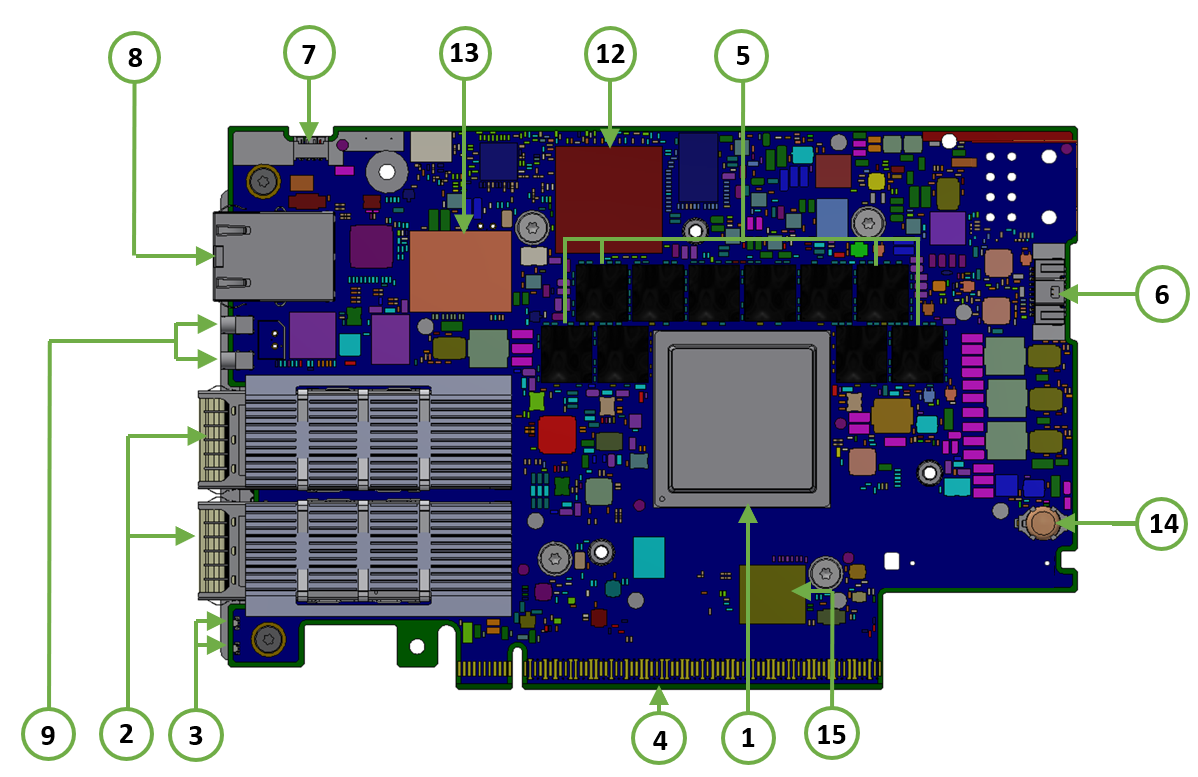

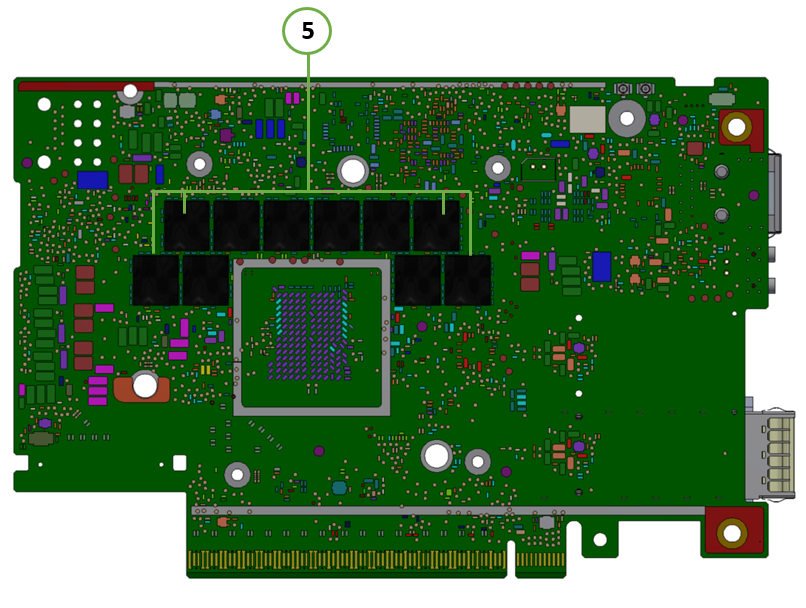

Manufacturer reference image. Included components follow the selected part number.

NETWORK ADAPTER

900-9D3B4-00SC-EA0

NVIDIA BlueField-3 B3210L SuperNIC (900-9D3B4-00SC-EA0)

P/N:900-9D3B4-00SC-EA0NVIDIA OPN: 900-9D3B4-00SC-EA0SwitchInfra item:7744Brand: NVIDIA
Specifications
Part Number900-9D3B4-00SC-EA0
Host interfacePCIe 5.0 x16
Port count2
ConnectorQSFP112
Maximum Ethernet rate (Gb/s)100
Infiniband maximum modeHDR100
Form factorFHHL
imageNoteManufacturer reference image. Included components follow the selected part number.
EccYes
ModelB3210L
SeriesE-Series
BracketTall
Arm cores8
Product typeSuperNIC
Integrated bmcYes
Reference PSIDMT_0000000967
Slot occupancysingle-slot
Onboard storage40 GB pSLC eMMC and 128 GB SSD
Onboard DDR5 (GB)16
Onboard memory gb16
Card dimensions (mm)111.15 x 167.65
Hardware crypto enabledNo
Default network protocolEthernet
DDR5 transfer rate (MT/s)5200
Operating humidity (% RH)10 to 85
Nonoperating humidity (% RH)10 to 90
Manufacturer lifecycle statusMass Production
Installation power requirementThe server must supply at least 75 W through the PCIe x16 interface.
Maximum operating altitude (m)3050
Storage temperature (degrees C)-40 to 70
Operating temperature (degrees C)0 to 55
PCIe x16 extension hardware optionNo

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
The BlueField-3 B3210L is a single-slot FHHL SuperNIC with two QSFP112 network ports, 8 Arm cores and 16 GB of on-board DDR5. This exact configuration supports 100GbE and HDR100 InfiniBand over a PCIe 5.0 x16 host connection. Hardware crypto is disabled; an integrated BMC supports platform management. Match the full order code, server power path and cooling arrangement before deployment.

Product questions & answers

What power and cooling checks are needed before installation?

The server must supply at least 75 W through the PCIe x16 interface. Verify the server-specific airflow and power specifications before installation.

Can an auxiliary kit automatically enable Socket Direct?

The official ordering table does not list an x16 extension option for this SuperNIC. Do not assume a DPU auxiliary kit is compatible.

Which network protocol does this variant use by default?

It defaults to Ethernet. Its documented upper rates are 100GbE and HDR100 InfiniBand. Changing link type requires the supported configuration procedure and matching network equipment.

Is B3210L a DPU or a SuperNIC, and why does the suffix matter?

This order code is a SuperNIC: E-Series, 8 Arm cores and 16 GB DDR5. Keep the entire order code when matching a server configuration; another BlueField-3 variant can differ in memory, crypto, networking speed and cooling.

Is hardware crypto enabled on this exact variant?

Crypto is disabled on 900-9D3B4-00SC-EA0. A shared family name or physically similar board does not establish crypto capability.

Which image and firmware evidence should be used to identify delivered units?

The official illustration represents the listed B3210L configuration group, not your delivered batch. Obtain the actual label, hardware revision and PSID, then match firmware to the exact device. The reference PSID is MT_0000000967.
