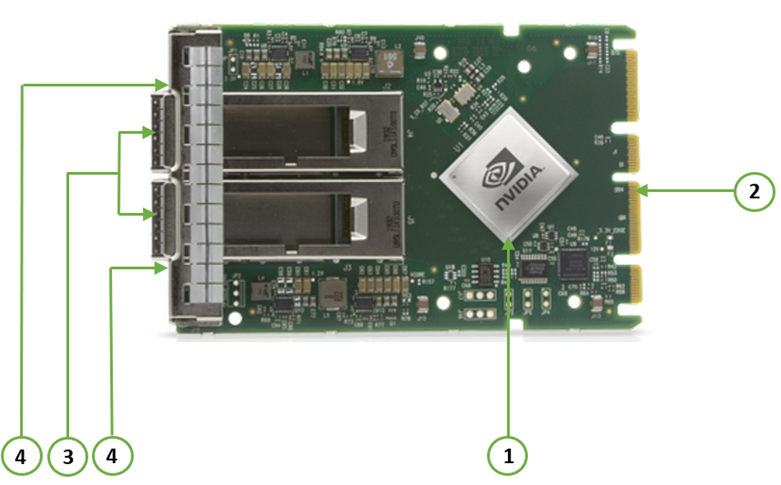

Manufacturer technical illustration.

NETWORK ADAPTER

MCX623430MS-CDAB

NVIDIA ConnectX-6 Dx MCX623430MS-CDAB OCP 3.0 adapter

P/N:MCX623430MS-CDABNVIDIA OPN: 900-9X675-0076-MB0SwitchInfra item:7748Brand: NVIDIA
Specifications
Part NumberMCX623430MS-CDAB
Host interfacePCIe 4.0 x16
Port count2
ConnectorDSFP
Form factorOCP 3.0 SFF
imageNoteManufacturer technical illustration.
BracketThumbscrew (pull tab)
Multi hostSupported
Product typeOCP 3.0 adapter card
Host managementYes
Secure boot enabledYes
Card dimensions (mm)115 x 76
Pcie signal rate gtps16
Hardware crypto enabledNo
Typical power test conditionATIS traffic load
Maximum power w passive active26.6
Typical power w passive active19
Ethernet supported rates (Gb/s)1, 10, 25, 40, 50, 100
Maximum power per dsfp port (W)5
Maximum power w passive standby10
Typical power w passive standby5.7
Multi host or socket direct hardware capabilityMulti-Host or Socket Direct

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
MCX623430MS-CDAB is a dual-DSFP, 100GbE ConnectX-6 Dx adapter for OCP 3.0 SFF servers. Its exact-model specification describes PCIe 4.0 x16, secure boot and Multi-Host/Socket Direct capability, with hardware crypto disabled. The card uses a thumbscrew pull-tab bracket and measures 115 by 76 mm. Confirm DSFP-compatible interconnects and the server-selected PCIe mode before deployment; a nearby QSFP56 variant is a different product.

Product questions & answers

Is this DSFP or QSFP56?

The exact-model specifications and ordering table specify dual DSFP. The general introduction overview conflicts; confirm the exact label and connector before purchase.

Are crypto and secure boot enabled?

The exact-model section says crypto disabled and secure boot enabled. Do not infer crypto from another ConnectX-6 Dx OCP variant.

Which form factor and bracket are required?

OCP 3.0 SFF, 115 x 76 mm, with thumbscrew pull-tab retention. It is not a conventional PCIe stand-up card.

Is Multi-Host automatically available?

The SKU is specified as Multi-Host/Socket Direct capable, but the OCP baseboard and PCIe bifurcation determine the active host configuration.

What does the power figure mean?

With passive cables, NVIDIA lists 19 W typical active power under ATIS traffic load and 26.6 W maximum active power. Optics, standby mode and airflow must be assessed separately.

Can the family picture prove the delivered connector?

No. A generic OCP family illustration is insufficient to authenticate the DSFP variant. Obtain a label and connector photograph of the actual unit.
