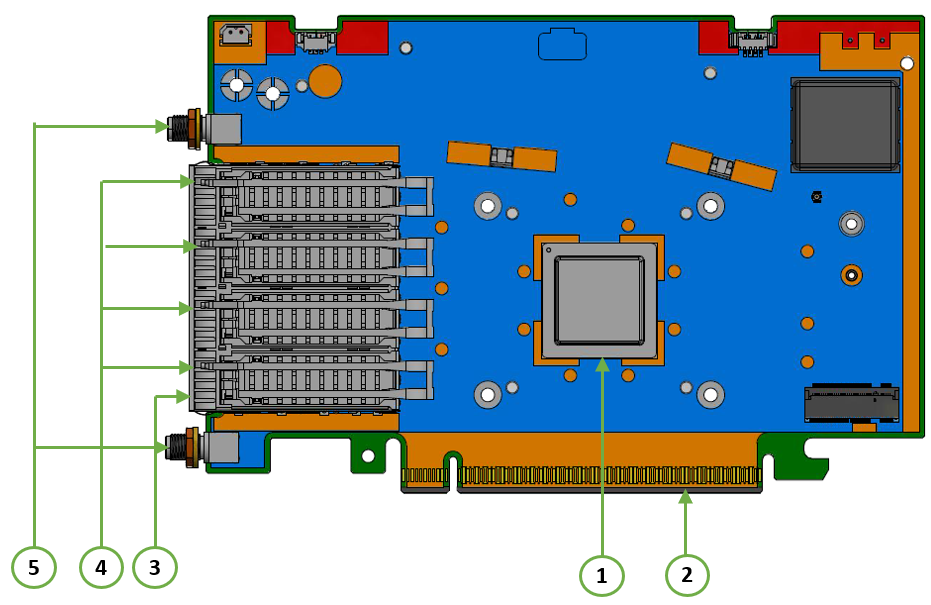

Manufacturer reference image. Included components follow the selected part number.

NETWORK ADAPTER

MCX713114TC-GEAT

NVIDIA ConnectX-7 MCX713114TC-GEAT

P/N:MCX713114TC-GEATNVIDIA OPN: 900-9X7AH-004N-CT0SwitchInfra item:7753Brand: NVIDIA
Specifications
Part NumberMCX713114TC-GEAT
Host interfacePCIe 4.0 x16
Port count4
ConnectorSFP56
Maximum Ethernet rate (Gb/s)50
Form factorFHHL
Typical power (W)15.8
imageNoteManufacturer reference image. Included components follow the selected part number.
BracketTall
Product typePCIe adapter card
Timing featuresEnhanced SyncE, PTP, PPS input/output
Secure boot enabledYes
Timing cables includedNo
Hardware crypto enabledYes
Typical power conditionsPassive cables, PCIe Gen4 x16
Operating humidity (% RH)10 to 85
Nonoperating humidity (% RH)10 to 90
Manufacturer lifecycle statusMass Production
Maximum operating altitude (m)3050
Storage temperature (degrees C)-40 to 70
Operating temperature (degrees C)0 to 55

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
MCX713114TC-GEAT is a FHHL ConnectX-7 PCIe adapter with 4 SFP56 ports and a PCIe 4.0 x16 host interface. The quad-port Ethernet configuration supports 25/50GbE. Secure boot is enabled and hardware crypto is enabled. Its timing interfaces make it relevant to synchronized Ethernet applications; verify the complete timing design and cabling.

Product questions & answers

How should a link that will not come up be checked?

Check seating, cable connection, the intended port configuration and supported firmware/driver combination. Compare cable or module compatibility and the peer switch settings before treating a missing link as hardware failure.

Are crypto and secure boot the same option?

No. Secure boot is enabled on this order code; crypto is enabled. These are separately identified capabilities, so retain the exact suffix when ordering.

Which connector and host slot does this order code require?

MCX713114TC-GEAT uses 4 SFP56 ports and PCIe 4.0 x16. The card is FHHL and ships with a tall bracket. Match the cage, optics or cable, lane width and chassis clearance.

Does it support Ethernet as well as InfiniBand?

This exact quad-port SFP56 variant is listed for 25/50GbE Ethernet. Do not transfer the InfiniBand capability of other ConnectX-7 variants to this card.

Can the quoted typical power be used as the server thermal limit?

No. NVIDIA lists 15.8 W with passive cables in PCIe Gen4 x16 for this variant. Maximum power and required airflow need the full product specifications and the exact server/optics configuration.

What special selection check applies to this variant?

For synchronized telecom applications, verify PPS, clock cabling and the timing profile; the associated timing cables are not included.
