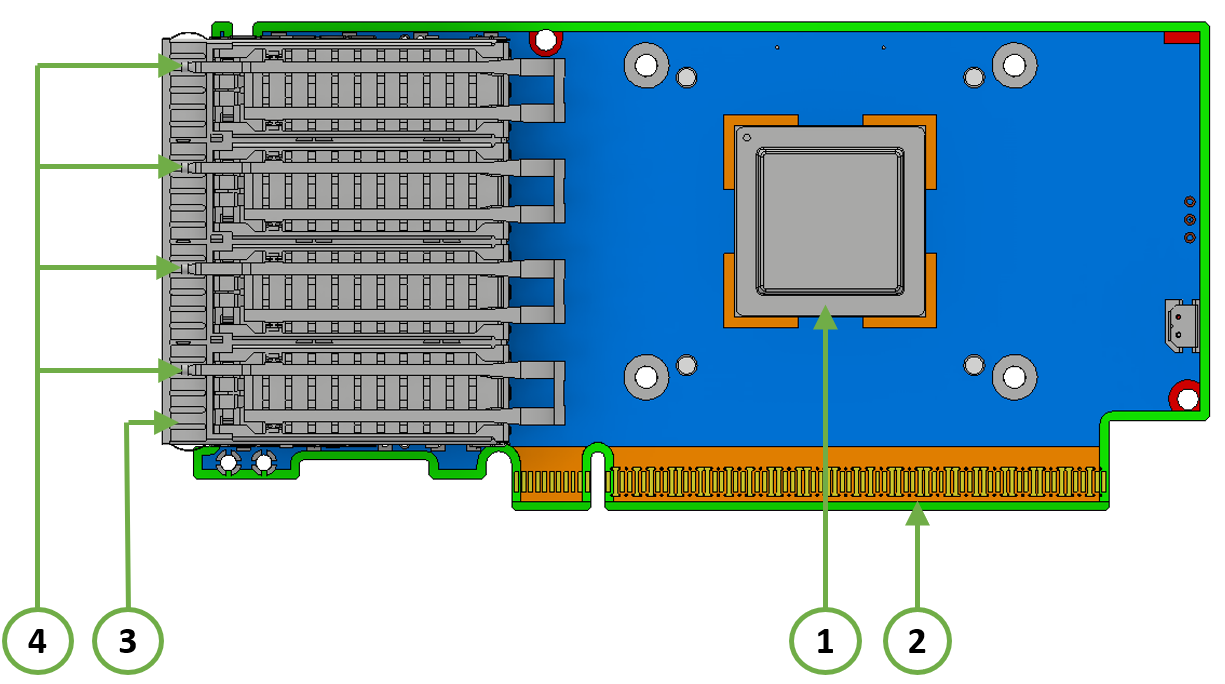

Manufacturer reference image. Included components follow the selected part number.

NETWORK ADAPTER

MCX713104AC-ADAT

NVIDIA ConnectX-7 MCX713104AC-ADAT

P/N:MCX713104AC-ADATNVIDIA OPN: 900-9X7AO-00C3-STZSwitchInfra item:7755Brand: NVIDIA
Specifications
Part NumberMCX713104AC-ADAT
Host interfacePCIe 4.0 x16
Port count4
ConnectorSFP56
Maximum Ethernet rate (Gb/s)50
Form factorHHHL
Typical power (W)15.8
imageNoteManufacturer reference image. Included components follow the selected part number.
BracketTall
Product typePCIe adapter card
Secure boot enabledYes
Hardware crypto enabledYes
Typical power conditionsPassive cables, PCIe Gen4 x16
Operating humidity (% RH)10 to 85
Nonoperating humidity (% RH)10 to 90
Manufacturer lifecycle statusMass Production
Maximum operating altitude (m)3050
Storage temperature (degrees C)-40 to 70
Operating temperature (degrees C)0 to 55

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
MCX713104AC-ADAT is a HHHL ConnectX-7 PCIe adapter with 4 SFP56 ports and a PCIe 4.0 x16 host interface. The quad-port Ethernet configuration supports 25/50GbE. Secure boot is enabled and hardware crypto is enabled. Select the matching connector, cooling arrangement and validated software release for the target server.

Product questions & answers

How should a link that will not come up be checked?

Check seating, cable connection, the intended port configuration and supported firmware/driver combination. Compare cable or module compatibility and the peer switch settings before treating a missing link as hardware failure.

Are crypto and secure boot the same option?

No. Secure boot is enabled on this order code; crypto is enabled. These are separately identified capabilities, so retain the exact suffix when ordering.

What special selection check applies to this variant?

Match the exact crypto suffix and mechanical drawing. A shared ConnectX-7 name does not make a different connector, bracket or form factor a substitute.

Does it support Ethernet as well as InfiniBand?

This exact quad-port SFP56 variant is listed for 25/50GbE Ethernet. Do not transfer the InfiniBand capability of other ConnectX-7 variants to this card.

Can the quoted typical power be used as the server thermal limit?

No. NVIDIA lists 15.8 W with passive cables in PCIe Gen4 x16 for this variant. Maximum power and required airflow need the full product specifications and the exact server/optics configuration.

Which connector and host slot does this order code require?

MCX713104AC-ADAT uses 4 SFP56 ports and PCIe 4.0 x16. The card is HHHL and ships with a tall bracket. Match the cage, optics or cable, lane width and chassis clearance.
