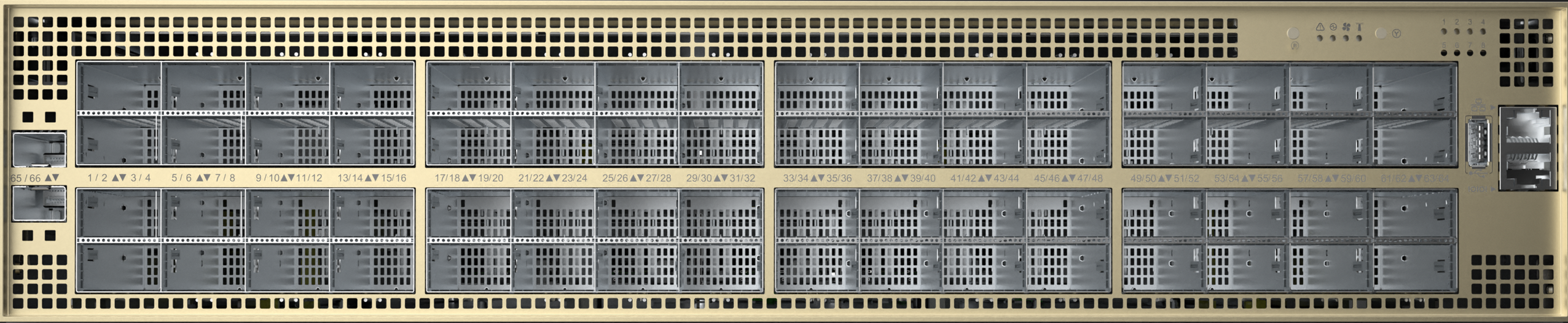

Manufacturer reference image. Included components follow the selected part number.

NETWORK SWITCH

920-9N42F-00RI-3C1

NVIDIA SN5610 800GbE Ethernet switch

P/N:920-9N42F-00RI-3C1SKU: 920-9N42F-00RI-3C1SwitchInfra item:7770Brand: NVIDIA
Specifications
Form factor2U
imageNoteManufacturer reference image. Included components follow the selected part number.
Power4 AC PSUs
AirflowC2P
Rack kitTool-less rail kit
Data cages64 × OSFP
Part Number920-9N42F-00RI-3C1
Secure bootListed
Additional ports2 × SFP28
Software configurationCumulus Linux authentication
Owner-confirmed airflowC2P
Maximum listed port rate800 GbE

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
A 2U Spectrum-4 Ethernet switch with 64 OSFP data cages, two SFP28 ports and four AC PSUs. NVIDIA documents this exact order code in its DGX B300 SuperPOD Ethernet storage-fabric reference design.

Product questions & answers

What do P2C and C2P mean?

P2C moves air from the power side toward the connectors. C2P moves air from the connectors toward the power side. Select the direction specified for the exact switch configuration.

Are parts shared across every switch in the same series?

No blanket compatibility is documented. For example, the SN5000 table lists separate fans and rails for SN5610, while several SN5400/SN5600 parts share one row. Follow each row’s supported-systems scope.

Does a public ordering or compatibility entry prove stock and delivery?

No. Record the manufacturer’s published lifecycle wording separately from commercial availability. Stock, lead time, software entitlement, support and warranty require a current supplier quote.

What distinguishes SN5610 in the current ordering table?

The listed SN5610 configuration has 64 OSFP ports, two SFP28 ports, four AC PSUs, C2P airflow and a tool-less rail kit in a 2U system. Its FRU entries are model-specific.

Is there a documented application for this exact SN5610 order code?

NVIDIA’s DGX B300 SuperPOD XDR reference architecture lists 920-9N42F-00RI-3C1 for Ethernet storage leaf and spine roles. This is a reference configuration, not a claim that SwitchInfra deployed it.
