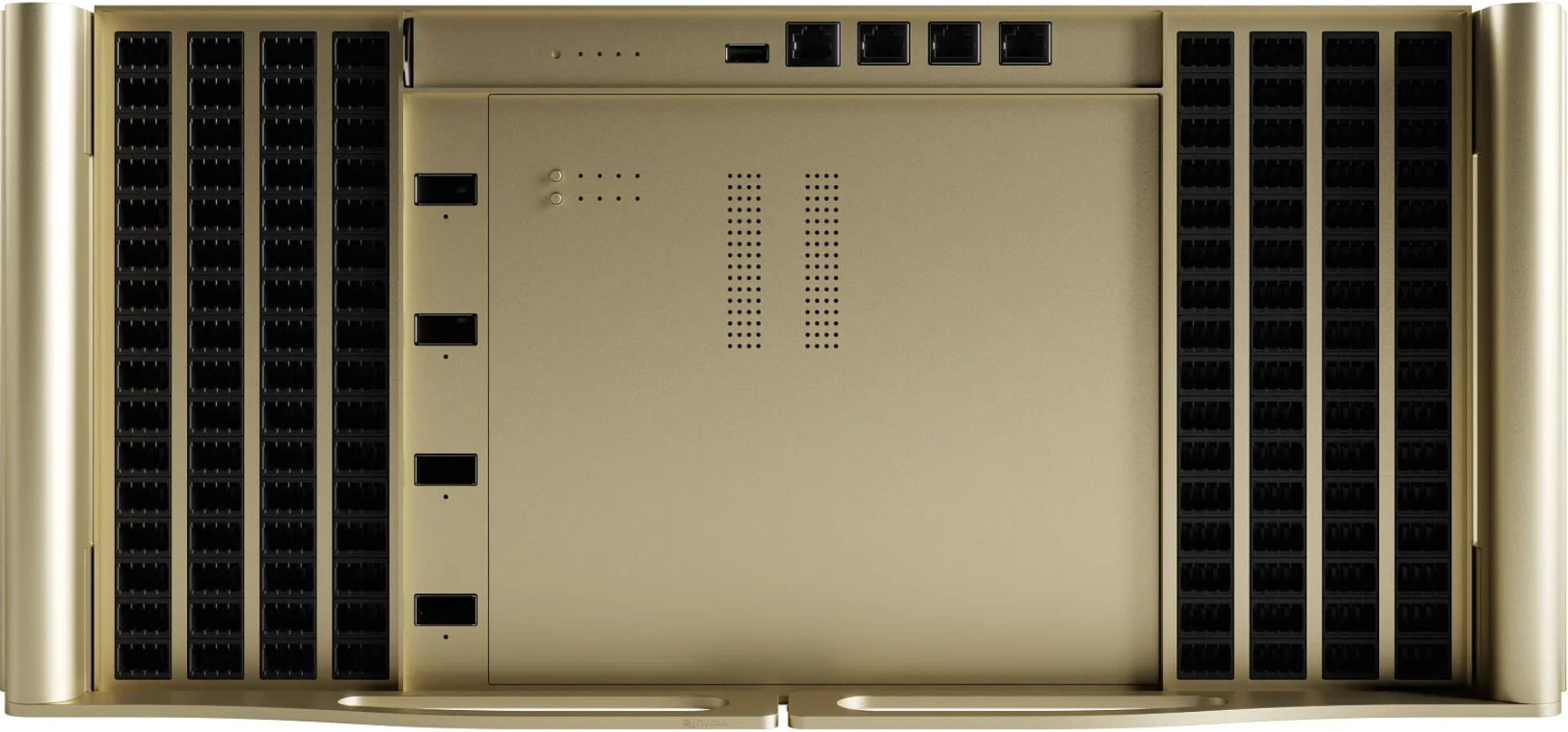

Manufacturer reference image. Included components follow the selected part number.

NETWORK SWITCH

920-9N67K-00LA-GC0

NVIDIA SN6800-LD Spectrum-6 photonics switch

P/N:920-9N67K-00LA-GC0SKU: 920-9N67K-00LA-GC0SwitchInfra item:7773Brand: NVIDIA
Specifications
imageNoteManufacturer reference image. Included components follow the selected part number.
CoolingLiquid-cooled
Part Number920-9N67K-00LA-GC0
Power input48 VDC busbar
Secure bootListed
Architecture4 Spectrum-6 ASICs; co-packaged optics
Additional ports4 × QSFP112
Software configurationCumulus Linux authentication

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Liquid-cooled Spectrum-6 co-packaged-optics Ethernet switch with 48 VDC busbar power and Cumulus Linux authentication. A four-ASIC design with 512 optical connections.

Product questions & answers

Can I select a replacement by appearance or wattage alone?

Use the manufacturer replacement-parts table for the complete switch model and order code. Matching dimensions, connector shape or PSU wattage alone does not establish compatibility.

Is an external laser source a conventional pluggable transceiver?

NVIDIA documents ELS components separately for its photonics switch systems. Use the switch-specific ELS order code and service procedure; a conventional OSFP transceiver is not established as a substitute.

Why is the connector wording held for SN6810-LD and SN6800-LD?

The reviewed Spectrum-6 hardware manual uses MMC-16, while NVIDIA’s Ethernet-switching marketing table uses MMC-12. The product identity is documented, but the connector field needs manufacturer clarification before cable selection.

Does a public ordering or compatibility entry prove stock and delivery?

No. Record the manufacturer’s published lifecycle wording separately from commercial availability. Stock, lead time, software entitlement, support and warranty require a current supplier quote.

Is SN6600 the same configuration as SN6600-LD?

No. The manual distinguishes air-cooled, AC-powered SN6600 from liquid-cooled, DC-busbar SN6600-LD. Keep full model names and ordering codes separate in designs and case-study claims.

Which listed Spectrum-6 systems use co-packaged optics?

The ordering table identifies SN6810-LD and SN6800-LD as CPO systems. SN6600 instead lists OSFP cages. Their optical and infrastructure designs should not be treated as interchangeable.
