NETWORK ACCESSORY

MTMK9100-T35

NVIDIA MTMK9100-T35 Socket Direct auxiliary kit

P/N:MTMK9100-T35SKU: 930-9BAUX-00N3-000SwitchInfra item:7776Brand: NVIDIA
Specifications
imageNoteManufacturer reference image. Included components follow the selected part number.
Part NumberMTMK9100-T35
Product typePCIe auxiliary connection kit
Harness count2
Host interfacePCIe 4 x16
Pcie interfaceGen4.0 x16
Harness connectorCabline CA-II Plus
Intended topologySocket Direct
Harness length (mm)350

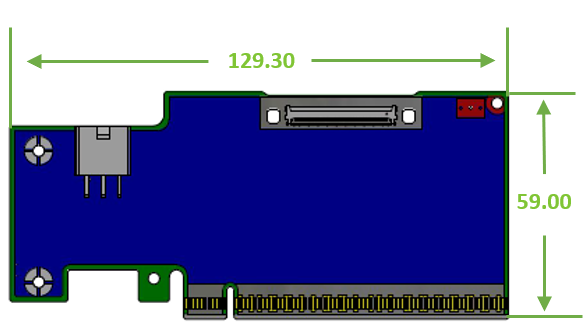

Auxiliary card dimensions (mm)129.3 x 59.0

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
MTMK9100-T35 is a 350 mm PCIe auxiliary kit for a Socket Direct connection. The documented assembly uses a Gen4.0 x16 connection card and two Cabline CA-II Plus harnesses. The kit supplies the auxiliary card, harnesses and mounting brackets; it is not a standalone network adapter. Confirm the compatible primary card, firmware mode and physical cable route before selection.

Product questions & answers

Is this a NIC or a supporting component?

It is an auxiliary PCIe connection kit, not a standalone Ethernet or InfiniBand adapter.

What is included?

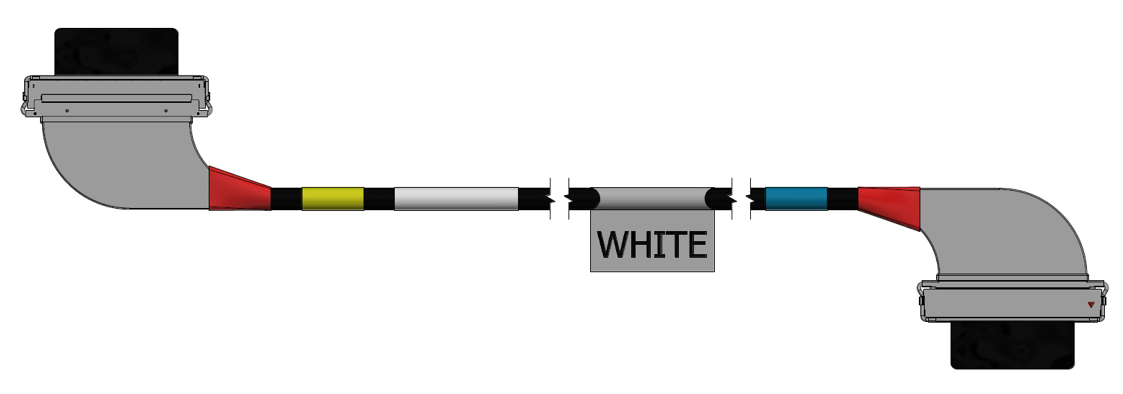

One auxiliary connection card, one white and one black harness, retention clips, a short bracket and a fitted tall bracket are listed.

Will adding the kit enable Socket Direct by itself?

No. Primary-card compatibility, server topology and firmware support are separate requirements. The current BF3 introduction warns Socket Direct is not firmware-supported.

Which PCIe generation is documented?

This item is specified for Gen4.0 x16 auxiliary connectivity.

What harness length is specified?

350 mm. Cable length is part of the exact selection; the T15, T25 and T35 options are not interchangeable descriptions.

How do the catalog and legacy identifiers map?

The owner-confirmed catalog binds 930-9BAUX-00N3-000 to MTMK9100-T35. Official documentation corroborates the legacy kit identity and technical contents. The identifier mapping is owner-sourced rather than independently established by the opened public table.
