Passive optical fiber assemblies technical selection questions
Technical evaluation questions with variant-specific scope and sources.
These questions are prepared from the cited technical documentation and clearly scoped owner inputs. They are not a measured frequency ranking. Keep the applicability line with each answer; do not transfer board, cooling, crypto, protocol, cable length or firmware facts between variants.
Is MFP7E20-N010 an AOC?
Applicable canonical content subjects: 980-9I554-00N010.
No. It is a 10 m passive multimode fiber splitter with female MPO/APC connectors. Separate optical engines are required.
Public references
- NVIDIA MFP7E20-Nxxx Optical Multimode Splitter Fiber Cable Product Specifications | NVIDIA MFP7E20-Nxxx Optical Multimode Splitter Fiber Cable Product Specifications
- Ordering Information | NVIDIA MFP7E20-Nxxx Optical Multimode Splitter Fiber Cable Product Specifications
What breakout does one assembly provide?
Applicable canonical content subjects: 980-9I554-00N010.
It routes one four-channel optical port to two two-channel optical ports. With the documented 100G-PAM4 transceivers, that creates two 200G branches.
Public references
Which fiber grade is specified for the 10 m version?
Applicable canonical content subjects: 980-9I554-00N010.
The specification uses OM3 for lengths up to 30 m, so the N010 assembly is OM3, 50/125 µm. Its connector topology is Type-B crossover.
Public references
How many assemblies split a twin-port optic into four links?
Applicable canonical content subjects: 980-9I554-00N010.

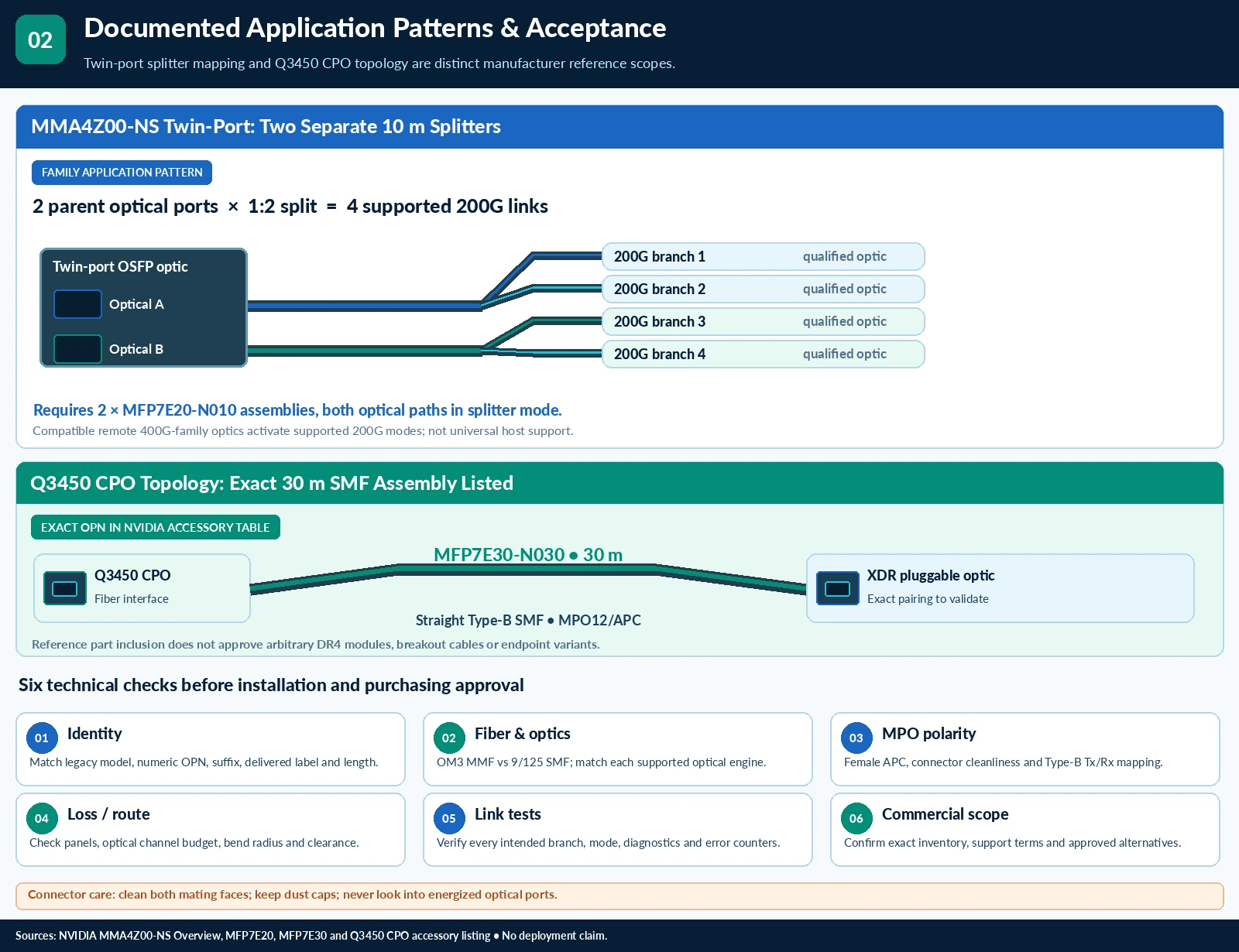

Two, one for each optical port. The MMA4Z00-NS guidance requires both optical connections to use the same straight-versus-splitter configuration.
Public references
- NVIDIA MFP7E20-Nxxx Optical Multimode Splitter Fiber Cable Product Specifications | NVIDIA MFP7E20-Nxxx Optical Multimode Splitter Fiber Cable Product Specifications
- MMA4Z00-NS Overview
How should detachable optical connectors be cleaned?
Applicable canonical content subjects: 980-9I554-00N010, 980-9I58G-00N030.
Use a connector-appropriate fiber cleaning tool on both mating surfaces before connecting them. Keep protective caps when disconnected.
Public references
Is it safe to look into a connected optical port?
Applicable canonical content subjects: 980-9I554-00N010, 980-9I58G-00N030.
No. Never look directly into an energized optical port or connected fiber; its infrared light can be invisible.
Public references
What distinguishes MFP7E30-N030 from the MMF splitter?
Applicable canonical content subjects: 980-9I58G-00N030.

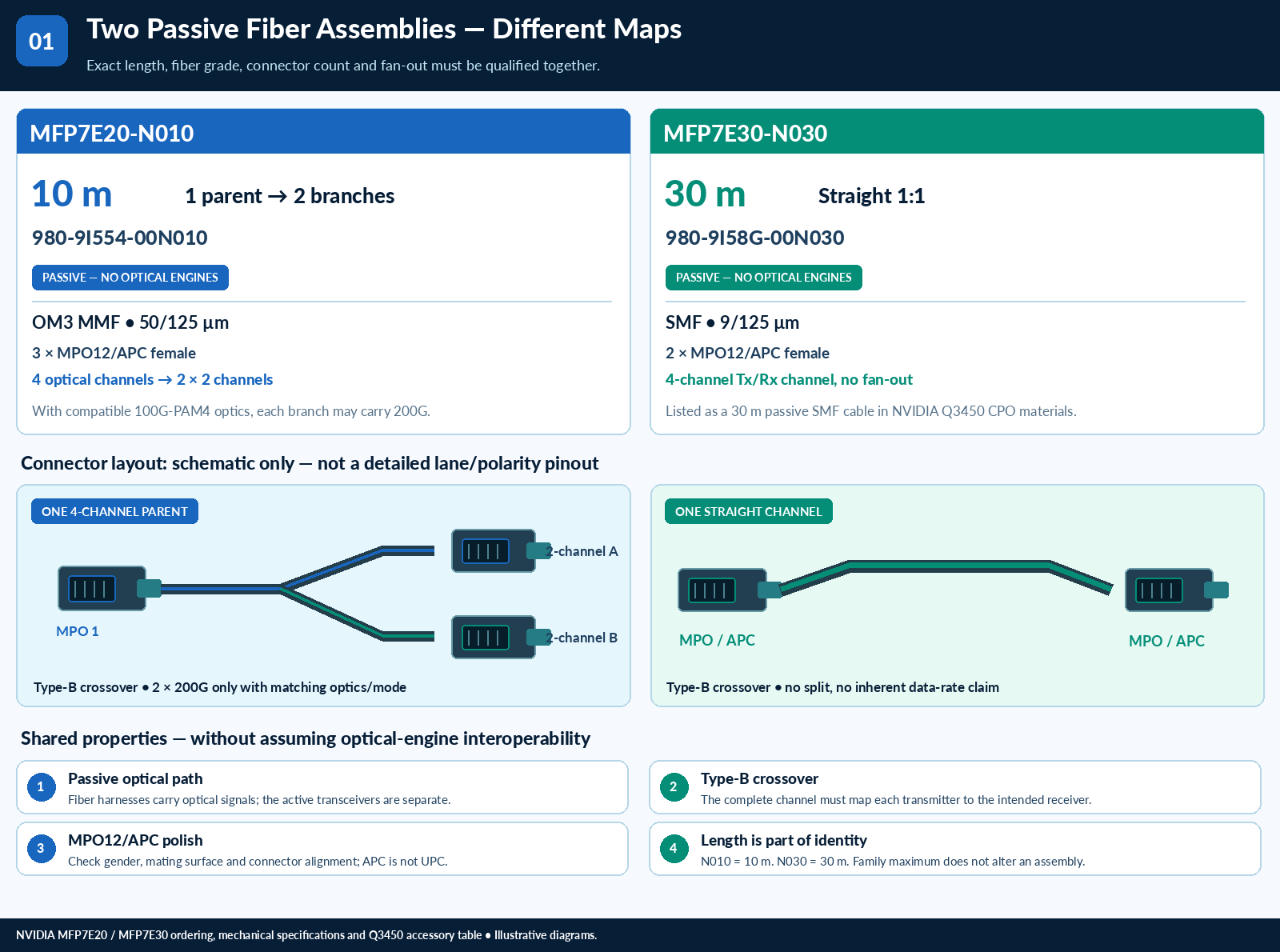

It is a 30 m straight single-mode 9/125 µm assembly, with female MPO12/APC connectors and Type-B crossover. It has no fan-out.
Public references
- NVIDIA MFP7E30-Nxxx MPO-to-MPO Single-mode Fiber Cable Product Specifications | NVIDIA MFP7E30-Nxxx MPO-to-MPO Single-mode Fiber Cable Product Specifications
- Ordering Information | NVIDIA MFP7E30-Nxxx MPO-to-MPO Single-mode Fiber Cable Product Specifications
- Specifications | NVIDIA MFP7E30-Nxxx MPO-to-MPO Single-mode Fiber Cable Product Specifications
Does the family maximum change this cable’s length?
Applicable canonical content subjects: 980-9I58G-00N030.
No. The selected N030 assembly is 30 m. A longer family maximum does not change the physical length of this SKU.
Public references
- Ordering Information | NVIDIA MFP7E30-Nxxx MPO-to-MPO Single-mode Fiber Cable Product Specifications
What must match at the two optical ends?
Applicable canonical content subjects: 980-9I58G-00N030.
Match single-mode optical format, MPO/APC polish, channel mapping and end-to-end loss. An optical module’s OSFP or QSFP host shell does not change the required fiber interface.
Public references
- NVIDIA MFP7E30-Nxxx MPO-to-MPO Single-mode Fiber Cable Product Specifications | NVIDIA MFP7E30-Nxxx MPO-to-MPO Single-mode Fiber Cable Product Specifications
- MMS1X00-NS400 Product Specifications
Is there an exact CPO-related reference?
Applicable canonical content subjects: 980-9I58G-00N030.
Yes. NVIDIA’s Q3450 accessory table lists 980-9I58G-00N030 in its CPO topology section. This does not validate arbitrary optical modules attached to that fiber.
