网络线缆

MFP7E20-N010

NVIDIA MFP7E20-N010 10 m MPO/APC 1:2 Splitter Crossover Fiber Cable

P/N:MFP7E20-N010SKU: 980-9I554-00N010SwitchInfra item:7624品牌: NVIDIA
规格参数

MFP7E20-N010 specifications

介质50/125 micrometer multimode fiber; OM3 at this <=30m length; Aqua LSZH-OFNR jacket
Cable Length10 m
imageNoteManufacturer reference image. Included components and condition follow the selected item.
品牌NVIDIA
型号MFP7E20-N010
电源规格No active optical/electrical engines
PolishAPC
PolarityType B crossover
Topology1:2 Splitter Crossover
成色全新
接口Four-channel MPO/APC to two two-channel MPO/APC branches
Cable TypePassive multimode fiber assembly
Connectorsfemale MPO12/APC to two female MPO12/APC; Type-B crossover
Fiber Type多模光纤
料号MFP7E20-N010
Branch count2
Ordering Number980-9I554-00N010
Thermal profilenot applicable to passive fiber
Interconnect typepassive_optical_fiber_splitter
Active fiber count8
Optical return loss db≥ 35
Minimum bend radius (mm)30
Nominal cable length (m)10
Optical insertion loss db≤ 0.35 + 0.0004 × L(m), per source connector-end-face formula
Case temperature (degrees C)0 to 70
Manufacturer lifecycle phaseMP

下单前确认

  • 确认准确的 SKU、料号、规格选项与数量。
  • 确认主机平台、端口、电气接口与固件兼容要求。
  • 付款前确认库存、交期、目的地与适用售后条款。
产品描述

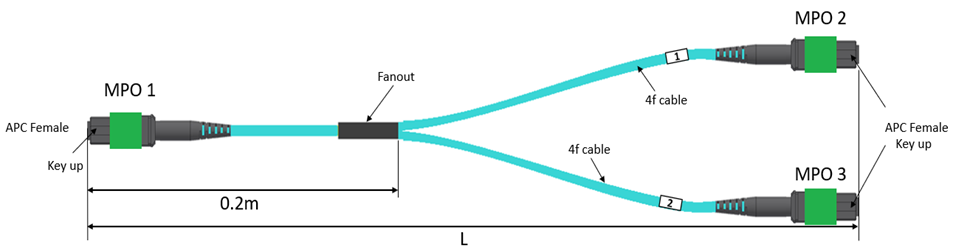

MFP7E20-N010 is a 10 m multimode 1:2 splitter crossover assembly. Four-channel MPO/APC to two two-channel MPO/APC branches. Select the endpoint mode, connector polish and polarity together; the cable does not convert signaling formats.

原厂资料

产品问答

Is it safe to look into a connected optical port?

No. Never look directly into an energized optical port or connected fiber; its infrared light can be invisible.

Is MFP7E20-N010 an AOC?

No. It is a 10 m passive multimode fiber splitter with female MPO/APC connectors. Separate optical engines are required.

What breakout does one assembly provide?

It routes one four-channel optical port to two two-channel optical ports. With the documented 100G-PAM4 transceivers, that creates two 200G branches.

Which fiber grade is specified for the 10 m version?

The specification uses OM3 for lengths up to 30 m, so the N010 assembly is OM3, 50/125 µm. Its connector topology is Type-B crossover.

How many assemblies split a twin-port optic into four links?

Two, one for each optical port. The MMA4Z00-NS guidance requires both optical connections to use the same straight-versus-splitter configuration.

How should detachable optical connectors be cleaned?

Use a connector-appropriate fiber cleaning tool on both mating surfaces before connecting them. Keep protective caps when disconnected.
