网络线缆

MFP7E30-N030

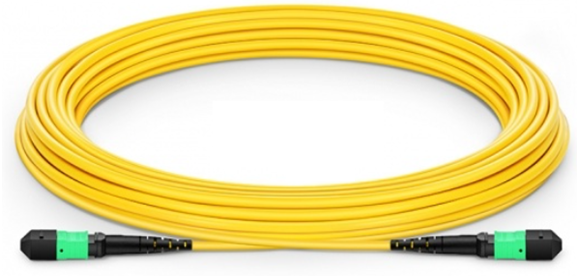

NVIDIA MFP7E30-N030 MPO Fiber Cable 30 m

P/N:MFP7E30-N030SKU: 980-9I58G-00N030SwitchInfra item:7653品牌: NVIDIA
规格参数

MFP7E30-N030 specifications

接口：MPO-12 APC to MPO-12 APC; Fiber Type: Single-mode fiber; Polish: APC; Cable Length: 30 m.
介质9/125 micrometer single-mode fiber; yellow LSZH-OFNR jacket
Cable Length30 m
imageNoteManufacturer reference image. Included components and condition follow the selected item.
品牌NVIDIA
型号MFP7E30-N030
电源规格No active optical/electrical engines
PolishAPC
PolarityType B crossover
成色全新
接口MPO-12 APC to MPO-12 APC
Cable TypePassive fiber cable
Connectorsfemale MPO12/APC to female MPO12/APC; Type-B crossover
Fiber Type单模光纤
料号MFP7E30-N030
Branch count1
Lane mappingfour optical channels per direction; eight active fibers
Thermal profilenot applicable to passive fiber
Breakout topologyNone in this SKU; straight 4-channel MPO-to-MPO optical link
Interconnect typepassive_optical_fiber_cable
Active fiber count8
Fiber core cladding um9/125
Minimum bend radius (mm)30
Nominal cable length (m)30
Case temperature (degrees C)0 to 70
Manufacturer lifecycle phaseMP

下单前确认

  • 确认准确的 SKU、料号、规格选项与数量。
  • 确认主机平台、端口、电气接口与固件兼容要求。
  • 付款前确认库存、交期、目的地与适用售后条款。
产品描述
NVIDIA MFP7E30-N030 is a 30 m single-mode passive fiber cable with female MPO12/APC connectors and a straight Type-B crossover topology. The 9/125 µm assembly carries four optical channels in each direction and is listed in NVIDIA’s Q3450 CPO topology accessories.

产品问答

Is it safe to look into a connected optical port?

No. Never look directly into an energized optical port or connected fiber; its infrared light can be invisible.

What distinguishes MFP7E30-N030 from the MMF splitter?

It is a 30 m straight single-mode 9/125 µm assembly, with female MPO12/APC connectors and Type-B crossover. It has no fan-out.

Does the family maximum change this cable’s length?

No. The selected N030 assembly is 30 m. A longer family maximum does not change the physical length of this SKU.

What must match at the two optical ends?

Match single-mode optical format, MPO/APC polish, channel mapping and end-to-end loss. An optical module’s OSFP or QSFP host shell does not change the required fiber interface.

Is there an exact CPO-related reference?

Yes. NVIDIA’s Q3450 accessory table lists 980-9I58G-00N030 in its CPO topology section. This does not validate arbitrary optical modules attached to that fiber.

How should detachable optical connectors be cleaned?

Use a connector-appropriate fiber cleaning tool on both mating surfaces before connecting them. Keep protective caps when disconnected.
