Choose AI Network Cables by the Complete Link

A cable selection starts with two endpoints and an intended operating mode. Product names such as OSFP, 800G or splitter describe only part of the requirement.

NVIDIA’s LinkX overview groups passive copper, active copper, optical cables, transceivers and fiber assemblies within a wider adapter-and-switch ecosystem. That family description is a starting point, not proof that any two parts form a supported link. LinkX ecosystem overview

Write one link record before selecting a part

Capture the source device and physical port, destination device and port, protocol, target rate, lane mapping, approximate routed distance and rack environment. Add the software and firmware releases that will be used during acceptance.

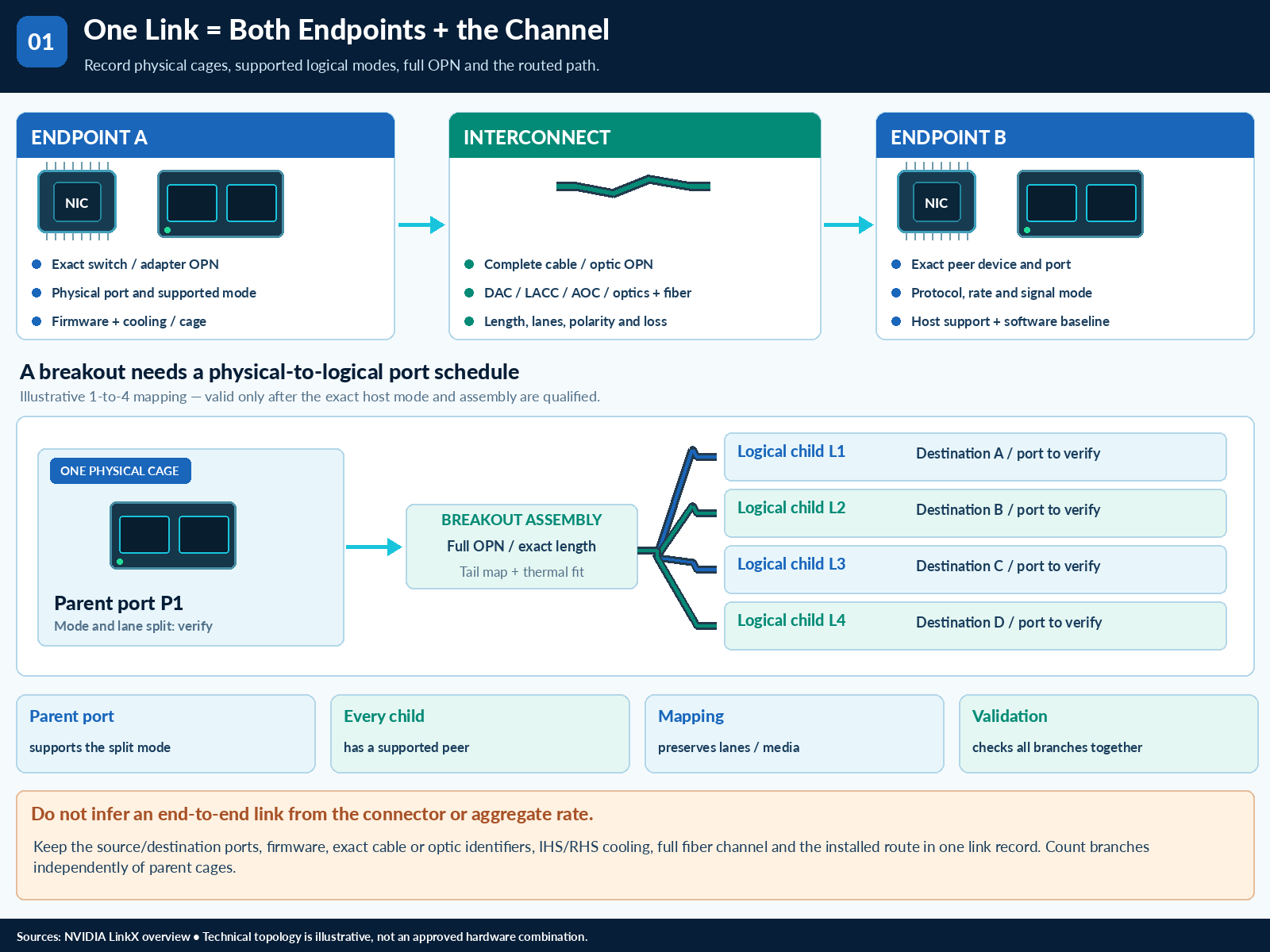

For breakout links, draw each branch and its destination. Count logical links separately from connector cages. A purchase list with the right total bandwidth can still contain the wrong fan-out.

Check the physical and optical boundaries

Verify the thermal design at both endpoints, including the required heatsink arrangement. Record fiber type, connector, polish, polarity and supported reach for the exact transceiver pair. Do not infer compatibility from a connector that appears to fit.

A management link should be selected against its own endpoint requirements. A 1GbE module has a different purpose from the GPU fabric; it should not inherit an AI-performance claim merely because both appear in the same project.

Apply port-specific restrictions

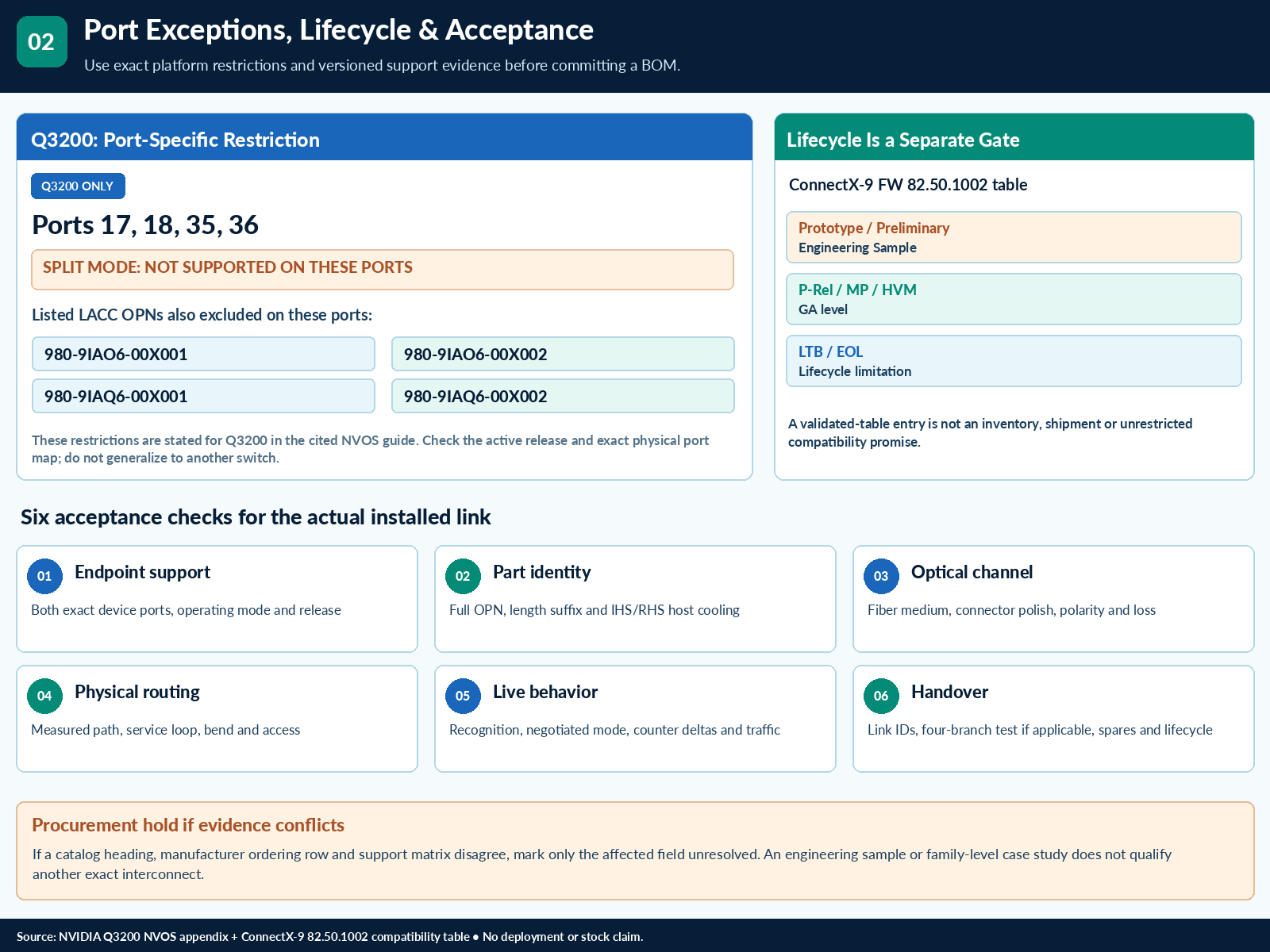

Some restrictions apply to particular ports, not the entire switch family. For example, NVIDIA’s Q3200 guidance excludes split mode and specified LACC parts on ports 17, 18, 35 and 36. Read the exact list and relevant release before wiring. This Q3200 example must not be generalized to another switch. Q3200 design constraints

Verify lifecycle as well as compatibility

A supported-products table can contain engineering samples alongside general-availability parts. NVIDIA’s ConnectX-9 table explicitly separates these lifecycle categories. A row’s presence therefore does not establish commercial readiness. Versioned compatibility and lifecycle table

Close with a documented acceptance test

After installation, confirm device recognition, negotiated rate, error counters and sustained traffic on every intended path. Exercise breakout branches individually and together. Save serial numbers, labels and results so a replacement can be checked against the same baseline.

The final bill of materials should contain complete order codes and approved alternatives. If the title, ordering row and support matrix disagree, keep the affected field unresolved until the manufacturer clarifies it. A historical deployment or a family-level case study cannot resolve an exact-part conflict.

Sources checked: 10 October 2026. This article discusses third-party evidence or an explicitly labeled engineering scenario; it does not establish a reseller’s delivery history, current stock or exact-SKU deployment.

Turn the selected topology into a purchase line

Decision	Confirmed example	Information still needed for the project
100G separate optics	MMA1B00-C100D: QSFP28 SR4, MPO/UPC; 70 m OM3 or 100 m OM4 at 100GbE	Both host ports and firmware; fiber grade and complete channel loss
400G separate optics	MMA4Z00-NS400-T: flat-top single-port OSFP, MPO-12/APC; 30 m OM3 or 50 m OM4	Cage cooling, opposite module and panel count; the 50 m OM4 description assumes two optical patch panels
One-to-one fiber path	MFP7E10-N003: 3 m straight crossover, four-channel MPO/APC at both ends	Port-to-port mapping and polarity
One parent and two branches	MFP7E20-N003: 3 m 1:2 splitter crossover, four-channel parent to two two-channel branches	Supported parent breakout mode and both receiving-port modes

These rows are separate selection examples, not an interchangeable set. The UPC 100G module must not be directly mated to these APC assemblies. A passive splitter routes channels; it does not convert modulation. The linked product pages retain the exact ordering numbers and manufacturer references.

Give purchasing one row per logical link: source and destination device/port, module PN, cable PN and length, branch label, quantity (or undecided), destination and acceptance owner. Download the link schedule, compare the AI Ethernet fabric plan, or send an incomplete project request. Missing equipment or quantities can be explained in the request; no compatibility result is implied by submitting it.
