BlueField-3 AUX technical selection Q&A
Owner-confirmed and documentation-backed questions with explicit variant applicability and source boundaries.
These questions were prepared for technical evaluation from cited documentation. They are not a measured list of frequently asked customer questions. The applicability line belongs to each answer; do not transfer a statement between order-code, firmware, cooling, length, form-factor or crypto variants.
The products listed below are the applicable catalog references. Answers use owner-confirmed manufacturer-origin product data, scoped public documentation, or explicitly stated engineering guidance. Genuine conflicting values are qualified individually.
Is this a NIC or a supporting component?
Applicable catalog candidates: 930-9DAX4-0035-000, 930-9DAX5-0015-000.
It is an auxiliary PCIe connection kit, not a standalone Ethernet or InfiniBand adapter.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
What harness length is specified?
Applicable catalog candidates: 930-9DAX4-0035-000.
350 mm. Cable length is part of the exact selection; the T15, T25 and T35 options are not interchangeable descriptions.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
Which PCIe generation is documented?
Applicable catalog candidates: 930-9DAX4-0035-000.
This item is specified for Gen4.0 x16 auxiliary connectivity.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.

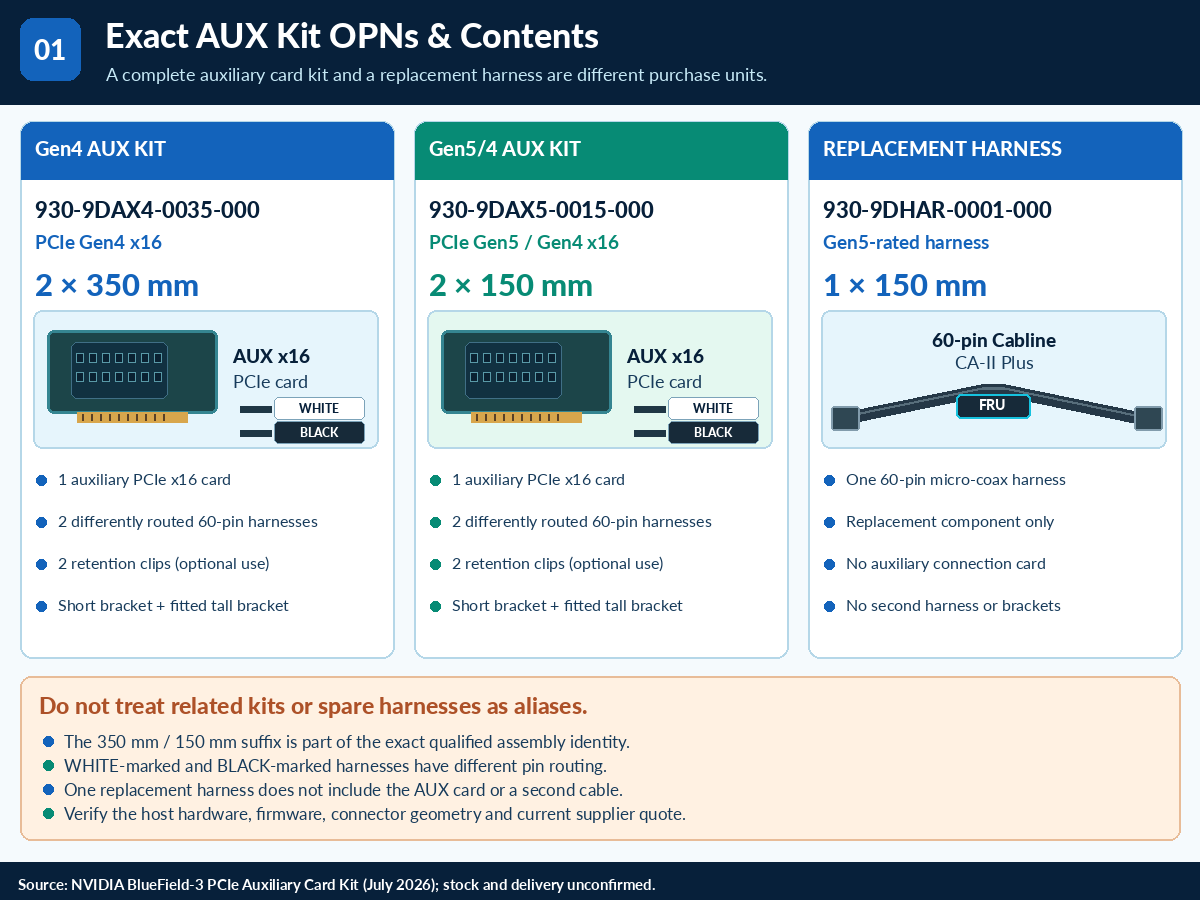

What is included?
Applicable catalog candidates: 930-9DAX4-0035-000, 930-9DAX5-0015-000.
One auxiliary connection card, one white and one black harness, retention clips, a short bracket and a fitted tall bracket are listed.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.

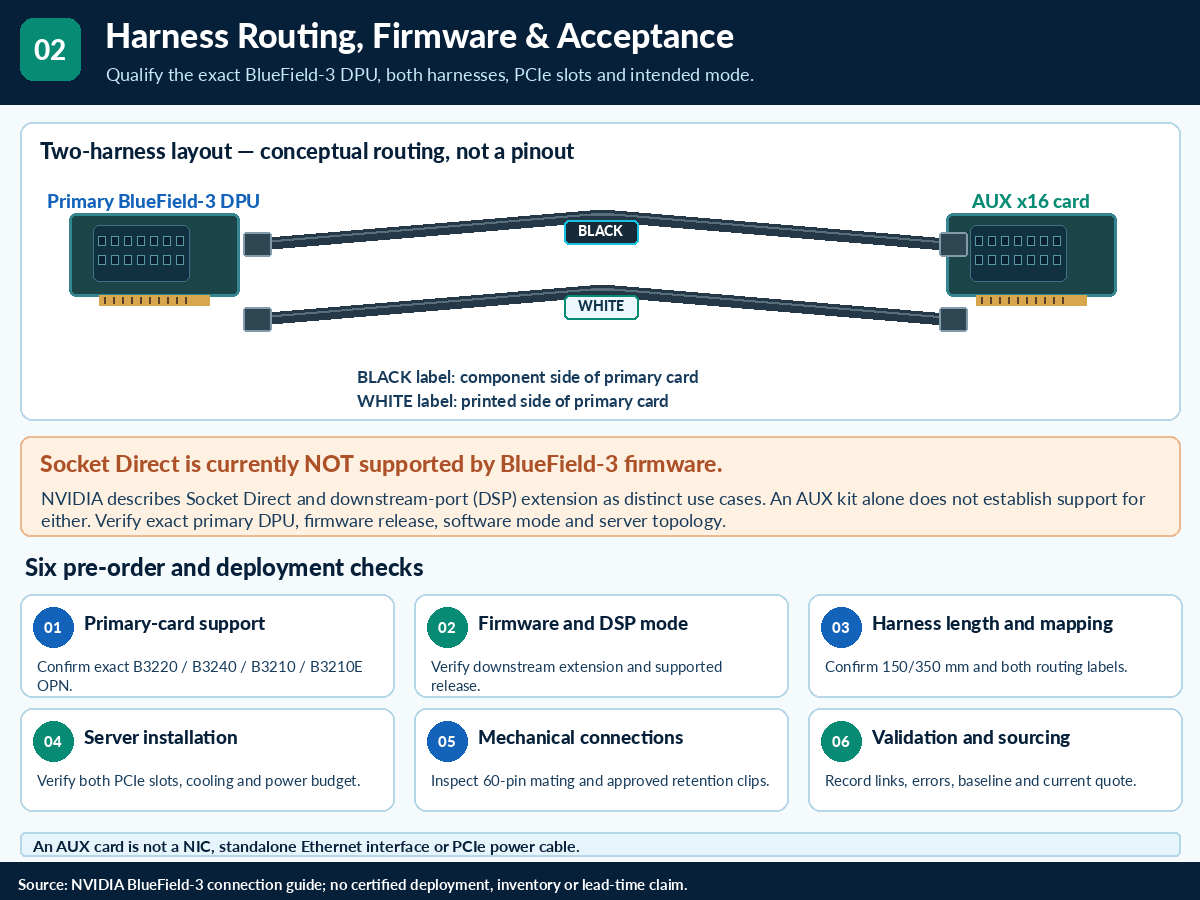

Will adding the kit enable Socket Direct by itself?
Applicable catalog candidates: 930-9DAX4-0035-000, 930-9DAX5-0015-000, 930-9DHAR-0001-000.
No. Primary-card compatibility, server topology and firmware support are separate requirements. The current BF3 introduction warns Socket Direct is not firmware-supported.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
What must be checked before treating the identifiers as aliases?
Applicable catalog candidates: 930-9DAX4-0035-000, 930-9DAX5-0015-000, 930-9DHAR-0001-000.
Keep this complete 930 order code. Similar Socket Direct and self-hosted kits have different purposes and harness lengths.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
What harness length is specified?
Applicable catalog candidates: 930-9DAX5-0015-000, 930-9DHAR-0001-000.
150 mm. Cable length is part of the exact selection; the T15, T25 and T35 options are not interchangeable descriptions.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
Which PCIe generation is documented?
Applicable catalog candidates: 930-9DAX5-0015-000.
This item is specified for Gen5.0/4.0 x16 auxiliary connectivity.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
Is this a NIC or a supporting component?
Applicable catalog candidates: 930-9DHAR-0001-000.
It is a replacement harness, not a card or complete kit.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
Which PCIe generation is documented?
Applicable catalog candidates: 930-9DHAR-0001-000.
This item is specified for Gen5.0 connectivity; it is a harness, not a PCIe controller.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
What is included?
Applicable catalog candidates: 930-9DHAR-0001-000.
A replacement 60-pin Cabline CA-II Plus micro-coax harness is described. Do not assume an auxiliary card or paired harness set is included.
Public references: PCIe Auxiliary Card Kit | NVIDIA BlueField-3 Networking Platform User Guide, Technical Specifications | NVIDIA BlueField-3 Networking Platform User Guide, [Optional] PCIe Extension Connection (2x PCIe x16) Installation Instructions | NVIDIA BlueField-3 Networking Platform User Guide, PCIe Auxiliary Card Kit | NVIDIA ConnectX-7 Adapter Cards User Manual, PCIe Auxiliary Kit Technical Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual, Introduction | NVIDIA BlueField-3 Networking Platform User Guide.
Availability is on request. Sales provides the USD quotation after the exact configuration is confirmed. No stock, condition or delivery promise is made here.
