Bracket for Adapter technical selection Q&A
Owner-confirmed and documentation-backed questions with explicit variant applicability and source boundaries.
These questions were prepared for technical evaluation from cited documentation. They are not a measured list of frequently asked customer questions. The applicability line belongs to each answer; do not transfer a statement between order-code, firmware, cooling, length, form-factor or crypto variants.
The products listed below are the applicable catalog references. Answers use owner-confirmed manufacturer-origin product data, scoped public documentation, or explicitly stated engineering guidance. Genuine conflicting values are qualified individually.

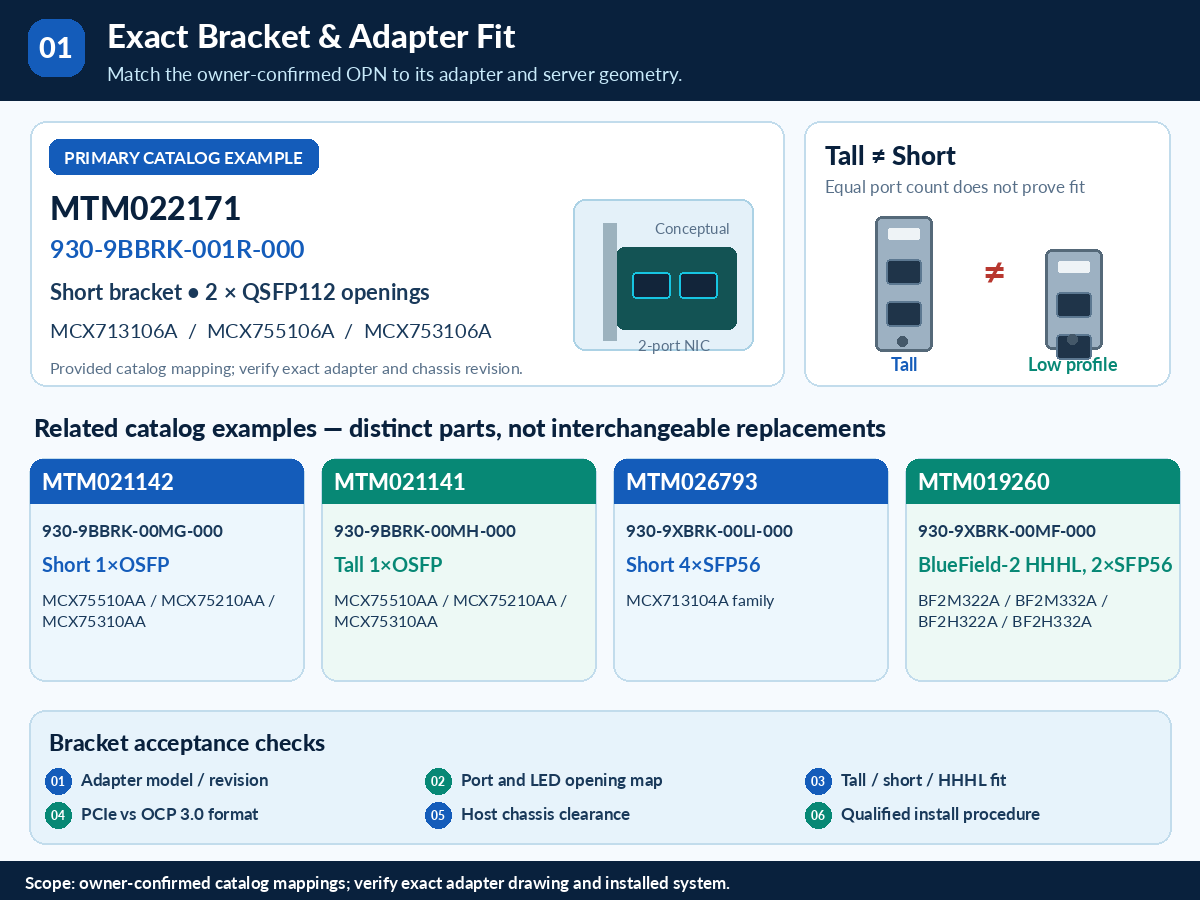

What is the specified configuration of MTM022171?
Applicable catalog candidates: 930-9BBRK-001R-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Short bracket for 2-port QSFP-112 adapter. Fits: MCX713106A;MCX755106A;MCX753106A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
Can a tall bracket replace a low-profile bracket on any card?
Applicable catalog candidates: 930-9BBRK-001R-000, 930-9BBRK-00L3-000, 930-9BBRK-00LT-000, 930-9BBRK-00LU-000, 930-9BBRK-00LV-000, 930-9BBRK-00LW-000, 930-9BBRK-00M8-000, 930-9BBRK-00M9-000, 930-9BBRK-00MC-000, 930-9BBRK-00MD-000, 930-9BBRK-00ME-000, 930-9BBRK-00MG-000, 930-9BBRK-00MH-000, 930-9OBRK-00M3-000, 930-9XBRK-0027-520, 930-9XBRK-00LE-000, 930-9XBRK-00LF-000, 930-9XBRK-00LI-000, 930-9XBRK-00MA-000, 930-9XBRK-00MB-000, 930-9XBRK-00MF-000, 930-9XBRK-00MH-000, 930-9XBRK-00MI-000, 930-9XBRK-00YE-000.
Documentation scope: General adapter-bracket selection; no unverified FRU-to-card binding.
Check the exact adapter’s mechanical drawing and installation guide. NVIDIA documents distinct tall and short brackets; use the matching port openings and mounting arrangement rather than visual similarity.
Public references: Specifications | NVIDIA ConnectX-4 Lx Ethernet Adapter Cards User Manual, Introduction | NVIDIA ConnectX-6 Lx Ethernet Adapter Cards User Manual.

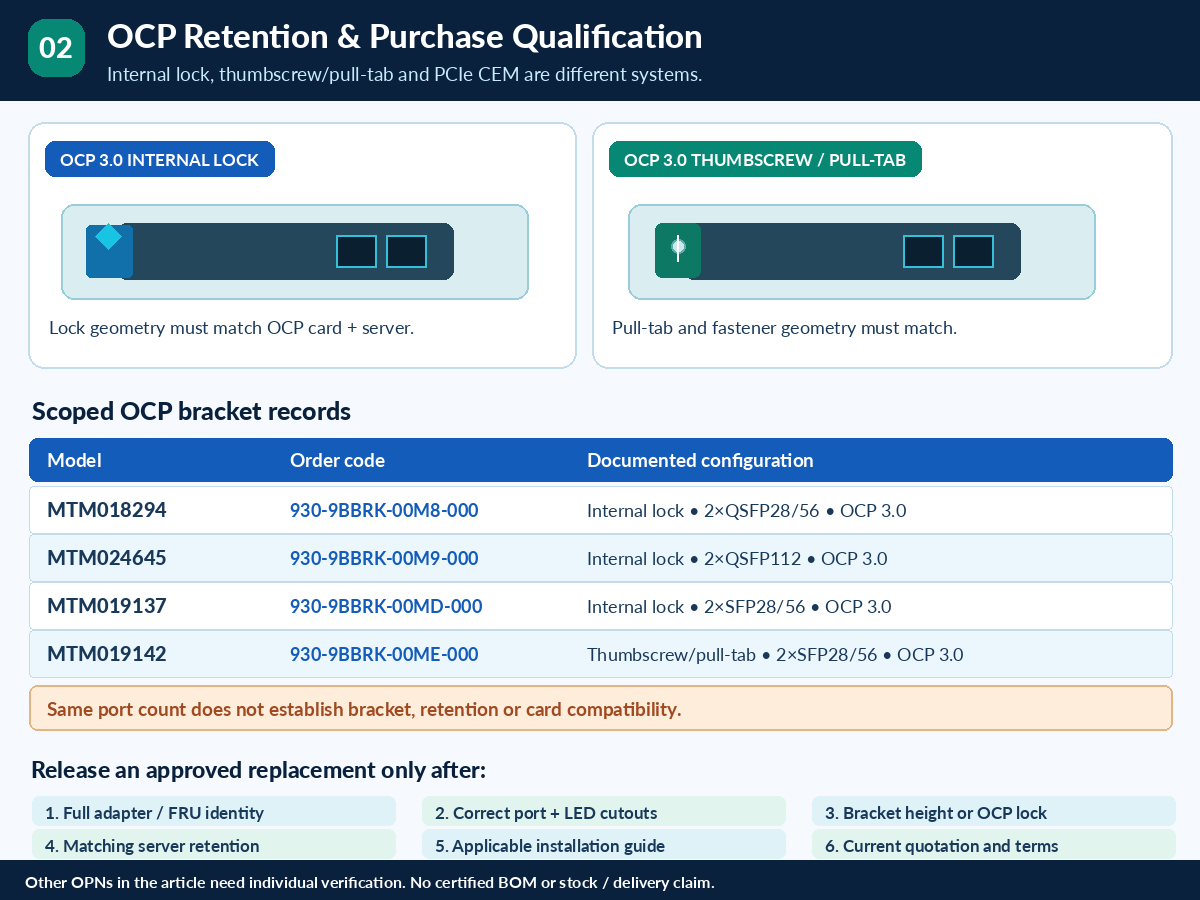

Why does the OCP retention mechanism matter?
Applicable catalog candidates: 930-9BBRK-001R-000, 930-9BBRK-00L3-000, 930-9BBRK-00LT-000, 930-9BBRK-00LU-000, 930-9BBRK-00LV-000, 930-9BBRK-00LW-000, 930-9BBRK-00M8-000, 930-9BBRK-00M9-000, 930-9BBRK-00MC-000, 930-9BBRK-00MD-000, 930-9BBRK-00ME-000, 930-9BBRK-00MG-000, 930-9BBRK-00MH-000, 930-9OBRK-00M3-000, 930-9XBRK-0027-520, 930-9XBRK-00LE-000, 930-9XBRK-00LF-000, 930-9XBRK-00LI-000, 930-9XBRK-00MA-000, 930-9XBRK-00MB-000, 930-9XBRK-00MF-000, 930-9XBRK-00MH-000, 930-9XBRK-00MI-000, 930-9XBRK-00YE-000.
Documentation scope: OCP 3.0 bracket selection; not all bracket codes are publicly mapped.
OCP cards can use internal-lock or thumbscrew/pull-tab retention. The adapter ordering and installation documentation distinguishes them, so the bracket must match the card and server retention arrangement.
Public references: Specifications | NVIDIA ConnectX-5 Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Hardware Installation | NVIDIA ConnectX-5 Ethernet Adapter Cards for OCP Spec 3.0 User Manual.
Does the same number of ports prove bracket compatibility?
Applicable catalog candidates: 930-9BBRK-001R-000, 930-9BBRK-00L3-000, 930-9BBRK-00LT-000, 930-9BBRK-00LU-000, 930-9BBRK-00LV-000, 930-9BBRK-00LW-000, 930-9BBRK-00M8-000, 930-9BBRK-00M9-000, 930-9BBRK-00MC-000, 930-9BBRK-00MD-000, 930-9BBRK-00ME-000, 930-9BBRK-00MG-000, 930-9BBRK-00MH-000, 930-9OBRK-00M3-000, 930-9XBRK-0027-520, 930-9XBRK-00LE-000, 930-9XBRK-00LF-000, 930-9XBRK-00LI-000, 930-9XBRK-00MA-000, 930-9XBRK-00MB-000, 930-9XBRK-00MF-000, 930-9XBRK-00MH-000, 930-9XBRK-00MI-000, 930-9XBRK-00YE-000.
Documentation scope: Adapter mechanical-fit guidance.
No. Port arrangement, bracket height and mechanical details matter. NVIDIA notes specific mechanical differences for the quad-port SFP56 ConnectX-7 card and recommends checking the mechanical model.
Public references: Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual.
What should I match when ordering a replacement bracket?
Applicable catalog candidates: 930-9BBRK-001R-000, 930-9BBRK-00L3-000, 930-9BBRK-00LT-000, 930-9BBRK-00LU-000, 930-9BBRK-00LV-000, 930-9BBRK-00LW-000, 930-9BBRK-00M8-000, 930-9BBRK-00M9-000, 930-9BBRK-00MC-000, 930-9BBRK-00MD-000, 930-9BBRK-00ME-000, 930-9BBRK-00MG-000, 930-9BBRK-00MH-000, 930-9OBRK-00M3-000, 930-9XBRK-0027-520, 930-9XBRK-00LE-000, 930-9XBRK-00LF-000, 930-9XBRK-00LI-000, 930-9XBRK-00MA-000, 930-9XBRK-00MB-000, 930-9XBRK-00MF-000, 930-9XBRK-00MH-000, 930-9XBRK-00MI-000, 930-9XBRK-00YE-000.
Documentation scope: Owner-confirmed catalog configuration plus explicitly scoped public documentation.
Match the complete adapter family, port openings, bracket height and retention method to the listed bracket. Use the product compatibility entry together with the adapter installation guide.
Public references: Specifications | NVIDIA ConnectX-7 Adapter Cards User Manual.
What is the specified configuration of MTM018774?
Applicable catalog candidates: 930-9BBRK-00L3-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Tall Perforated bracket 1 ZQSFP port 2 leds. Fits MCX651105A/MCX623105A/MCX683105A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM016918?
Applicable catalog candidates: 930-9BBRK-00LT-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Tall bracket 2 ZSFP port 4 leds. Fits CX654106A, CX653106A/CX614106A/CX613106A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM016919?
Applicable catalog candidates: 930-9BBRK-00LU-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Short bracket for 2-port ZQSFP adapter. Fits: MCX654106A, MCX614106A, MCX653106A, MCX613106A, MCX623106A, MCX622106A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM016920?
Applicable catalog candidates: 930-9BBRK-00LV-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Tall Perforated bracket 1 ZQSFP port 2 leds. Fits MCX614105A / MCX654105A / MCX613105A /MCX653105A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM016921?
Applicable catalog candidates: 930-9BBRK-00LW-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Short Perforated bracket 1 ZQSFP port 2 leds. Fits MCX653105A/ MCX613105A/ MCX654105A/ MCX614105A/ MCX623105A/ MCX683105A/ MCX651105A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM018294?
Applicable catalog candidates: 930-9BBRK-00M8-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, OCP3.0, 10 units of Internal Lock Bracket for 2 QSFP28/56, Fits CX566 / CX613436 / CX653436 / CX623436.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM024645?
Applicable catalog candidates: 930-9BBRK-00M9-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, OCP3.0, 10 units of Internal Lock Bracket for 2 QSFP112, Fits MCX75343.
What is the specified configuration of MTM018772?
Applicable catalog candidates: 930-9BBRK-00MC-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Tall Perforated bracket 2 SFP+ port 4 leds. Fits MCX623102A / MCX622102A / MCX621102A / MCX631102A.
What is the specified configuration of MTM019137?
Applicable catalog candidates: 930-9BBRK-00MD-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, OCP3.0 10 units of Internal Lock Bracket for 2 SFP28/56, Fits CX4621 / CX562 / CX623432 / CX631432.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM019142?
Applicable catalog candidates: 930-9BBRK-00ME-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, OCP3.0 10 units of Thumbscrew (Pull Tab) Bracket for 2 SFP28/56, Fits CX4621 / CX562 / CX623432 / CX631432A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM021142?
Applicable catalog candidates: 930-9BBRK-00MG-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Short bracket 1 OSFP port 4 leds. Fits MCX75510AA, MCX75210AA, MCX75310AA.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM021141?
Applicable catalog candidates: 930-9BBRK-00MH-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Tall bracket for 1 OSFP port 4 leds. Fits MCX75510AA, MCX75210AA, MCX75310AA.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM017689?
Applicable catalog candidates: 930-9OBRK-00M3-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, OCP3.0, 10 units of Ejector latch Bracket for 2 QSFP28/56, Fits CX566 / CX613436 / CX653436 / CX623436.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of 930-9XBRK-0027-520?
Applicable catalog candidates: 930-9XBRK-0027-520.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
OCP 3.0 TSFF 1P OSFP Internal Lock Bracket fits C8180P / C9180P.
What is the specified configuration of MTM010641?
Applicable catalog candidates: 930-9XBRK-00LE-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Tall Perforated bracket for 2-port SFP28 adapter. Fits MCX4121A /MCX512A/MCX512F.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM010642?
Applicable catalog candidates: 930-9XBRK-00LF-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Short Perforated bracket for 2-port SFP28 adapter. Fits MCX4121A/ MCX512A / MCX512F.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM026793?
Applicable catalog candidates: 930-9XBRK-00LI-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Short Bracket 4 SFP56 ports. Fits MCX713104A family of cards.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM018633?
Applicable catalog candidates: 930-9XBRK-00MA-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, OCP3.0, 10 units of Thumbscrew (Pull Tab) Bracket for 1 QSFP28/56, Fits CX565 / CX613435 / CX653435 / CX623435 / CX631435.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM018771?
Applicable catalog candidates: 930-9XBRK-00MB-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Tall bracket for 2-port QSFP56 adapter. Fits MCX623106A/CX622106A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM019260?
Applicable catalog candidates: 930-9XBRK-00MF-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, BlueField-2, 10 units of HHHL brackets for 2 SFP56 cages, fits BF2M322A, BF2M332A, BF2H322A, BF2H332A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM021260?
Applicable catalog candidates: 930-9XBRK-00MH-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, BlueField-2, 10 units of HHHL brackets for 1 QSFP56 cage, fits BF2M345A.
Public references: PNY NVIDIA Networking Product Range, May 2025.
What is the specified configuration of MTM020718?
Applicable catalog candidates: 930-9XBRK-00MI-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU, ConnectX, 10 units of PCIe CEM NIC assembly separator.
What is the specified configuration of MTM017962-M?
Applicable catalog candidates: 930-9XBRK-00YE-000.
Documentation scope: Exact owner-confirmed product; any held field is explicitly identified in this record.
FRU Short Perforated bracket for 2-port SFP+ adapter. Fits MCX623102A/ MCX621102A/ MCX631102A.
Availability is on request. Sales provides the USD quotation after the exact configuration is confirmed. No stock, condition or delivery promise is made here.
