NETWORK HARDWARE

FG-31G

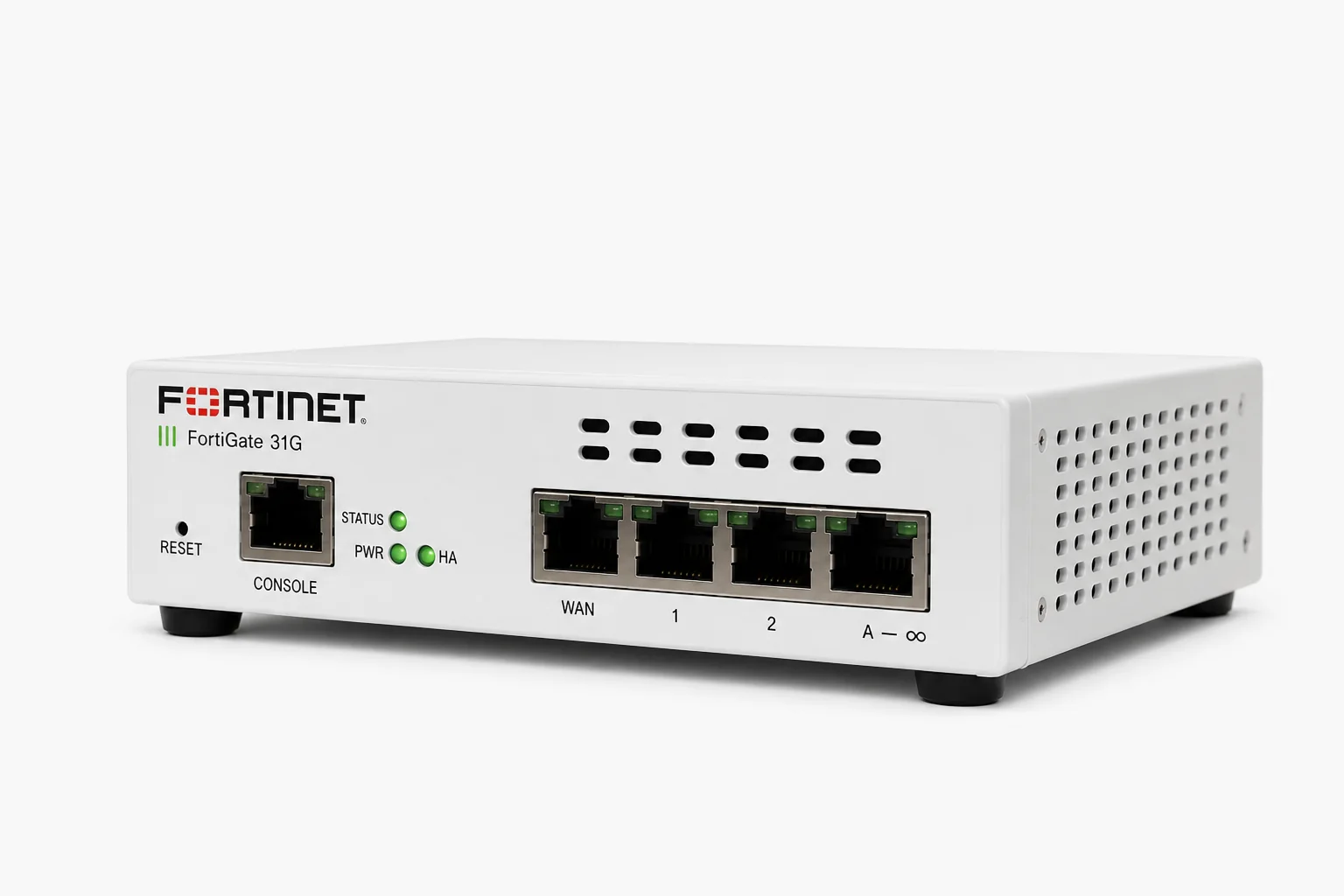

Fortinet FortiGate 31G Hardware Only

P/N:FG-31GSKU: FG-31GSwitchInfra item:7156Brand: Fortinet

Features

  • Published Fortinet specifications
  • Licensing and support boundary
  • Interfaces and form factor
Specifications

FG-31G technical overview

ModelFG-31G
BrandFortinet
Form FactorDesktop
Dimensions40.5 x 142 x 160 mm
Weight0.6 kg / 1.3 lb
Operating Temperature0 to 40C
Power12VDC, 2A external adapter
ConditionUsed
ComplianceFCC, IC, CE, UL/cUL, CB, VCCI, BSMI, RCM, UKCA
Interfaces4x GE RJ45 ports including 1x WAN, 2x internal, 1x FortiLink default, plus RJ45 console
Max FortiAPs16 / 8
IPS Throughput800 Mbps
NGFW Throughput570 Mbps
Internal Storage30GB SSD
Operating SystemFortiOS
Max FortiSwitches8
Wireless InterfaceNone
Concurrent Sessions600,000
Firewall Throughput4 / 4 / 3.9 Gbps
IPsec VPN Throughput3.5 Gbps
New Sessions per Second30,000
SSL Inspection Throughput400 Mbps
Threat Protection Throughput500 Mbps

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Fortinet FortiGate 31G Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
Features

Published Fortinet specifications

Interface and performance values are sourced from the official Fortinet series data sheet; actual results depend on configuration and enabled services.

Firewall Throughput: 4 / 4 / 3.9 GbpsIPS Throughput: 800 MbpsThreat Protection Throughput: 500 Mbps
Published Fortinet specifications

Licensing and support boundary

FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement. Availability varies by model, FortiOS release, region, and subscription tier.

Active entitlement requiredFortiOS release check requiredRegion and contract check required
Licensing and support boundary

Interfaces and form factor

Published hardware characteristics from the same official series data sheet. Verify the exact model and active service entitlements before deployment.

  • Interfaces: 4x GE RJ45 ports including 1x WAN, 2x internal, 1x FortiLink default, plus RJ45 console
  • Form Factor: Desktop
  • Dimensions: 40.5 x 142 x 160 mm
