NETWORK HARDWARE

FG-50G

Fortinet FortiGate 50G Hardware Only

P/N:FG-50GSKU: FG-50GSwitchInfra item:7159Brand: Fortinet

Features

  • Published Fortinet specifications
  • Licensing and support boundary
  • Interfaces and form factor
Specifications

FG-50G technical overview

ModelFG-50G
BrandFortinet
Form FactorDesktop
Dimensions40.5 x 216 x 160 mm
Weight1.0 kg / 2.2 lb
Operating Temperature0 to 40C
Power12VDC, 3A external adapter
ConditionUsed
ComplianceFCC, ISED, CE, UL/cUL, CB
Max FortiAPs16 / 8
IPS Throughput2.25 Gbps
NGFW Throughput1.25 Gbps
Internal StorageNo onboard storage
Operating SystemFortiOS
Max FortiSwitches8
Wireless InterfaceNone
Concurrent Sessions720,000
Firewall Throughput5 / 5 / 4 Gbps
IPsec VPN Throughput4.5 Gbps
New Sessions per Second85,000
SSL Inspection Throughput1.3 Gbps
Threat Protection Throughput1.1 Gbps

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Fortinet FortiGate 50G Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
Features

Published Fortinet specifications

Interface and performance values are sourced from the official Fortinet series data sheet; actual results depend on configuration and enabled services.

Firewall Throughput: 5 / 5 / 4 GbpsIPS Throughput: 2.25 GbpsThreat Protection Throughput: 1.1 Gbps
Published Fortinet specifications

Licensing and support boundary

FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement. Availability varies by model, FortiOS release, region, and subscription tier.

Active entitlement requiredFortiOS release check requiredRegion and contract check required
Licensing and support boundary

Interfaces and form factor

Published hardware characteristics from the same official series data sheet. Verify the exact model and active service entitlements before deployment.

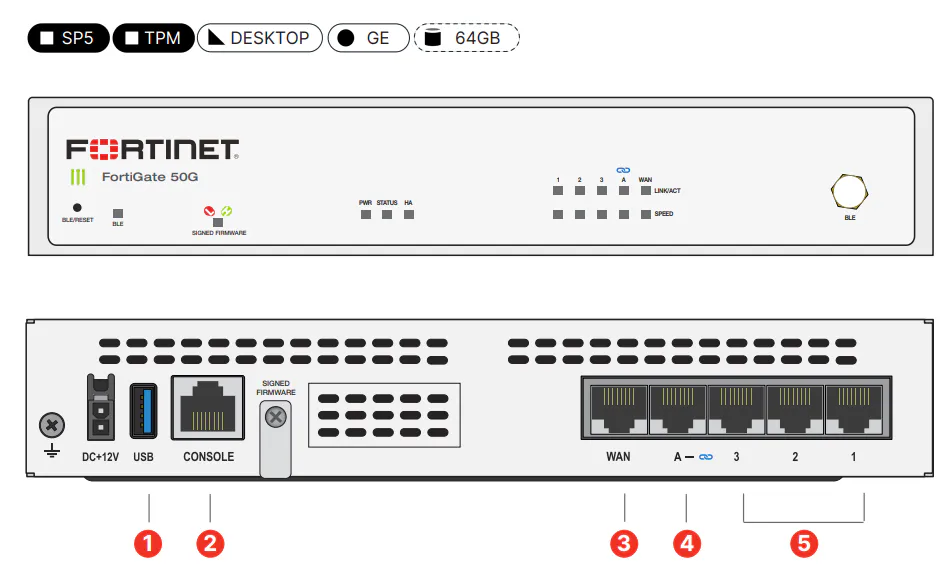

  • Interfaces: 5x GE RJ45 ports including 1x WAN, 3x internal, 1x FortiLink default, plus USB and RJ45 console
  • Form Factor: Desktop
  • Dimensions: 40.5 x 216 x 160 mm
