1 / 2

NETWORK HARDWARE

FG-70G

Fortinet FortiGate 70G Hardware Only

P/N:FG-70GSKU: FG-70GSwitchInfra item:7165Brand: Fortinet

Features

  • Published Fortinet specifications
  • Licensing and support boundary
  • Interfaces and form factor
Specifications

FG-70G technical overview

ModelFG-70G
BrandFortinet
Form FactorDesktop
Dimensions40.5 x 216 x 160 mm
Weight0.91-0.93 kg / 2.01-2.05 lb
Operating Temperature0 to 40C
Power12VDC, 3A external adapter
ConditionUsed
ComplianceFCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Max FortiAPs96 / 48
IPS Throughput2.5 Gbps
NGFW Throughput1.5 Gbps
Internal StorageNo onboard storage
Operating SystemFortiOS
Max FortiSwitches24
Wireless InterfaceNone
Concurrent Sessions1.4 million
Firewall Throughput10 / 10 / 10 Gbps
IPsec VPN Throughput7.1 Gbps
New Sessions per Second100,000
SSL Inspection Throughput1.4 Gbps
Threat Protection Throughput1.3 Gbps

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Fortinet FortiGate 70G Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
Features

Published Fortinet specifications

Interface and performance values are sourced from the official Fortinet series data sheet; actual results depend on configuration and enabled services.

Firewall Throughput: 10 / 10 / 10 GbpsIPS Throughput: 2.5 GbpsThreat Protection Throughput: 1.3 Gbps
Published Fortinet specifications

Licensing and support boundary

FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement. Availability varies by model, FortiOS release, region, and subscription tier.

Active entitlement requiredFortiOS release check requiredRegion and contract check required
Licensing and support boundary

Interfaces and form factor

Published hardware characteristics from the same official series data sheet. Verify the exact model and active service entitlements before deployment.

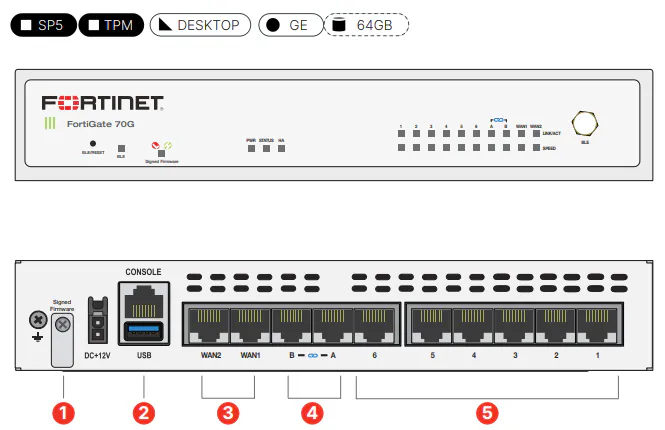

  • Interfaces: 10x GE RJ45 ports including 2x WAN, 1x DMZ, 2x FortiLink default, 5x internal; USB and RJ45 console
  • Form Factor: Desktop
  • Dimensions: 40.5 x 216 x 160 mm
