NETWORK HARDWARE

FG-101F

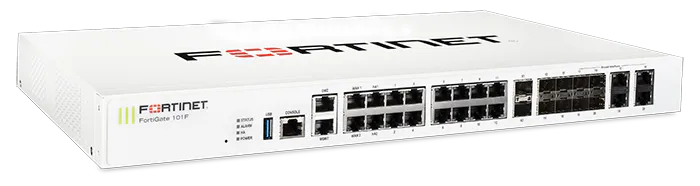

Fortinet FortiGate 101F Hardware Only

P/N:FG-101FSKU: FG-101FSwitchInfra item:7172Brand: Fortinet

Features

  • Published Fortinet specifications
  • Licensing and support boundary
  • Interfaces and form factor
Specifications

FG-101F technical overview

ModelFG-101F
BrandFortinet
Form FactorRack mount, 1RU
Dimensions44 x 432 x 254 mm
Weight7.56 lb / 3.43 kg
Operating Temperature0 to 40C
Power35.3 W / 39.1 W average/maximum
ConditionUsed
Max FortiAPs128 / 64
IPS Throughput2.6 Gbps
Product Series100F Series
NGFW Throughput1.6 Gbps
Internal Storage480GB onboard SSD
Operating SystemFortiOS
Firewall Policies10,000
Max FortiSwitches32
SSL-VPN Throughput1 Gbps
Concurrent Sessions1.5 Million
Firewall Throughput20 / 18 / 10 Gbps
IPsec VPN Throughput11.5 Gbps
Hardware AccelerationFortiASIC acceleration
New Sessions per Second56,000
SSL Inspection Throughput1 Gbps
Threat Protection Throughput1 Gbps
Application Control Throughput2.2 Gbps

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Fortinet FortiGate 101F Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
Features

Published Fortinet specifications

Interface and performance values are sourced from the official Fortinet series data sheet; actual results depend on configuration and enabled services.

Firewall Throughput: 20 / 18 / 10 GbpsIPS Throughput: 2.6 GbpsThreat Protection Throughput: 1 Gbps
Published Fortinet specifications

Licensing and support boundary

FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement. Availability varies by model, FortiOS release, region, and subscription tier.

Active entitlement requiredFortiOS release check requiredRegion and contract check required
Licensing and support boundary

Interfaces and form factor

Published hardware characteristics from the same official series data sheet. Verify the exact model and active service entitlements before deployment.

  • Interfaces: 22x GE RJ45 ports including 2x WAN, 1x DMZ, 1x management, 2x HA, 16x switch ports with 4 SFP shared-media ports; 4x GE SFP ports; 2x 10GE SFP+ FortiLink ports
  • Form Factor: Rack mount, 1RU
  • Dimensions: 44 x 432 x 254 mm

Product questions & answers

Describe what you need. You can start without a confirmed quantity or host model.

Connectivity Solutions
Firewall deployment reference

Size FG-101F against the target interfaces, throughput, session scale, topology, FortiOS release, and active license entitlements before deployment.
