NETWORK HARDWARE

FG-201G

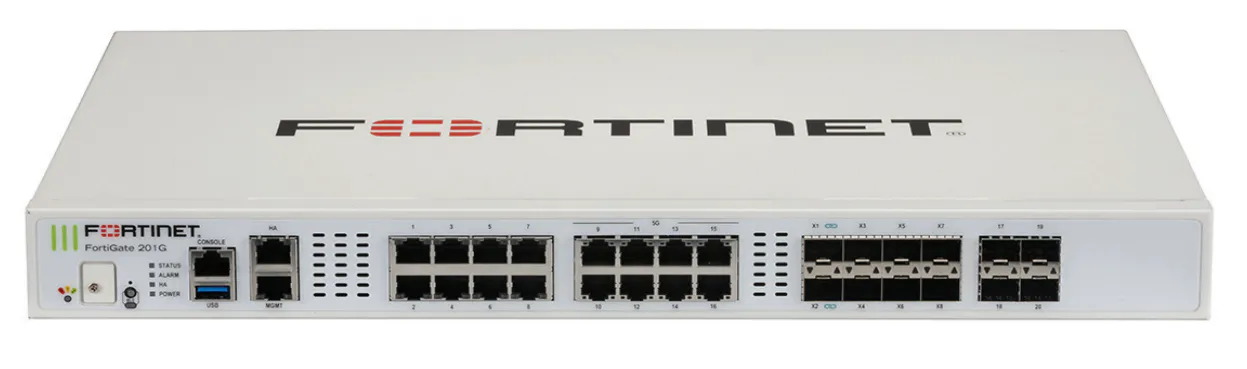

Fortinet FortiGate 201G Hardware Only

P/N:FG-201GSKU: FG-201GSwitchInfra item:7178Brand: Fortinet

Features

  • Published Fortinet specifications
  • Licensing and support boundary
  • Interfaces and form factor
Specifications

FG-201G technical overview

ModelFG-201G
BrandFortinet
Form FactorRack mount, 1RU
Dimensions44.45 x 432 x 380 mm
Weight14.33 lb / 6.5 kg
Operating Temperature0 to 40C
Power145 W / 176 W average/maximum
ConditionUsed
Max FortiAPs256 / 128
IPS Throughput9 Gbps
Product Series200G Series
NGFW Throughput7 Gbps
Internal Storage480GB onboard SSD
Operating SystemFortiOS
Firewall Policies10,000
Max FortiSwitches64
SSL-VPN Throughput3 Gbps
Concurrent Sessions11 Million
Firewall Throughput39 / 39 / 26.5 Gbps
IPsec VPN Throughput36 Gbps
Hardware AccelerationNP7Lite and CP10 hardware accelerated
New Sessions per Second400,000
SSL Inspection Throughput7 Gbps
Threat Protection Throughput6 Gbps
Application Control Throughput27.8 Gbps

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Fortinet FortiGate 201G Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
Features

Published Fortinet specifications

Interface and performance values are sourced from the official Fortinet series data sheet; actual results depend on configuration and enabled services.

Firewall Throughput: 39 / 39 / 26.5 GbpsIPS Throughput: 9 GbpsThreat Protection Throughput: 6 Gbps
Published Fortinet specifications

Licensing and support boundary

FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement. Availability varies by model, FortiOS release, region, and subscription tier.

Active entitlement requiredFortiOS release check requiredRegion and contract check required
Licensing and support boundary

Interfaces and form factor

Published hardware characteristics from the same official series data sheet. Verify the exact model and active service entitlements before deployment.

  • Interfaces: 10x GE RJ45 including 1x MGMT, 1x HA, and 8x switch ports; 8x 5GE RJ45; 4x GE SFP; 8x 10GE SFP+ slots
  • Form Factor: Rack mount, 1RU
  • Dimensions: 44.45 x 432 x 380 mm
