NETWORK HARDWARE

FG-900G

Fortinet FortiGate 900G Hardware Only

P/N:FG-900GSKU: FG-900GSwitchInfra item:7183Brand: Fortinet

Features

  • Published Fortinet specifications
  • Licensing and support boundary
  • Interfaces and form factor
Specifications

FG-900G technical overview

ModelFG-900G
BrandFortinet
Form FactorRack mount, 1RU
Dimensions44.45 x 432 x 380 mm
Weight15.98 lb / 7.25 kg
Operating Temperature0 to 45C
Power170 W / 313 W average/maximum
ConditionUsed
Max FortiAPs2048 / 1024
IPS Throughput42 Gbps
Product Series900G Series
NGFW Throughput31 Gbps
Internal StorageNone
Operating SystemFortiOS
Firewall Policies50,000
Max FortiSwitches196 (FortiOS 7.6.1+)
SSL-VPN Throughput10 Gbps
Concurrent Sessions28 Million
Firewall Throughput164 / 163 / 153 Gbps
IPsec VPN Throughput55 Gbps
Hardware AccelerationSPU NP7 and CP9 hardware accelerated
New Sessions per Second720,000
SSL Inspection Throughput16.7 Gbps
Threat Protection Throughput30 Gbps
Application Control Throughput74.8 Gbps

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Fortinet FortiGate 900G Hardware Only is documented in the corresponding Fortinet series data sheet. Published interface and performance values are shown below. FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement; verify the target model, FortiOS release, region, and contract before deployment.
Features

Published Fortinet specifications

Interface and performance values are sourced from the official Fortinet series data sheet; actual results depend on configuration and enabled services.

Firewall Throughput: 164 / 163 / 153 GbpsIPS Throughput: 42 GbpsThreat Protection Throughput: 30 Gbps
Published Fortinet specifications

Licensing and support boundary

FortiGuard security services, FortiCare support, and subscription-based features require an applicable active license or entitlement. Availability varies by model, FortiOS release, region, and subscription tier.

Active entitlement requiredFortiOS release check requiredRegion and contract check required
Licensing and support boundary

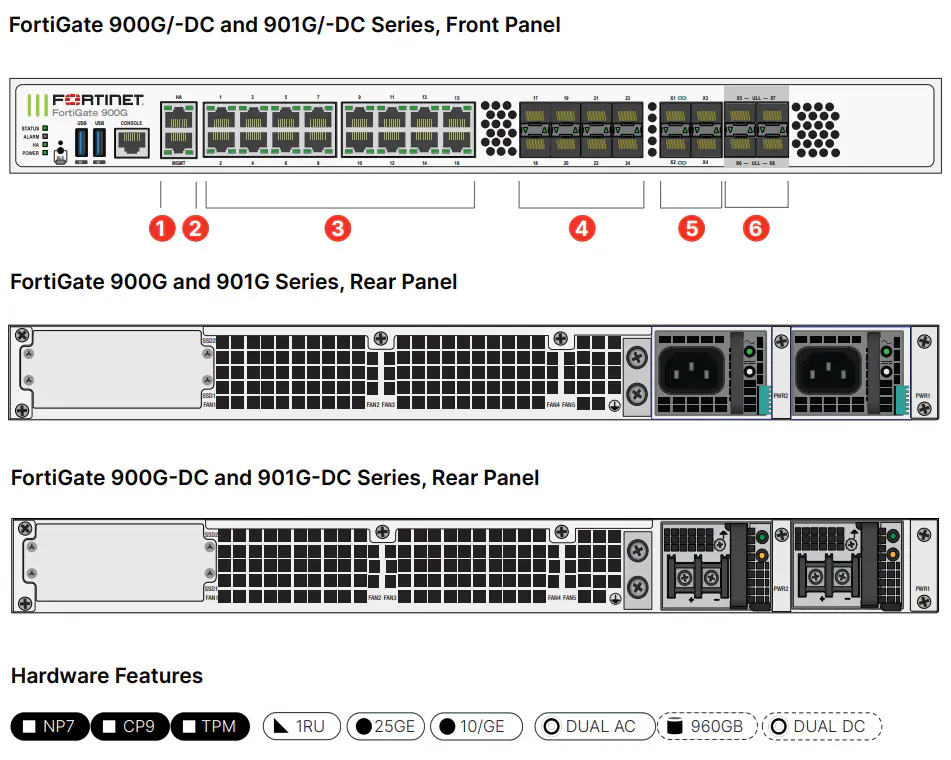

Interfaces and form factor

Published hardware characteristics from the same official series data sheet. Verify the exact model and active service entitlements before deployment.

  • Interfaces: 4x 25G SFP28 slots; 4x 10GE SFP+ slots; 17x GE RJ45 ports including 1x MGMT and 16x switch ports; 1x 2.5G HA port; 8x GE SFP slots
  • Form Factor: Rack mount, 1RU
  • Dimensions: 44.45 x 432 x 380 mm

Product questions & answers

Describe what you need. You can start without a confirmed quantity or host model.

Connectivity Solutions
Firewall deployment reference

Size FG-900G against the target interfaces, throughput, session scale, topology, FortiOS release, and active license entitlements before deployment.
