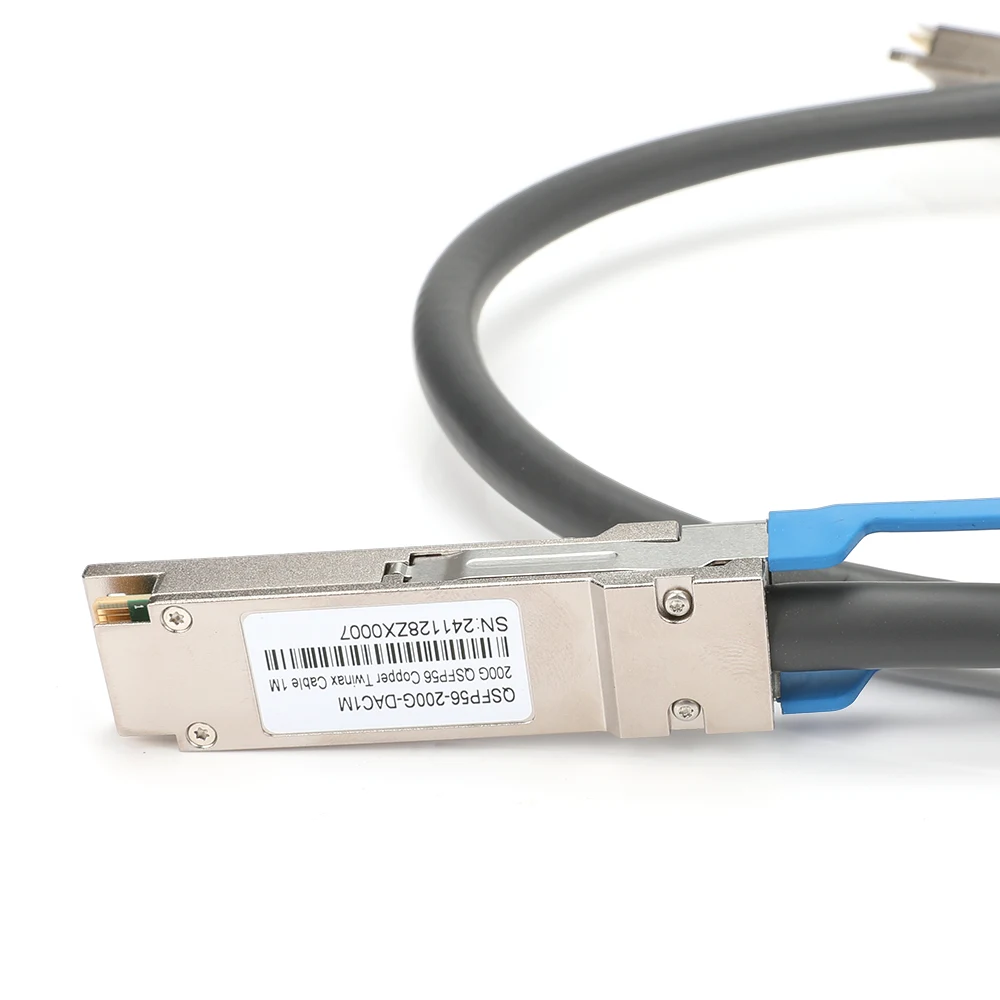

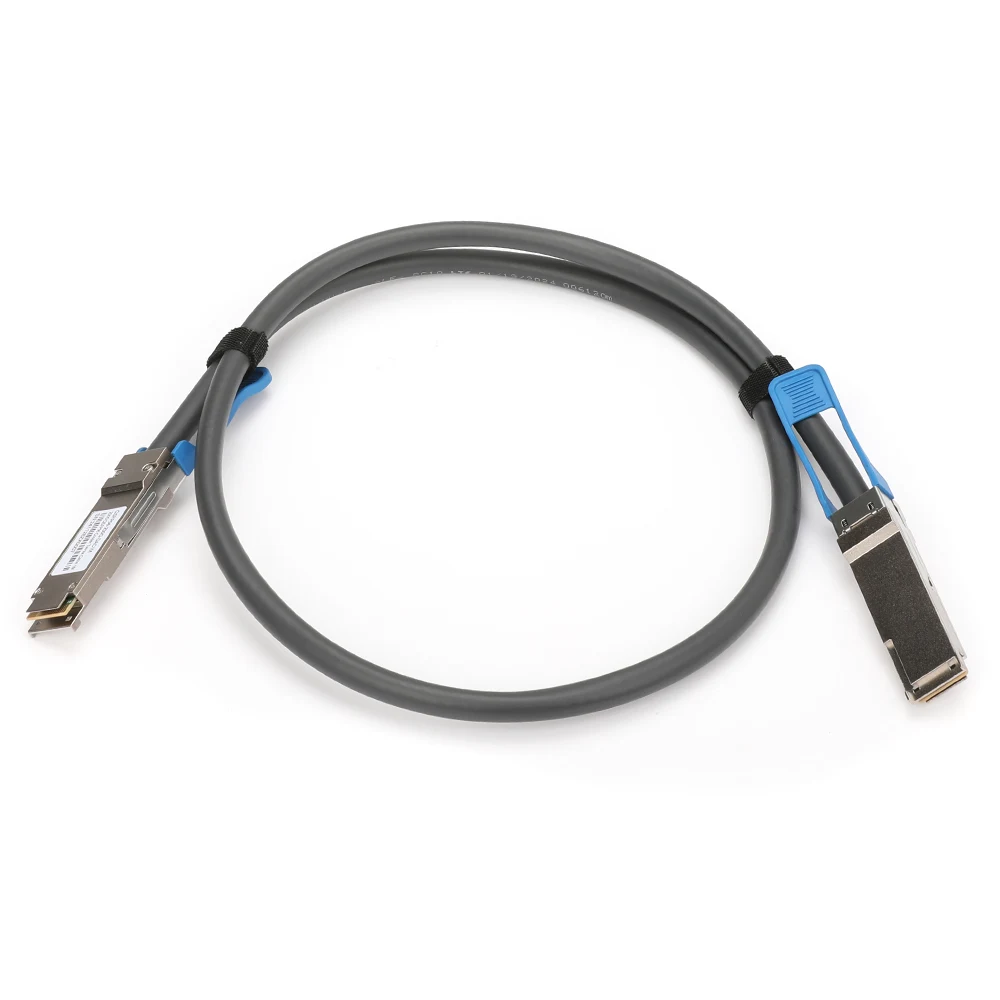

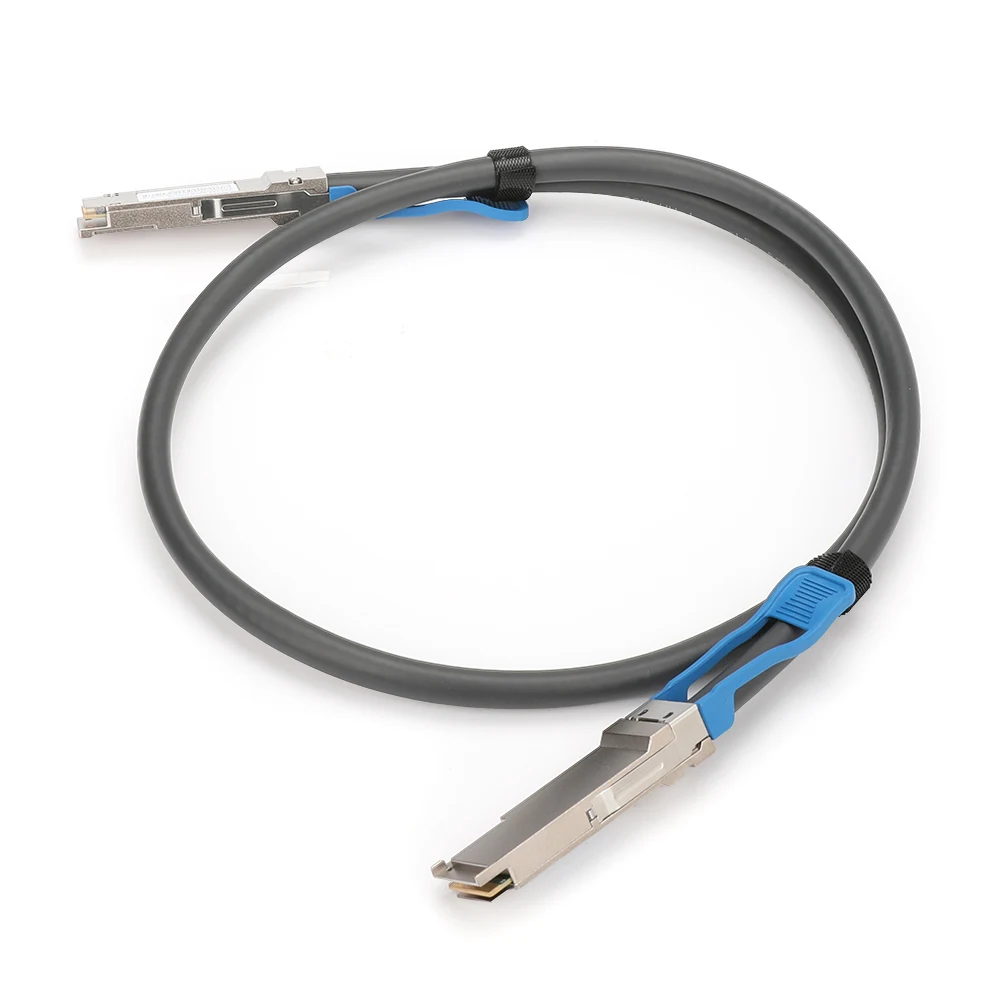

Product reference photograph. Cable length is defined by this listing; bends and routing in the photograph do not indicate length.
200G DAC Cable, QSFP56 to QSFP56, 1 m
Ask for price
In Stock
Delivery confirmed per order
Warranty confirmed per item
30-Day Returns
200 Gb/s1 mTwinax copper cableQSFP56
Product selection summary
optical transceiver Sourcing context
200G DAC Cable, QSFP56 to QSFP56, 1 m is listed on SwitchInfra as a optical transceiver for DAC/AOC/ACC/AEC Cables. Buyers can evaluate specifications, deployment fit, availability, and quote readiness before procurement.
Common use cases
- data center interconnects
- server-to-switch links
- high-speed optical or copper connectivity
- structured cabling
Key comparison points
- Form Factor: QSFP56
- Media: Twinax copper cable
- Cable Length: 1 m
- Data Rate: 200 Gb/s
- Model: CABLE-NC05
RFQ guidance
Use the cart or quote flow to confirm quantity, availability, pricing, and project requirements before purchase.
Description
200 Gb/s; QSFP56 → QSFP56; 1 m. For a 200G point-to-point QSFP56 connection.
Specifications
Cable selection and application
For a 200G point-to-point QSFP56 connection. The supplied family document lists a 1 m / 30 AWG construction for comparison; the saleable part number and protocol scope remain separate configuration decisions.
| Form Factor | QSFP56 |
|---|---|
| Media | Twinax copper cable |
| Cable Length | 1 m |
| Data Rate | 200 Gb/s |
| Model | CABLE-NC05 |
| Condition | New |
| Impedance | 90–110 Ω; typical100 Ω |
| Cable Type | DAC |
| Product Type | Passive DAC cable |
| End Connectors | QSFP56 → QSFP56 |
| Electrical Interface | Four data lanes; up to 56 Gb/s PAM4 per lane (source wording) |
