Best for
optics buyers comparing form factor, data rate, wavelength, reach, host compatibility, and link budget.
1 / 3

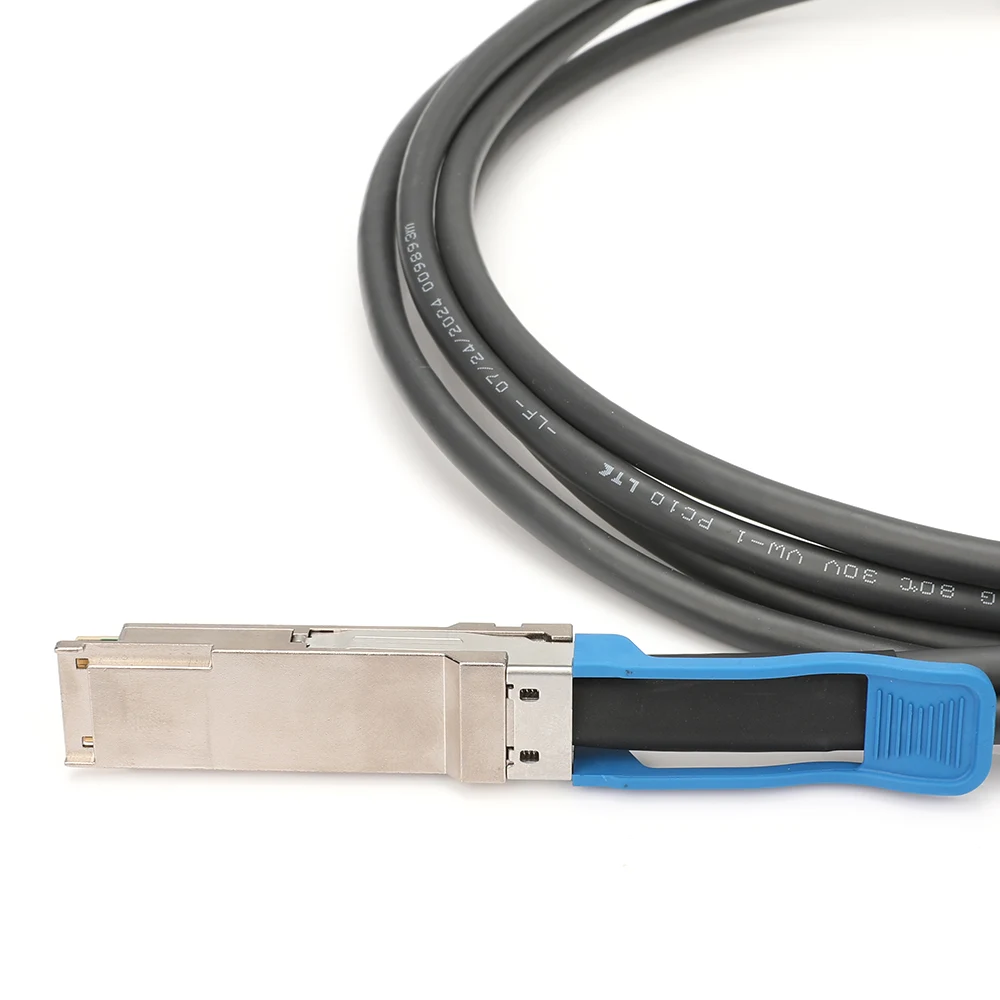

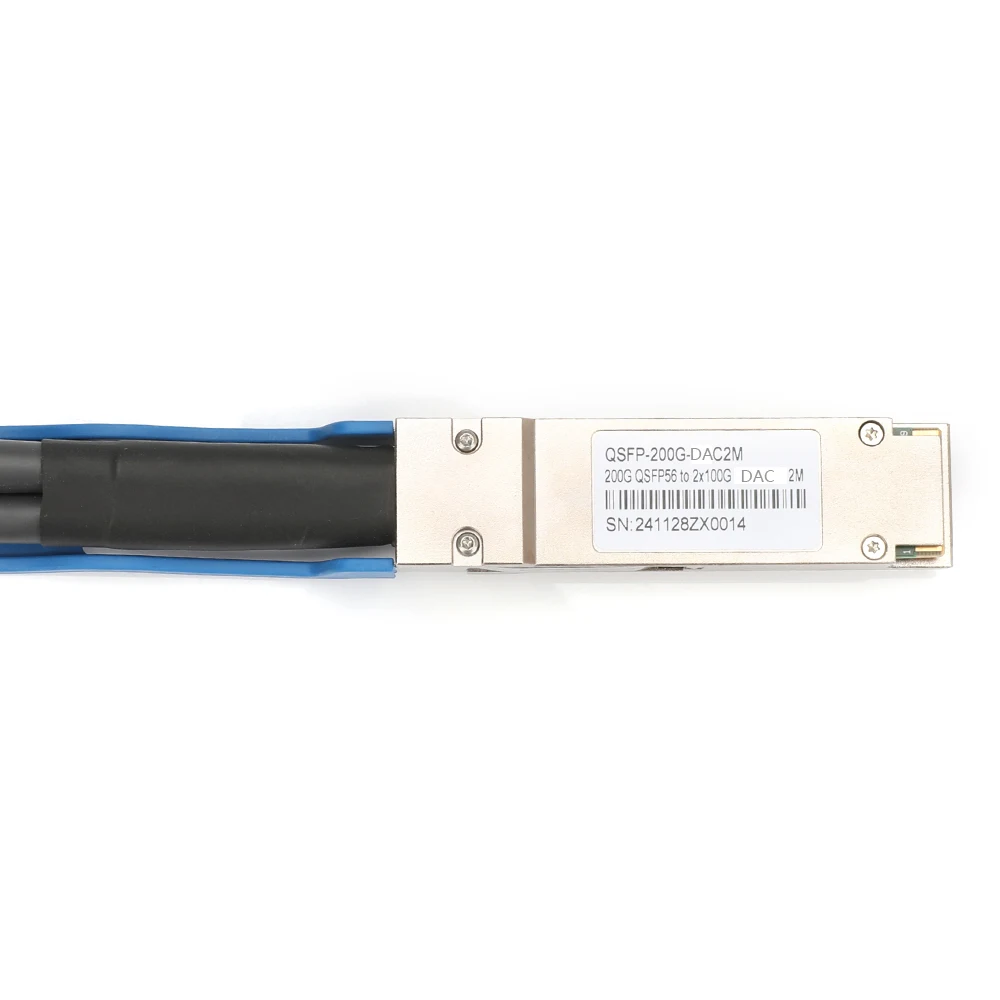

Product reference photograph. Cable length is defined by this listing; bends and routing in the photograph do not indicate length.
200G QSFP56 to 2x100G QSFP56 Passive DAC Splitter Cable, 2 m
Ask for price
In Stock
Delivery confirmed per order
Warranty confirmed per item
30-Day Returns
200 Gb/s2 mTwinax copper cableQSFP56
Product selection summary
optical transceiver Sourcing context
200G QSFP56 to 2x100G QSFP56 Passive DAC Splitter Cable, 2 m is listed on SwitchInfra as a optical transceiver for DAC/AOC/ACC/AEC Cables. Buyers can evaluate specifications, deployment fit, availability, and quote readiness before procurement.
Common use cases
- data center interconnects
- server-to-switch links
- high-speed optical or copper connectivity
- structured cabling
Key comparison points
- Form Factor: QSFP56
- Media: Twinax copper cable
- Cable Length: 2 m
- Data Rate: 200 Gb/s
- Model: CABLE-NC06
RFQ guidance
Use the cart or quote flow to confirm quantity, availability, pricing, and project requirements before purchase.
Description
Splits one 200G QSFP56 port into two 100G QSFP56 links over 2 m. Each child requires a two-lane 50G PAM4 host mode; a conventional four-lane 25G NRZ QSFP28 port is not an equivalent endpoint.
Specifications
Cable selection and application
Splits one 200G QSFP56 port into two 100G QSFP56 links over 2 m. Each child requires a two-lane 50G PAM4 host mode; a conventional four-lane 25G NRZ QSFP28 port is not an equivalent endpoint.
| Form Factor | QSFP56 |
|---|---|
| Media | Twinax copper cable |
| Cable Length | 2 m |
| Data Rate | 200 Gb/s |
| Model | CABLE-NC06 |
| Condition | New |
| Cable Type | DAC |
| Product Type | Passive DAC cable |
| End Connectors | QSFP56 → 2×QSFP56 (100G per end) |
| Electrical Interface | 4 × 50G PAM4 at the parent; 2 × 50G PAM4 per child |
