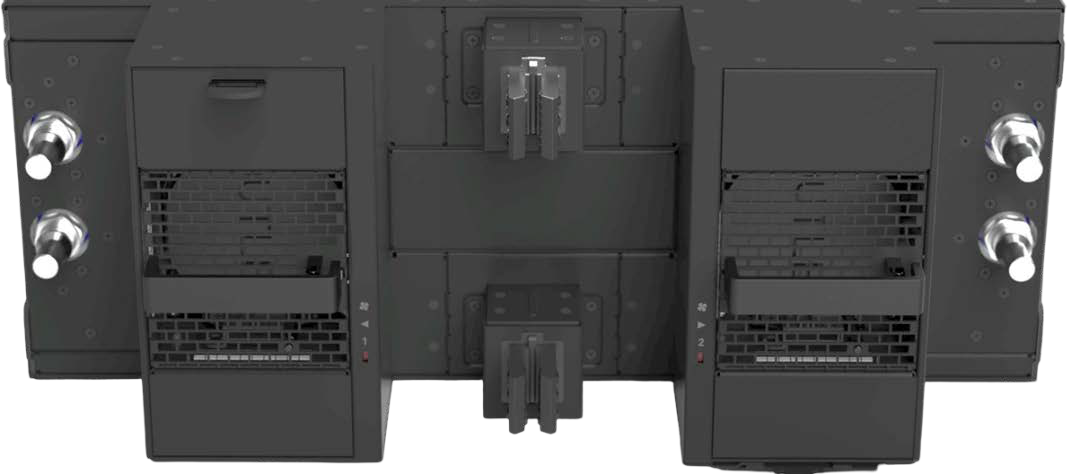

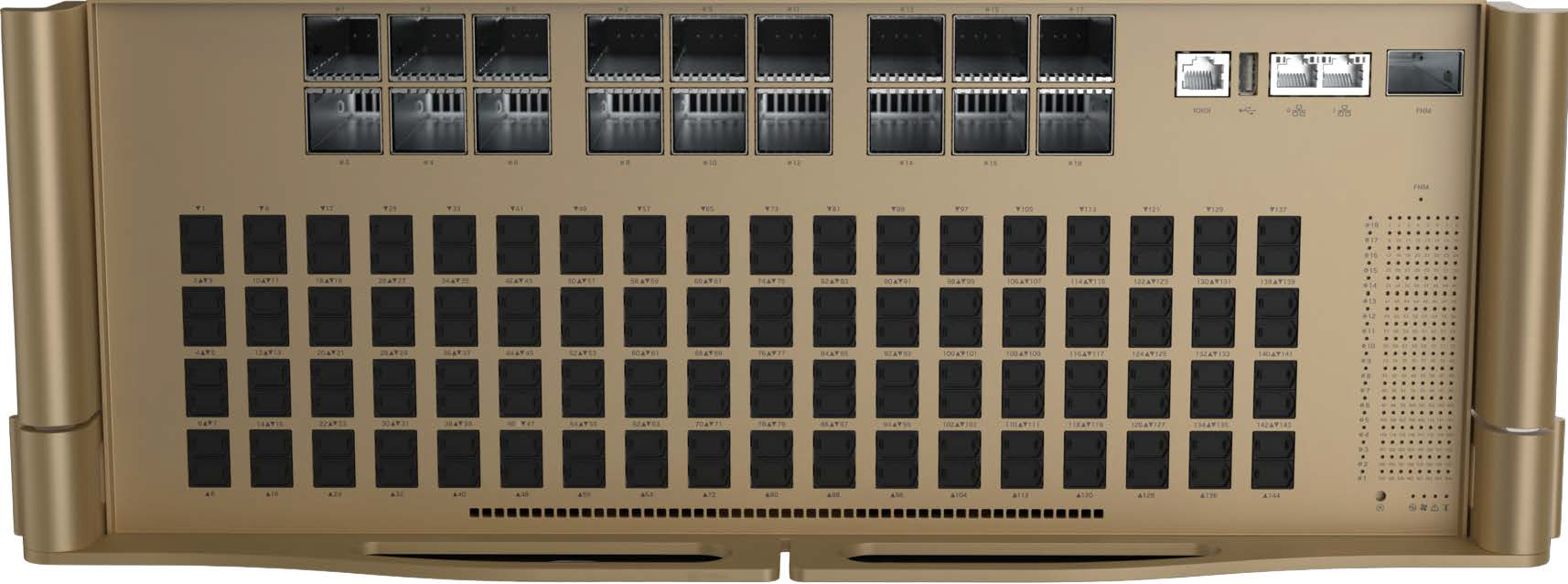

Manufacturer reference image. Included components follow the selected part number.

NETWORK SWITCH

920-9B36M-00MX-8S0

NVIDIA Q3452-LD Quantum-3 photonics switch

P/N:920-9B36M-00MX-8S0SKU: 920-9B36M-00MX-8S0SwitchInfra item:7765Brand: NVIDIA
Specifications
Form factor4U
imageNoteManufacturer reference image. Included components follow the selected part number.
ModelQ3452-LD
CoolingLiquid-cooled
Rail kitIncluded
Data ports144 × XDR
Part Number920-9B36M-00MX-8S0
Power input48 VDC
ArchitectureCo-packaged optics
Optical connections144 × MPO

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
A managed 4U Quantum-3 XDR co-packaged-optics switch with 144 ports presented through 144 MPO connections. The owner-confirmed configuration uses 48 VDC power, liquid cooling and an included rail kit.

Product questions & answers

Is an external laser source a conventional pluggable transceiver?

NVIDIA documents ELS components separately for its photonics switch systems. Use the switch-specific ELS order code and service procedure; a conventional OSFP transceiver is not established as a substitute.

What defines the Q3452-LD configuration in this catalog?

The owner-confirmed Q3452-LD entry specifies a managed 4U Quantum-3 XDR CPO switch with 144 MPO connections, 48 VDC power, liquid cooling and a rail kit. Public Q3450-LD service materials remain related-family guidance, not an exact model substitution.

Does a public ordering or compatibility entry prove stock and delivery?

No. Record the manufacturer’s published lifecycle wording separately from commercial availability. Stock, lead time, software entitlement, support and warranty require a current supplier quote.

What is the specified configuration of 920-9B36M-00MX-8S0?

NVIDIA Quantum-3 based XDR InfiniBand Switch, Q3452-LD, 4U Co-Packaged Optics, 144 XDR Ports over 144 MPOs, 48 VDC, Standard Depth, Managed, Liquid Cooled, Rail Kit.
