ConnectX-6 Dx Card technical selection Q&A
Owner-confirmed and documentation-backed questions with explicit variant applicability and source boundaries.
These questions were prepared for technical evaluation from cited documentation. They are not a measured list of frequently asked customer questions. The applicability line belongs to each answer; do not transfer a statement between order-code, firmware, cooling, length, form-factor or crypto variants.
The products listed below are the applicable catalog references. Answers use owner-confirmed manufacturer-origin product data, scoped public documentation, or explicitly stated engineering guidance. Genuine conflicting values are qualified individually.
Is this DSFP or QSFP56?
Applicable catalog candidates: 900-9X675-0076-MB0.
The exact-model specifications and ordering table specify dual DSFP. The general introduction overview conflicts; confirm the exact label and connector before purchase.
Public references: NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Specifications | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Introduction | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Interfaces | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual.
Are crypto and secure boot enabled?
Applicable catalog candidates: 900-9X675-0076-MB0.
The exact-model section says crypto disabled and secure boot enabled. Do not infer crypto from another ConnectX-6 Dx OCP variant.
Public references: NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Specifications | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Introduction | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Interfaces | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual.
Which form factor and bracket are required?
Applicable catalog candidates: 900-9X675-0076-MB0.
OCP 3.0 SFF, 115 x 76 mm, with thumbscrew pull-tab retention. It is not a conventional PCIe stand-up card.
Public references: NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Specifications | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Introduction | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Interfaces | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual.
Is Multi-Host automatically available?
Applicable catalog candidates: 900-9X675-0076-MB0.
The SKU is specified as Multi-Host/Socket Direct capable, but the OCP baseboard and PCIe bifurcation determine the active host configuration.
Public references: NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Specifications | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Introduction | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Interfaces | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual.
What does the power figure mean?
Applicable catalog candidates: 900-9X675-0076-MB0.
With passive cables, NVIDIA lists 19 W typical active power under ATIS traffic load and 26.6 W maximum active power. Optics, standby mode and airflow must be assessed separately.
Public references: NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Specifications | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Introduction | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Interfaces | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual.
Can the family picture prove the delivered connector?
Applicable catalog candidates: 900-9X675-0076-MB0.
No. A generic OCP family illustration is insufficient to authenticate the DSFP variant. Obtain a label and connector photograph of the actual unit.
Public references: NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Specifications | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Introduction | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual, Interfaces | NVIDIA ConnectX-6 Dx Ethernet Adapter Cards for OCP Spec 3.0 User Manual.
Availability is on request. Sales provides the USD quotation after the exact configuration is confirmed. No stock, condition or delivery promise is made here.

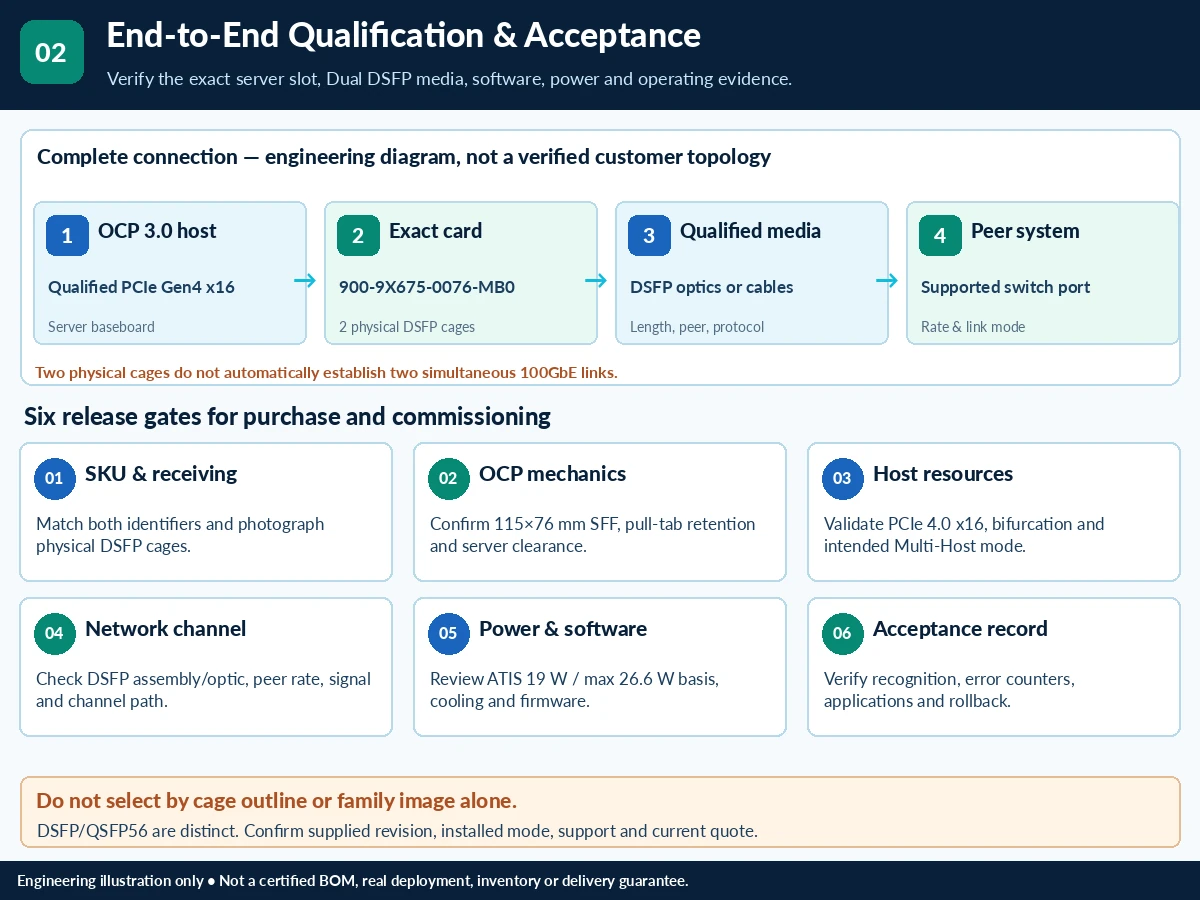

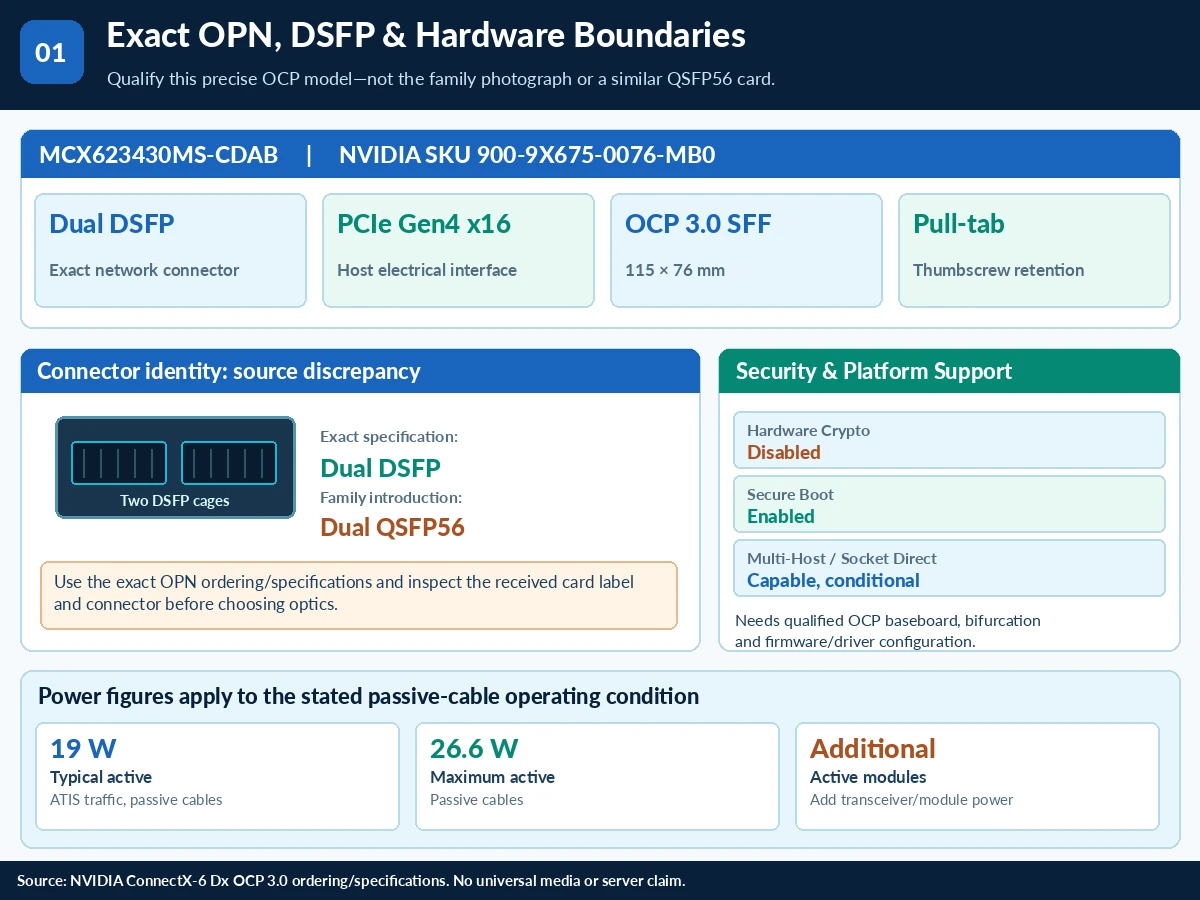

Technical illustrations
