OPTICAL TRANSCEIVER

CPAK-100G-LR4

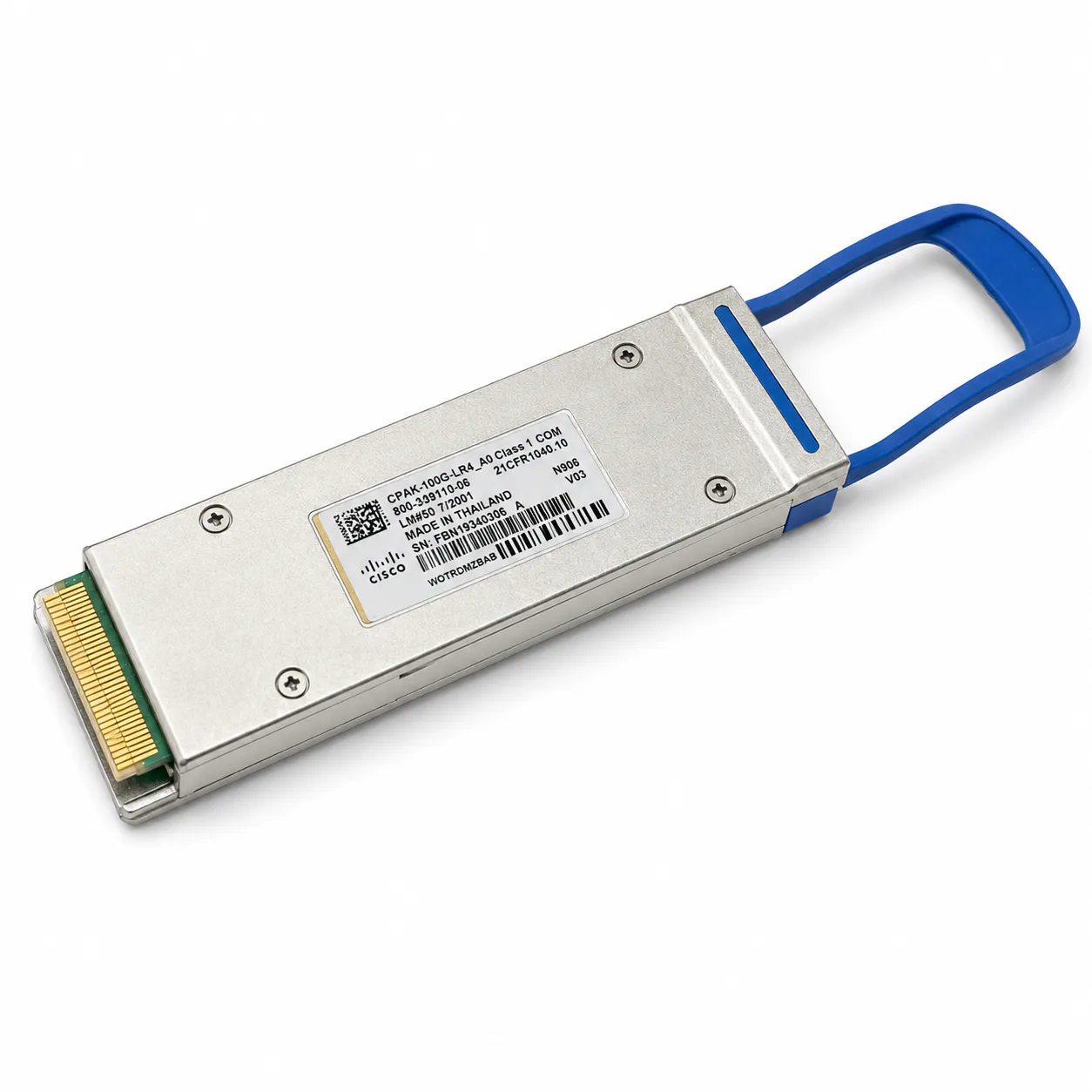

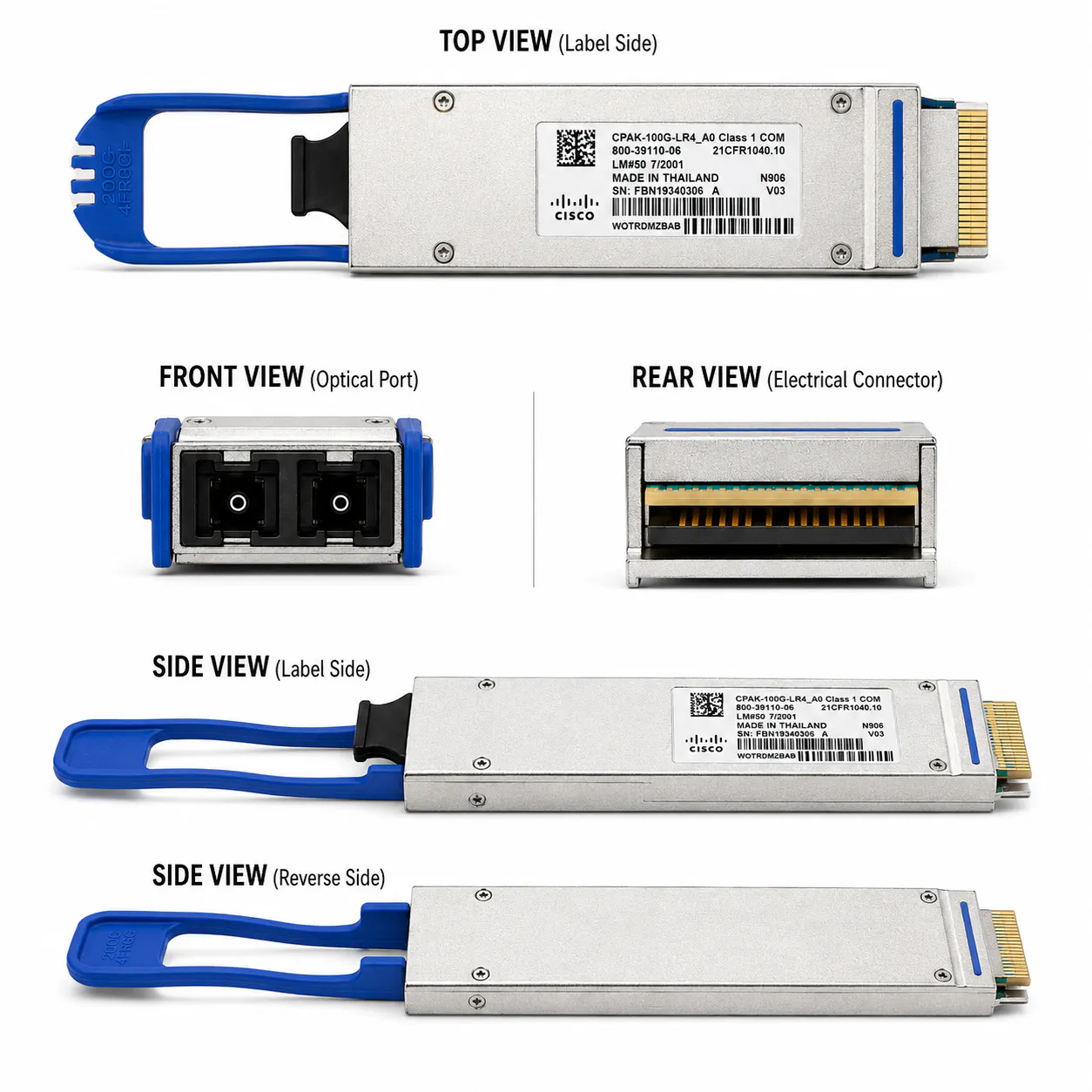

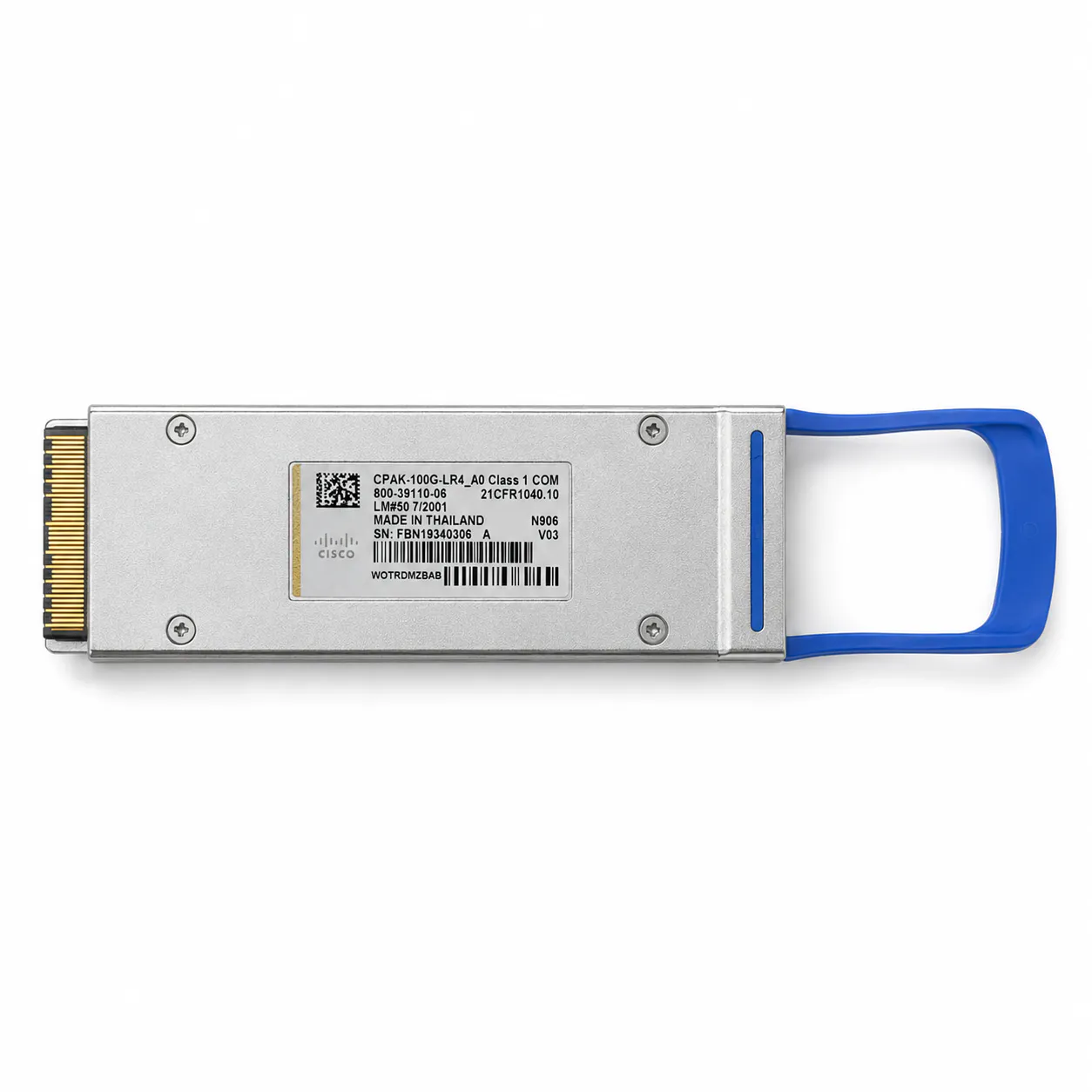

Cisco CPAK-100G-LR4 100G CPAK LR4 Optical Transceiver (Used) — Gold-wire label

P/N:CPAK-100G-LR4SKU: CPAK-100G-LR4SwitchInfra item:7198Brand: Cisco
Specifications

CPAK-100G-LR4 technical overview

Form FactorCPAK
Wavelengthfour LAN-WDM lanes spanning 1294.53 to 1310.19 nm
ConnectorSC officially supported; revision 09 or later has native LC plus removable LC-to-SC adapter
MediaG.652 duplex single-mode fiber
BrandCisco
ModelCPAK-100G-LR4
Powerless than 8.0 W maximum at 70C
Reachup to 10 km over G.652 duplex SMF; IEEE minimum link length 2 m
ConditionUsed
Data Rate100G
ComplianceIEEE 802.3ba; GR-20-CORE, GR-326-CORE and GR-1435-CORE
Label TypeGold-wire label
Part NumberCPAK-100G-LR4
Optical Standard100GBASE-LR4
Operating Temperature0 to 70C
Required FEC and breakout mode1x100G; host FEC is required when operating in OTN mode

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
Cisco CPAK-100G-LR4 is an optical module with specifications verified against an official exact part-number source. Host platform, firmware, cabling, FEC, condition, and warranty still require order-level confirmation.
Features

Product specifications

Cisco CPAK-100G-LR4 is an optical module with specifications verified against an official exact part-number source. Host platform, firmware, cabling, FEC, condition, and warranty still require order-level confirmation.

  • Reach: up to 10 km over G.652 duplex SMF; IEEE minimum link length 2 m
  • Data Rate: 100G
  • Form Factor: CPAK
  • Optical Standard: 100GBASE-LR4
