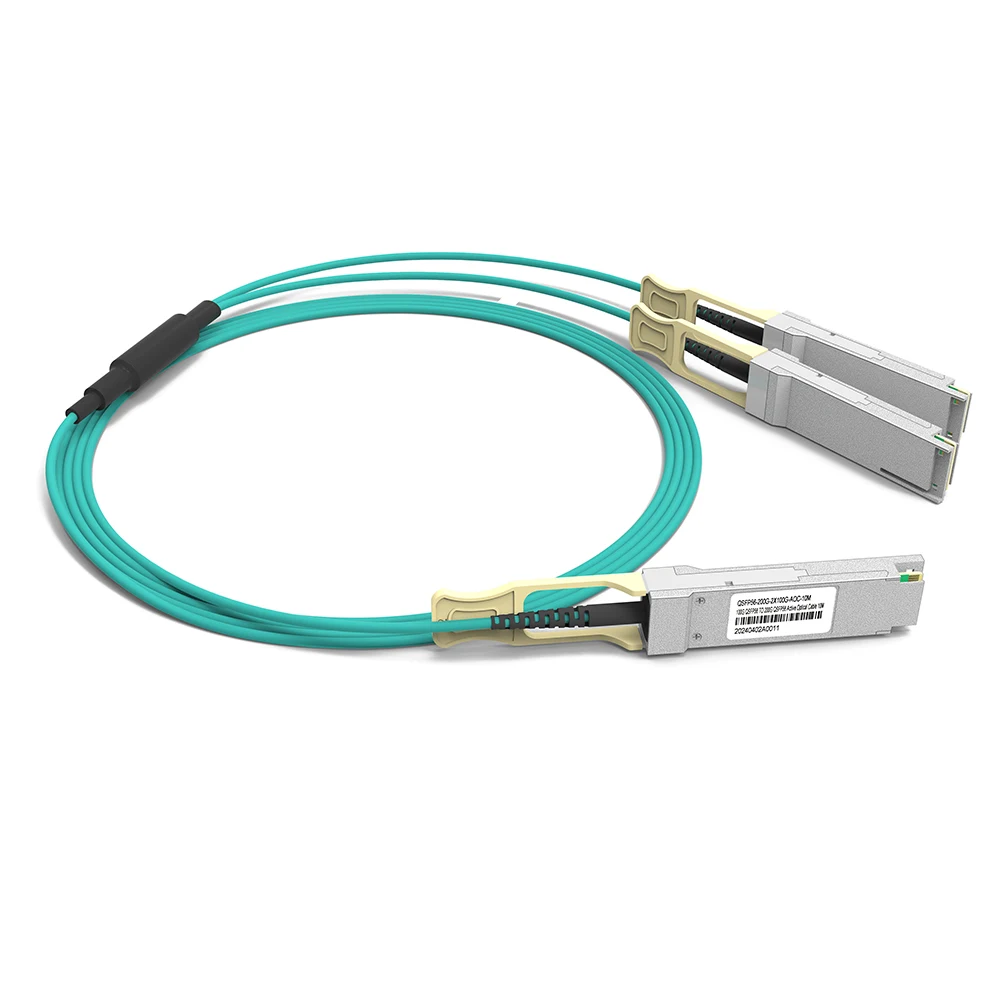

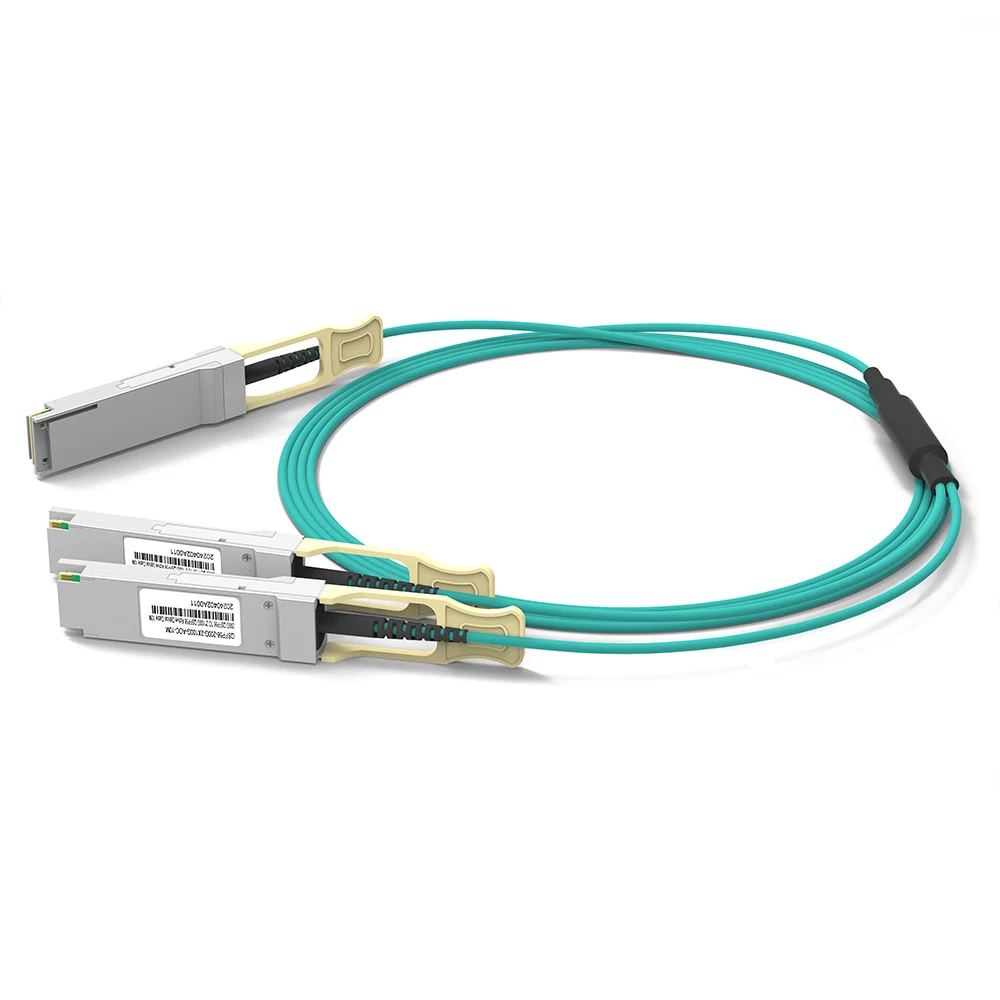

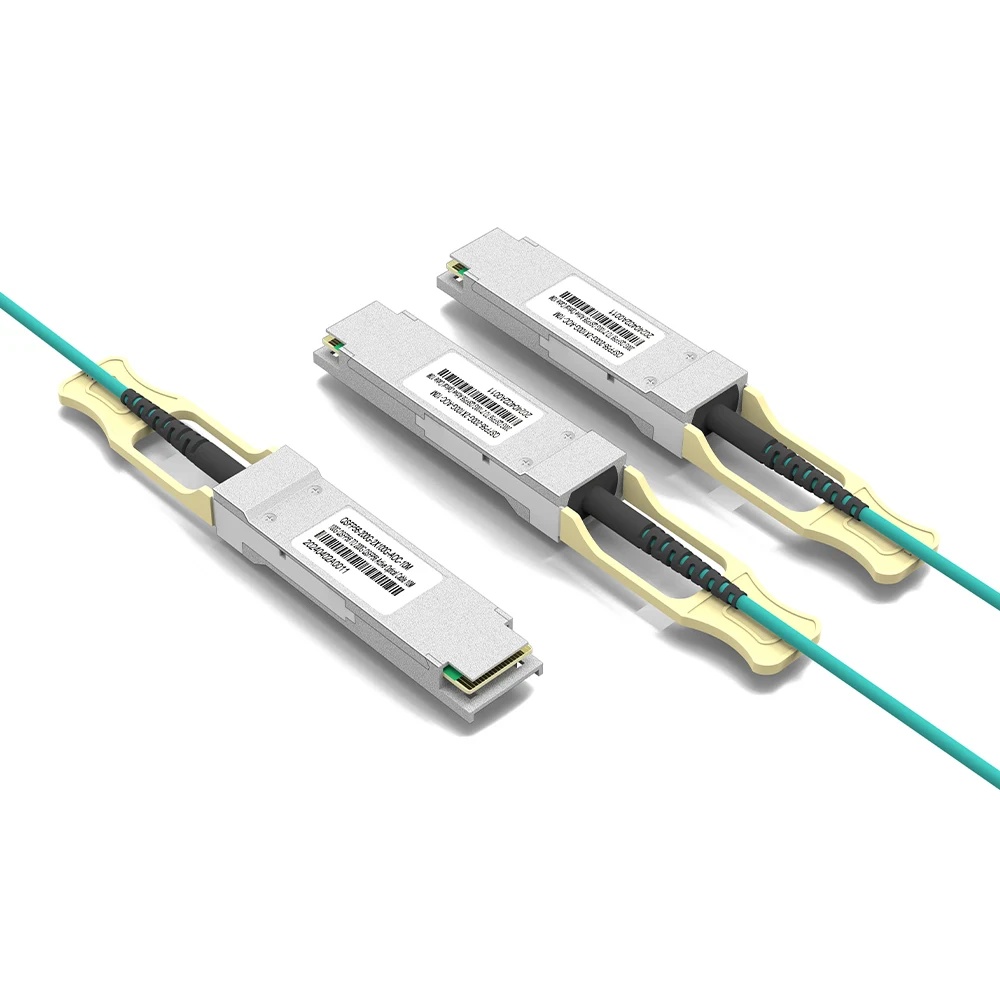

Product reference photograph. Cable length is defined by this listing; bends and routing in the photograph do not indicate length.
200G to 2 × 100G AOC Cable, QSFP56 to 2 × QSFP56; 100G per child, 10 m
Ask for price
In Stock
Delivery confirmed per order
Warranty confirmed per item
30-Day Returns
200 Gb/s10 mOptical fiberQSFP56
Product selection summary
optical transceiver Sourcing context
200G to 2 × 100G AOC Cable, QSFP56 to 2 × QSFP56; 100G per child, 10 m is listed on SwitchInfra as a optical transceiver for DAC/AOC/ACC/AEC Cables. Buyers can evaluate specifications, deployment fit, availability, and quote readiness before procurement.
Common use cases
- data center interconnects
- server-to-switch links
- high-speed optical or copper connectivity
- structured cabling
Key comparison points
- Form Factor: QSFP56
- Media: Optical fiber
- Cable Length: 10 m
- Minimum Bend Radius: 30 mm; the document does not distinguish static and dynamic limits
- Data Rate: 200 Gb/s
RFQ guidance
Use the cart or quote flow to confirm quantity, availability, pricing, and project requirements before purchase.
Description
200 Gb/s; QSFP56 → 2×QSFP56 (100G per end); 10 m. For a 10 m cabling requirement with a QSFP56 parent and two 100G QSFP56 endpoints.
Specifications
Cable selection and application
For a 10 m cabling requirement with a QSFP56 parent and two 100G QSFP56 endpoints. Verify each child-side lane mode, then specify the split location and complete order configuration.
| Form Factor | QSFP56 |
|---|---|
| Media | Optical fiber |
| Cable Length | 10 m |
| Minimum Bend Radius | 30 mm; the document does not distinguish static and dynamic limits |
| Data Rate | 200 Gb/s |
| Operating Temperature | Case temperature: 0–70 °C |
| Model | CABLE-NC17 |
| Condition | New |
| Cable Type | AOC |
| Wavelength | 850 nm |
| Power Supply | 3.14–3.47 V; typical3.3 V |
| Product Type | Active optical cable (AOC) |
| Cable Diameter | 3±0.2 mm |
| End Connectors | QSFP56 → 2×QSFP56 (100G per end) |
| Storage Temperature | −5–75 °C |
