Best for
optics buyers comparing form factor, data rate, wavelength, reach, host compatibility, and link budget.
1 / 3

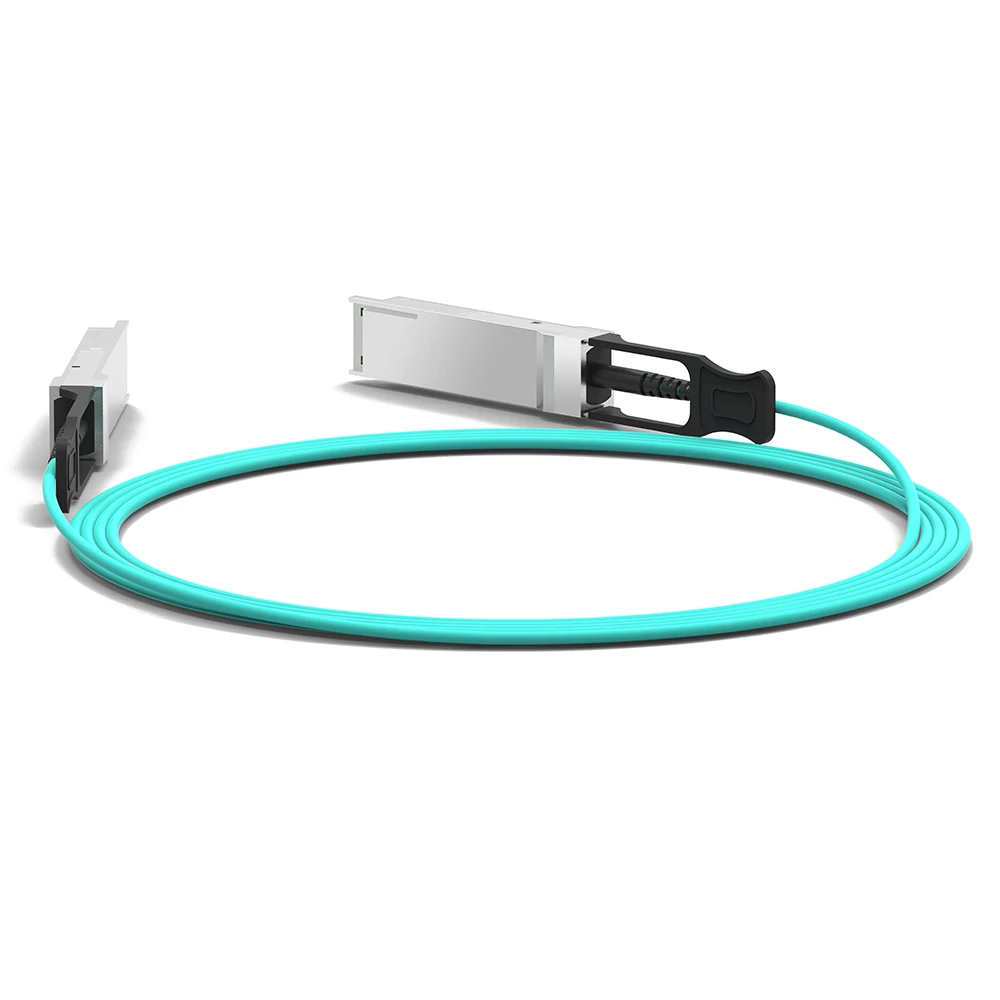

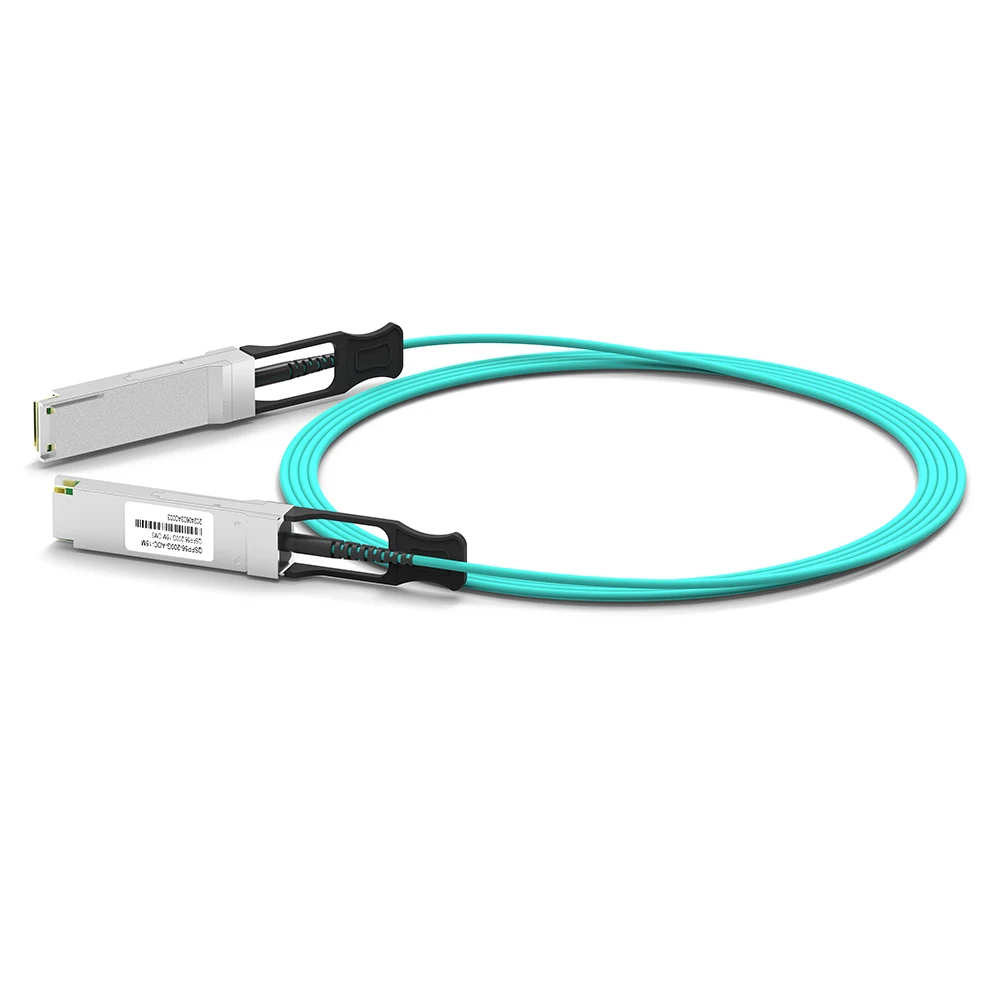

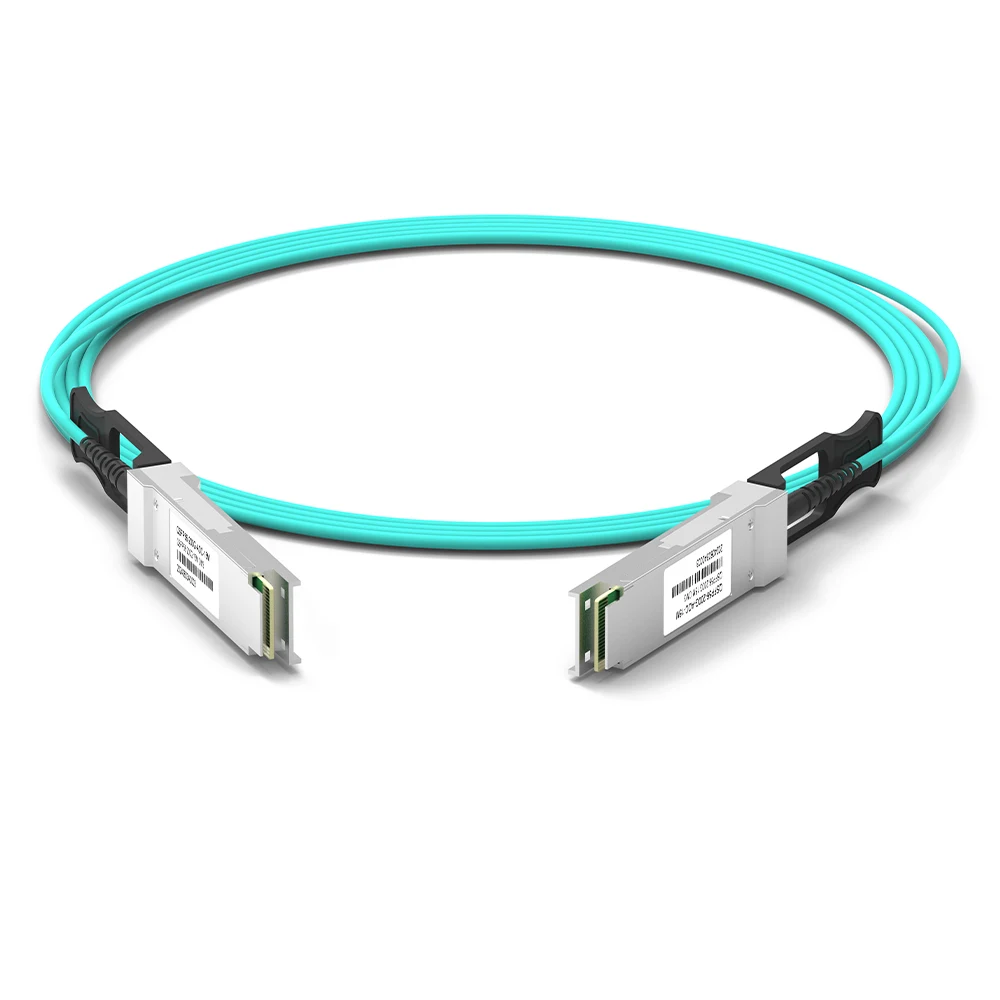

Product reference photograph. Cable length is defined by this listing; bends and routing in the photograph do not indicate length.
200G AOC Cable, QSFP56 to QSFP56, 15 m
Ask for price
In Stock
Delivery confirmed per order
Warranty confirmed per item
30-Day Returns
200 Gb/s15 mOptical fiberQSFP56
Product selection summary
optical transceiver Sourcing context
200G AOC Cable, QSFP56 to QSFP56, 15 m is listed on SwitchInfra as a optical transceiver for DAC/AOC/ACC/AEC Cables. Buyers can evaluate specifications, deployment fit, availability, and quote readiness before procurement.
Common use cases
- data center interconnects
- server-to-switch links
- high-speed optical or copper connectivity
- structured cabling
Key comparison points
- Form Factor: QSFP56
- Media: Optical fiber
- Cable Length: 15 m
- Data Rate: 200 Gb/s
- Operating Temperature: Case temperature: 0–70 °C
RFQ guidance
Use the cart or quote flow to confirm quantity, availability, pricing, and project requirements before purchase.
Description
200 Gb/s; QSFP56 → QSFP56; 15 m. For an integrated 200G optical link between QSFP56 interfaces.
Specifications
Cable selection and application
For an integrated 200G optical link between QSFP56 interfaces. Keep the labelled 15 m sample length distinct from the family specification and the final 15 m order code.
| Form Factor | QSFP56 |
|---|---|
| Media | Optical fiber |
| Cable Length | 15 m |
| Data Rate | 200 Gb/s |
| Operating Temperature | Case temperature: 0–70 °C |
| Model | CABLE-NC18 |
| Condition | New |
| Cable Type | AOC |
| Modulation | PAM4; 26.5625 GBd per lane |
| Wavelength | 850 nm typical; 840–860 nm range |
| Power Supply | 3.14–3.46 V; typical3.3 V |
| Product Type | Active optical cable (AOC) |
| End Connectors | QSFP56 → QSFP56 |
| Operating Humidity | 10–90% |
| Storage Temperature | −40–85 °C |
| Electrical Interface | 4×53.125 Gb/s (200GAUI-4) |
