OPTICAL TRANSCEIVER

AFCT-91DRPHZ-AZ6

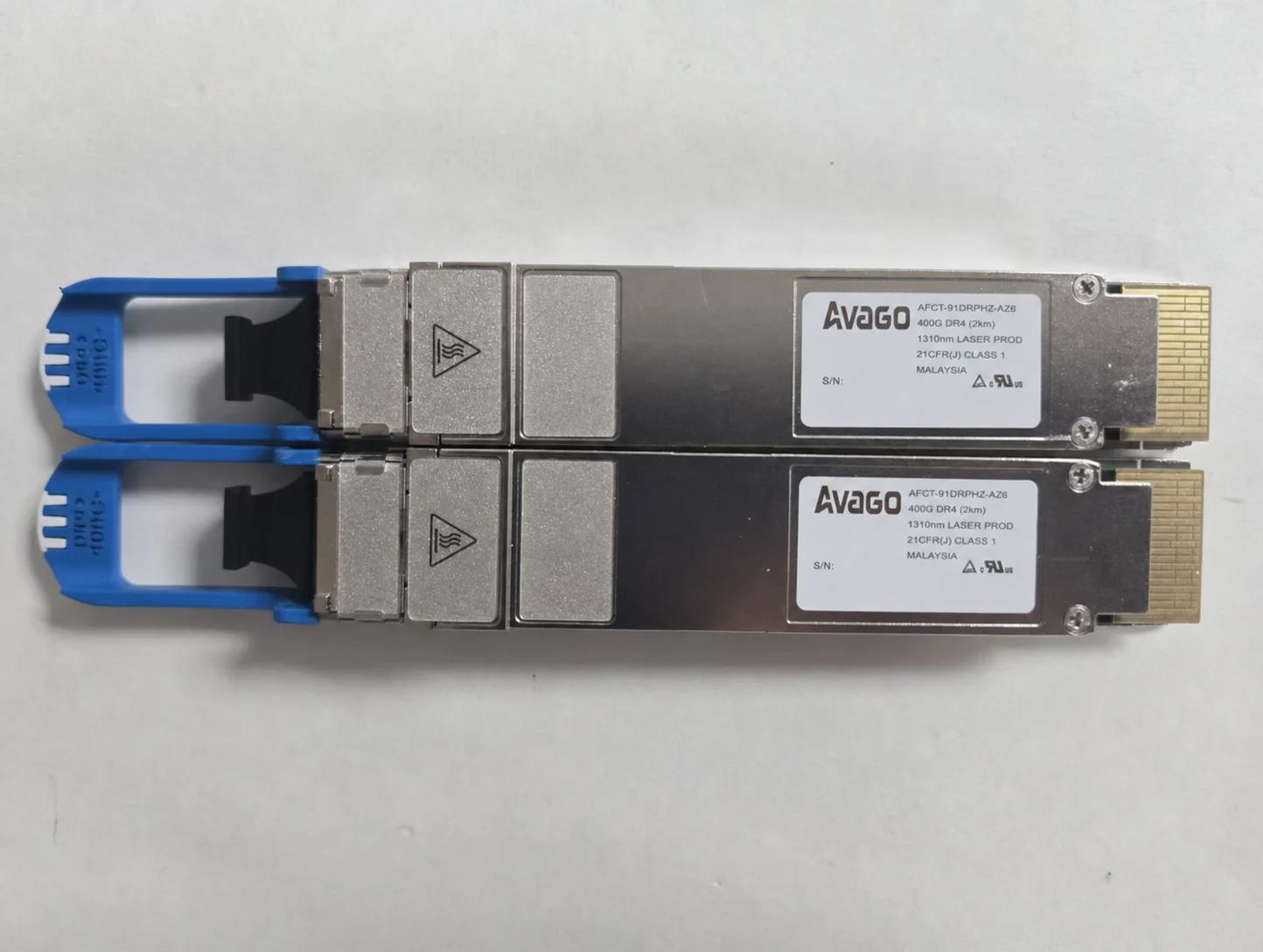

Avago AFCT-91DRPHZ-AZ6 400G QSFP-DD DR4 Optical Transceiver (Used)

P/N:AFCT-91DRPHZ-AZ6SKU: AFCT-91DRPHZ-AZ6SwitchInfra item:7196Brand: Avago
Specifications

AFCT-91DRPHZ-AZ6 technical overview

Form FactorQSFP-DD
Wavelength1310 nm
ConnectorMPO-12 APC (4 Tx + 4 Rx; catalog-owner specification)
MediaSingle-mode fiber
BrandAvago
ModelAFCT-91DRPHZ-AZ6
Reach2 km
ConditionUsed
Data Rate400G
ModulationPAM4
Part NumberAFCT-91DRPHZ-AZ6
Power Supply3.3 V nominal (AFCT-91DRPHZ reference)
Optical StandardDR4 (product label)
Lane Architecture8 x 53.125 Gb/s electrical to 4 x 106.25 Gb/s optical (AFCT-91DRPHZ reference)
Power Consumption12 W maximum (AFCT-91DRPHZ reference)
Transmit Average Power-2.4 to +4 dBm per lane (AFCT-91DRPHZ reference; informative minimum)
Operating Case Temperature0 to 70 C (AFCT-91DRPHZ reference)
Required FEC and breakout modeHost-side KP FEC (400GAUI-8; AFCT-91DRPHZ reference)

Before you order

  • Confirm the exact SKU, part number, specification option and quantity.
  • Confirm the host platform, port, electrical interface and firmware requirements.
  • Confirm availability, lead time, destination and applicable service terms before payment.
Description
400G QSFP-DD DR4 optical module, 1310 nm, 2 km single-mode reach. The complete AZ6 identifier is retained; additional electrical and optical limits below are AFCT-91DRPHZ base-part references.
Features

Product specifications

400G QSFP-DD DR4 optical module, 1310 nm, 2 km single-mode reach. The complete AZ6 identifier is retained; additional electrical and optical limits below are AFCT-91DRPHZ base-part references.

  • Data Rate: 400G
  • Form Factor: QSFP-DD
  • Optical Standard: DR4 (product label)
